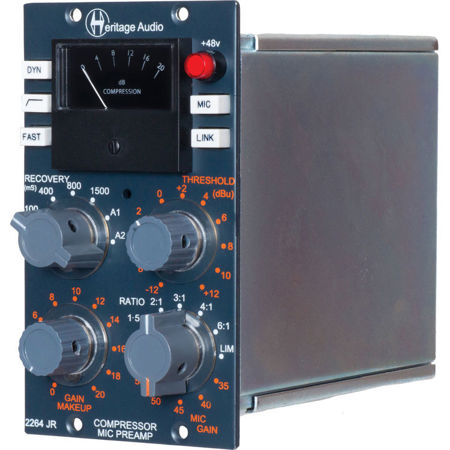

Heritage Audio 500 Series 2264JR Compressor and Microphone Preamplifier

SKU: HA2264JR MFR: HA2264JR
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this 500 Series microphone preamplifier.
  • Achieve vintage sound with low noise and high gain on mic/line inputs.
  • Dial in your ideal tone using the preamp's versatile impedance control.
  • Get warm, punchy sound; perfect for vocals, drums, and more sources.
  • Integrate seamlessly into your studio with balanced inputs/outputs.
  • Enjoy robust build quality ensuring years of reliable studio performance.
See More Product Details
Special Order?Estimated to Ship: 08/12/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Heritage Audio 2264JR Specifications

  • Microphone input impedance

    1200Ohms, Input is transformer balanced and floating

  • Line input impedance

    10KOhms bridging, transformer balanced and floating

  • Output impedance

    Less than 75 Ohms, transformer balanced and floating, 600 Ohms terminated

  • Maximum output

    Greater than +26dBm , 600 Ohms terminated

  • THD

    Less than 0.025% at 1Khz, Less than 0.05% at 100Hz

  • Frequency response

    20Hz (+0.3dB) to 20Khz (-0.2dB)

  • Maximum Microphone Gain

    60dB

  • Maximum Line Gain

    20dB

  • Maximum Power consumption

    Less than 110 mA at +-16VDC

  • UPC Code

    702877907153

About Heritage Audio 2264JR

Where professional audio recording and production are concerned, the Heritage Audio 500 Series 2264JR Compressor and Microphone Preamplifier stands out as a durable, high-quality, and reliable solution. This versatile device is a 2-slot 500 series unit that seamlessly combines the functions of a compressor, limiter, and preamplifier, making it an ideal choice for musicians, producers, and engineers who demand excellence in their audio equipment.

The 2264JR mirrors the key components and schematics found in the classic Heritage Audio 2264E compressor, ensuring the same level of superior performance. When compression isn't required, a fully-featured 60dB 1073 microphone preamplifier is at your disposal, complete with phantom power for condenser microphones.

This unit boasts a fully discrete Class A audio path, driven by 2n3055 and balanced by a transformer, ensuring pristine audio quality. All controls are stepped on rotary switches, offering high precision and easy recall of your preferred settings.

To enhance its functionality, the 2264JR includes a high-pass filter on the sidechain, designed to prevent bass signals from dominating the compression. It also features discrete inputs for Compression/Line amp (Left slot input) and microphone (Right slot input), with the output in both cases on the Left slot output.

In essence, the Heritage Audio 500 Series 2264JR Compressor and Microphone Preamplifier is a testament to the brand's commitment to producing versatile, reliable, and high-quality audio equipment.

Heritage Audio 2264JR Features

  • Gain Reduction Meter - Shows the compression amount up to 20dB
  • DYN switch - Enables compression functions
  • High Pass switch - Enables high pass filter on the sidechain circuit
  • MIC switch - Enables Mic input and overrides Compression / Line input functions
  • Compress Recovery switch - Switches between 6 time constant options, 100ms, 400ms, 800ms, 1500ms, Auto1 (100ms on peaks, 2secs on program material) and Auto2 (50ms on peaks, 5secs on program)
  • Compress Threshold Stepped control - Sets the minimum level at what compression happens, from +12dBU down to -12dBm in variable "smart" steps)
  • Compress Ratio Switch - Allows the user to choose between 5 different compression ratios, 1.5, 2, 3, 4and 6 - 1 and a LIM option
  • MIC Gain Stepped control - In 5dB steps from 35 to 60dB
  • Gain Makeup Stepped control - In 2dB steps from 0 to 20dB
  • LINK switch - Allows the module to be linked to compression bus

Key Features

  • Capture pristine audio with this 500 Series microphone preamplifier.
  • Achieve vintage sound with low noise and high gain on mic/line inputs.
  • Dial in your ideal tone using the preamp's versatile impedance control.
  • Get warm, punchy sound; perfect for vocals, drums, and more sources.
  • Integrate seamlessly into your studio with balanced inputs/outputs.
  • Enjoy robust build quality ensuring years of reliable studio performance.

What's in the box:

  • Heritage Audio 500 Series 2264JR Compressor and Microphone Preamplifier
  • Heritage Audio 1 Year Parts & Labor Warranty
