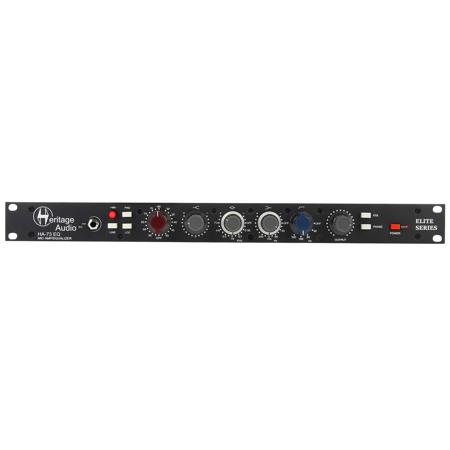

Heritage Audio Elite Series HA-73EQ Single-Channel 1RU Full Rack Microphone Preamplifier with EQ

SKU: HAHA73EQ MFR: HA73EQ
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this microphone preamplifier, ensuring low noise recordings.
  • Dial in the perfect tone using the versatile EQ, ideal for shaping vocals and instruments.
  • Achieve optimal gain range for any source, from delicate vocals to powerful drums.
  • Fine-tune your sound with impedance control, matching the preamp to your microphones.
  • Enjoy superior connectivity with XLR and Hi-Z inputs, great for studio integration.
  • Rely on the robust build quality of this preamp for years of dependable performance.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Heritage Audio HA-73EQ Specifications

  • Number of Channels

    1

  • Inputs

    1x XLR 3-pin female microphone input
    1x XLR 3-pin female line input
    1x 1/4" TS Hi-Z input

  • Output

    1x XLR 3-pin male output

  • Phantom Power

    Selectable

  • Gain Range

    >80dB

  • Maximum Output Level

    > +26dB into 600Ohms (internally terminated)

  • Frequency Response

    20Hz (+0.3dB) to 20kHz (-0.2dB)

  • Input Impedance

    Microphone Hi: 1200Ohms minimum
    Microphone Lo: 300Ohms minimum
    Line: 10kOhms bridging

  • Output Impedance

    <75Ohms to drive a load of 600Ohms

  • THD

    <0.025% at 1 kHz
    <0.05% at 100Hz

  • Equivalent Input Noise

    < -125dBu

  • Output Noise

    < -100dBu

  • Power Requirement

    HA-PSU04 external power supply

  • Power Consumption

    <95mA at 48VDC

  • Housing Material

    Steel and aluminum

  • Dimensions (WxDxH)

    17.1 x 7.2 x 1.2" (43.43 x 18.29 x 3.05cm)

  • Weight

    7 lbs (3.18kg)

  • UPC Code

    750536937133

About Heritage Audio HA-73EQ

A testament to superior audio engineering, the Elite Series HA-73EQ Single-Channel 1RU Full Rack Microphone Preamplifier with EQ is meticulously crafted to match the acclaimed standards of the 73JR, 73EQJR, and DMA73 Heritage Audio models. This high-quality, no-compromise audio equipment is an affordable alternative in the entry-level market, thanks to a blend of mass production, lean manufacturing, and contemporary construction techniques that significantly reduce labor costs associated with Western European manufacturing.

The HA73EQ Elite is not just an affordable option; it's a high-performance device that retains key components essential for a true vintage sound. This includes the industry-standard Carnhill transformers, hand-wound in St Ives, England, ensuring an authentic, rich, and musical quality that has been cherished for generations.

Manufactured in the same Spanish facilities as the rest of the Heritage Audio line, the HA73EQ Elite is a rack-mountable mic preamp equalizer that offers a complete classic recording channel. It's designed to enhance the sound of almost any source, providing a dramatic improvement in audio quality.

The HA73EQ Elite stands out with its high-quality capacitors and correct "Vinkor" type pot core inductors, which are crucial for presenting accurate equalization curves. Unlike many products in this category that replace these expensive inductors with generic ferrite core ones or even worse, replace the mid-band dual inductor with a single one, the HA73EQ Elite maintains the integrity of these components. This commitment to quality prevents any distortion in the EQ curves, ensuring a faithful representation of the original design.

The HA73EQ Elite features WIMA 5% capacitors in the EQ section and three correct vintage type "Vinkor" pot core inductors, making the EQ curves virtually indistinguishable from the handmade equalizers in the Heritage Audio line. This ensures that customers can expect the same sonic quality and feel they have come to appreciate from Heritage Audio.

The preamp section of the HA73EQ Elite is equipped with gain, output trim, a -20db pad, polarity reverse, a high pass filter, and +48v phantom power. The EQ section boasts a high shelving EQ, midrange EQ, low shelving EQ, a variable high pass filter, and EQ Bypass. All these features are housed in a robust 1RU British steel and aluminum chassis, utilizing an external power supply for low noise operation, making the HA73EQ Elite a reliable and high-performing addition to any audio setup.

Heritage Audio HA-73EQ Features

  • 80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics
  • 10dB Class A Line Amplifier, Bridging input impedance, balanced and floating
  • Class A, single ended, 2N3055 driven high headroom output stage
  • High Frequency: +/-16dB shelving at 12 kHz, Baxandall type
  • Low Frequency: +/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz ,Baxandall type
  • Mid Frequency: +/-18dB peaking, fixed 'Q' , selectable center frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz and 7.2kHz , dual inductor based
  • High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160 Hz & 300Hz, inductor based
  • EQ Button: Switches the equalizer on or off
  • Phase Button: Flips phase 180 deg.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this microphone preamplifier, ensuring low noise recordings.
  • Dial in the perfect tone using the versatile EQ, ideal for shaping vocals and instruments.
  • Achieve optimal gain range for any source, from delicate vocals to powerful drums.
  • Fine-tune your sound with impedance control, matching the preamp to your microphones.
  • Enjoy superior connectivity with XLR and Hi-Z inputs, great for studio integration.
  • Rely on the robust build quality of this preamp for years of dependable performance.

What's in the box:

  • Heritage Audio Elite Series HA-73EQ Single-Channel 1RU Full Rack Microphone Preamplifier with EQ
  • External Power Supply
  • Heritage Audio 1 Year Limited Warranty
