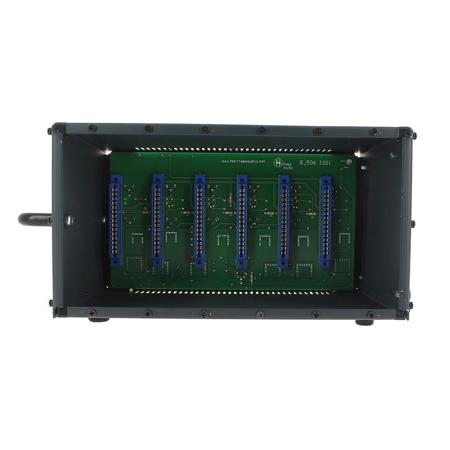

Heritage Audio OST-6, 6 Slot 500 Series Rack with On Slot Technology

The OST-6 is a 500 Series enclosure able to accommodate up to 6 modules. As the rest of the new Heritage Audio line of 500 Series enclosures, it features "ON SLOT" Technology (OTS).

It can be used as a standalone box with handle and rubber feet or rack mounted with the included ears. These custom designed rack ears come included in the package. Their smart design makes assembling / disassembling them a matter of seconds.

"ON SLOT TECHNOLOGY" takes advantage of last generation power electronics to handle power supply on a "per slot" basis. Each slot has its own power supply linear regulation stages; therefore modules are isolated from the rest. They just share the metal enclosure.

With literally hundreds of brands making 500 series modules, we at Heritage Audio think this is the professional way of handling this reliably, eliminating issues often associated with sharing power between different modules of different brands and natures.

Each slot features test LEDs for checking correct power operation (red for +16v, green for -16v), located aside of the slot connector.

Thanks to the use of OST, the power capability of the OST-10 is 400mA per rail per slot maximum, with an overall of 1.6A (1.8A non continuous) per rail, whichever is reached first. Each slot has its own red (+16v) and green (-16v) LEDs for easy testing of the power status.

The RAF Blue Gray enclosure is made out of heavy gauge steel with an aluminum front panel.

Phantom power available is 140mA total.
