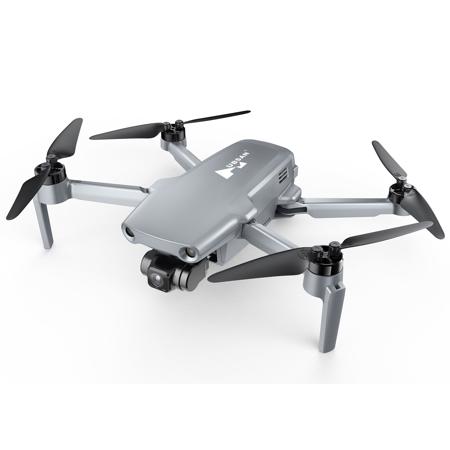

Hubsan ZINO MINI PRO 64GB Drone

SKU: HBSAK0H817D6

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hubsan ZINO MINI PRO Specifications

Aircraft

Aircraft

Jump to...
  • Color

    Gray

  • Diagonal Wheelbase

    220mm

  • Maximum current

    16A

  • Hover accuracy

    Vertical:
    +-0.1m (When the visual positioning is working normally)
    +-0.5m (When GPS is working properly)
    Horizontal:
    +-0.3m (When the visual positioning is working normally)
    +-1.5m (When GPS is working properly)

  • Maximum ascending velocity

    3m/s(N), 4m/s(S), 2m/s(F)

  • Maximum descending velocity

    3m/s(N), 3.5m/s(S), 1.5m/s(F)

  • Maximum horizontal flight speed

    10m/s (N, No wind at sea level)
    16m/s (S, No wind at sea level)

  • Maximum take-off altitude

    4000 meters

  • Maximum anti-wind capability

    Grade 5 wind (8.5-10.5m/s)

  • Maximum tilt angle

    40 Degree (S), 25 Degree (N), 15 Degree (F)

  • Satellite navigation system

    GPS/GLONASS

  • Duration of flight

    40 Minutes (Measured under normal temperature and no wind conditions, at a flight speed of 25km/h)

  • Dimensions (L x W x H)

    Expand: 7.97 x 6.34 x 2.42" (202.54 x 161.2 x 61.6mm)
    Folding: 5.39 x 3.46 x 2.42" (137 x 88 x 61.6mm)
    Folding (including blades): 5.39 x 3.70 x 2.42" (137 x 94 x 61.6mm)

  • Take off Weight

    8.78 oz (249g)

Power System

Jump to...
  • Propeller

    Model: Folding propeller diameter 125.6mm
    Color: Black

  • ESC

    Digital ESC: Brushless 20A x4

Battery

Jump to...
  • Capacity

    3000 mAh

  • Nominal voltage

    3.6x2=7.2V

  • Charging voltage limitation

    8.4V

  • Discharge limitation

    8C

  • Charging time

    90 minutes

  • Working temperature

    0 Degree C- 50 Degree C

  • Charging environment temperature

    0 Degree C- 40 Degree C

  • Smart battery balance

    Support

  • Voltameter management

    Support

  • Automatic discharge protection

    Support

  • Battery Info

    required, included

  • Battery Material

    lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

  • Battery Weight

    3.59 oz (101.84g)

  • SMOS image sensor

    1/1.3" CMOS sensor
    2.4um mixed large pixel

  • Lens specifications

    FOV 84 Degree
    Aperture f/1.85
    EFL: 6.8mm
    Focus point 0.5m to infinity
    Distortion: <1.5%

  • Maximum photo size

    8000 x 6000

  • Maximum video encoding capacity

    4K@30fps

  • Video resolutions

    4K: 3840 x 2160 @ 30fps
    2.7K: 2720 x 1530 @ 30/60fps
    FHD: 1920 x 1080 @ 30/60fps

  • Shutter speed

    3-1/8000s

  • Video bitrate

    100Mbps-200Mbps

  • Photo format

    JPEG

  • Video format

    MP4 (H.265/HEVC)

  • Firmware upgrade

    APP online upgrade

  • Support memory type card

    Built-in eMMC 64GB

Wireless Transmission System

Jump to...
  • Wireless Transmission Solution

    Synclease3

  • Effective Range

    FCC:10km, CE:6km, SRRC:6km

  • Average bitrate

    20Mbps

  • Transmission delay

    Within 200ms

  • Antenna

    Built-in dual antenna

  • Default remote

    HT018Y

  • Gimbal model

    HY817D

  • Degree of freedom

    Triaxial

  • Maximum pitch Speed

    120 Degree /s

  • Rotation Range

    Pitch: -120 Degree to 45 Degree
    Roll: +/- 35 Degree
    Yaw: +/- 35 Degree

Flight Controller

Jump to...
  • Flight controller version

    Third-generation flight controller

  • Basic flight mode

    Sports mode/Normal mode/Movie mode

  • Altitude hold

    Tof, barometer

  • Fixed-point function

    Vision optical flow, GPS

  • Unlock/lock

    Outer- eight unlock/ lock

  • One-click take-off/landing

    APP support, remote control does not support

  • Out of control protection

    Support

  • Low battery return

    Support

  • Home recognition

    Support

  • Vision tracking

    Third-generation tracking technology (ATVT 3.0)

  • Way point flight

    Support

  • Flying around

    Support

  • Ray flight

    Support

  • Motor stall protection

    Support

  • Firmware upgrade

    App online upgrade

Perception

Jump to...
  • Forward

    Binocular visual perception, <12m measurable precision distance, fluctuation <0.5 meter, perception distance> 15m

  • Backward

    Binocular visual perception, <12m measurable precision distance, fluctuation <0.5 meter, perception distance> 15m

  • Downward

    Monocular visual perception, yaw range, effective range 0.3 meters to 0.5 meters, fluctuation <0.1 meter

Remote Controller

Jump to...
  • Color

    Gray

  • Display

    Highlight LED display

  • Operating Temperature

    -10 Degree to -60 Degree C

  • Max Operating Distance

    FCC: 10km, CM: 6KM, SRRC: 6km

  • Battery Capacity

    3350 mAh

  • Buzzer

    Support

  • Supportable mobile system

    Android, iOS

  • Continuous working time

    2.5h (Normal Flight Time)

  • Connectivity

    Lightning, Micro-USB, USB Type-C

  • App

    X-Hubsan2

  • Mobile device requirements

    IOS 10.0 or higher
    Android 6.0 or higher

  • UPC Code

    840250115389

3 Accessories for Hubsan ZINO MINI PRO 64GB Drone

  • All Accessories (3)
  • Landing Gear (1)
  • Light And Light Accessories (1)
  • Safety & Security Accessories (1)

About Hubsan ZINO MINI PRO

ZINO MINI PRO
The world's first drone with obstacle avoidance under 250g.

• 1/1.3" CMOC sensor
• 4K/30fps
• Up to 200Mbps video bitrate
• f/1.85 super large aperture and 2.4microm super large pixel
• Built-in Memory 64GB
• Enjoy sharing video online easily

Night Mode
A deep algorithm of image denoising optimizes your low-light shots.

Imaging Quality
With a 1/1.3" CMOS sensor support smooth 4K/30fps video H.265/HEVC 200Mbps, built-in eMMC 64GB enable you to share your video to media easily.

HDR
Capture higher dynamic range and colors, optimizing your low-lights shots.

Obstacle avoidance

Three direction obstacle avoidance
The World's first drone with vision obstacle avoidance under 250g with advanced 3D space perception algorithms enable the camera to capture more than 600K space feature points with depth extraction and calculation reaching 15 meters of cognitive distance.

Optical-flow night light
Optical-flow night light ensures your hovering performance in low-light circumstances.

AI Tracking Mode
ZINO MINI PRO applying our newest AI tracking algorithms (ATVT 3.0) with a huge improvement in tracking latency and tracking accuracy can locate the figure and animals or moving vehicles easily and automatically.

Intelligent Batteries

Accuracy and Safety
Equipped with intelligent battery management unit to calculate power accurately Built-in safety protection circuit combined with precise power protection strategy and on-off control algorithms to make drone flight high safety.

Intelligent Battery Manager
It can accommodate four batteries in sequence, and can also be used as a mobile power source to charge devices such as remote controls or cell phones.

Flight Time
• Max Flight Time 40 mins (Measured while flying at 6m/s in windless conditions)
• Max Flight Time 37mins hovering time in windless environment

Portable & Legal
with only 249g no registration required

Built-in eMMC 64GB
Built-in eMMC 64GB enable you to share your video to media easily.

Hubsan ZINO MINI PRO Features

  • 249gm Lightweight & Foldable Design
  • 3-Direction Obstacle Avoidance
  • Up to 40 Minutes of Flight Time
  • 10KM Remote Control Distance
  • 3-Axis Gimbal with 4K30 Video
  • 1/1.3" CMOS sensor
  • f/1.85 super large aperture
  • Hubsan Syncleas.3.0 1080P/30fps 20 Mbps 10 KM
  • Up to 6x hybrid Zoom
  • Optical-flow night light
  • Al tracking Mode
  • Enhanced HDR Photos
  • Built-in intelligent flight battery

Key Features

  • 249gm Lightweight & Foldable Design
  • 3-Direction Obstacle Avoidance
  • Up to 40 Minutes of Flight Time
  • 10KM Remote Control Distance
  • 3-Axis Gimbal with 4K30 Video
  • 1/1.3" CMOS sensor

What's in the box:

  • Hubsan ZINO MINI PRO 64GB Drone
  • HT018A Remote Controller
  • Intelligent Charger
  • Drone Battery
  • Pair of Propellers A
  • Pair of Propellers B
  • 4x Propeller Screws
  • Screw Driver
  • 2x Transmitter stick
  • Charging Cable
  • Micro-USB Cable
  • Micro-USB RC Cable
  • USB Type-C RC Cable
  • RC Cable for iPhones
  • Heat Shield
  • Gimbal Calibration Cover
  • Manual
  • Hubsan 1 Year Limited Warranty
