HuddleCamHD Gen2 Full HD Indoor USB 3.0 Video Conferencing 20x PTZ Camera, Black
See all HuddleCamHD items

HuddleCamHD Gen2 Full HD Indoor USB 3.0 Video Conferencing 20x PTZ Camera, Black

SKU: HC20XGYG2
Be the first to review this item

This item is no longer available.

Recommended Alternatives

HuddleCamHD HC3XA: Picture 1 regular
HuddleCamHD HC3XA Full HD USB 2.0 Video Conferencing 3x PTZ Camera, Black
$439.00$299.00
HuddleCamHD HC3XA: Picture 1 regular
HuddleCamHD HC3XA Full HD USB 2.0 Video Conferencing 3x PTZ Camera, White
$439.00$199.00
HuddleCamHD HC3X-G2: Picture 1 regular
HuddleCamHD HC3X Gen2 Full HD USB 2.0 Video Conferencing 3x PTZ Camera, Black
$329.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

HuddleCamHD HC20X-G2 Specifications

  • Compatibility

    Windows 7 & 8
    Mac OS X
    Adobe Connect
    BlueJeans
    Cisco Jabber
    Cisco WebEx
    Easy Meeting
    Facetime
    Fuzebox
    Google Hangout
    GoToMeeting
    Lifesize
    Microsoft Lync
    Polycom RealPresence
    Radavision
    Spontania
    Skype
    TurboMeeting.US
    Vidyo
    Vsee
    Zoom.US

  • Camera: Video CMOS Sensor

    1/2.8" CMOS 3.27 Mega Pixel

  • Camera: Frame Rate

    30fps 1920 x 1080p, 60fps 1280 x 720p

  • Camera: Lens Zoom

    20X Optical Zoom, 12X Digital Zoom f=4.7-90mm

  • Camera: Field of View

    5 to 58 deg.

  • Camera: Min Lux

    0.1 Lux

  • Camera: White Balance

    Auto/Sunlight/Shade/Fluorescence White Balance

  • Pan Movement

    0 to 355 deg.

  • Tilt Rotation

    Up: 45 deg.
    Down: 45 deg.

  • Presets

    64 Presets, 4 Patrol lines

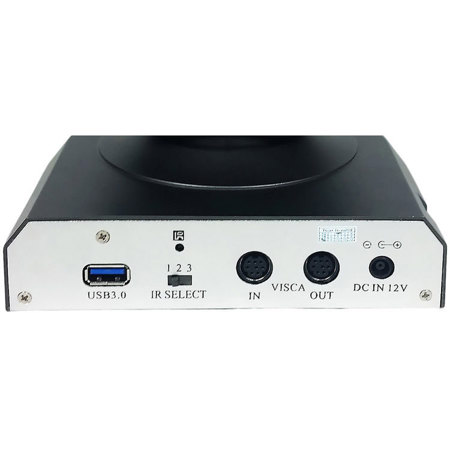

  • High Definition Interface

    USB 3.0

  • Controller Signal Interface

    Mini DIN-8 (VISCA IN, VISCA OUT/RS485)

  • Controller Signal Config.

    IDip-Switch Pin 7/TTL Signal

  • Baud Rate

    9600 bds

  • Power Supply Interface

    DC 12V 2A

  • Power Supply Adapter

    12V DC 2A

  • Input Voltage

    12V DC (10.5-14V DC)

  • Input Power

    24W (Max)

  • Material

    Aluminum, Plastic

  • Temperature

    32 to 113 deg. F / 0 to 45 deg. C

  • Dimensions (W x H x D)

    5.68 x 5.63-7 x 5.88" / 14.43 x 14.30-17.78 x 14.94cm

  • Weight

    2.52lbs / 1.14kg

  • UPC Code

    615953137378

About HuddleCamHD HC20X-G2

The ideal professional-grade conferencing camera for large sized rooms
HuddleCamHD cameras are the perfect cameras for professional video conferencing. Designed with a wide variety of conferencing setups in mind, there is a HuddleCamHD solution that will work for any situation. Offering superior quality at an affordable price, the entire HuddleCamHD line of cameras is easy to setup and ready to use in a matter of minutes.

• 20x Optical Zoom
• USB 3.0
• RS-232
• 1920 x 1080
• 58deg. Field of View
• Up to 30fps
• 64 Presets
• IR Remote
• Certified SONY Lens

Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 20x optical zoom letting you get up close to see and interact with your team.

Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.

Plug-and-Play USB Connectivity
Easily connect your camera to a PC, Mac or ChromeBox without the need for additional software. For best results use a quad-core processor computer.

Ideal Field of View
The HuddleCamHD 20x has a wide enough field of view for most rooms and the ability to drill down to a 5 degree field of view to accommodate almost any position.

Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.

Camera Presets
Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.

Robust Installation Options
Easily invert the camera image for installation on the ceiling (Free ceiling mount included). Use the included Tri-Pod mount adapter to fasten the camera to a standard tri-pod or simply mount on the wall.

RS-232 Camera Control
Integrate the camera into a larger control systems such as Crestron or AMX. Even convert RS-232 to USB and control from your computer.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • HuddleCamHD 3.27MP 1080p Indoor USB 3.0 PTZ Video Conferencing Camera
  • 12 V/2.0 A DC Power Adapter
  • Installation Bracket & Screw
  • USB 3.0 Data Cable
  • 9' Serial Control Cable
  • RS-232C to RS-485 Cable
  • IR Remote Control
  • User Manual (Downloadable Online)
  • HuddleCamHD 2 Year Warranty
