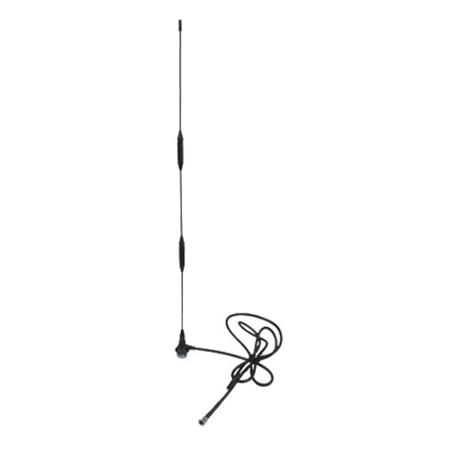

HCO Outdoor 12" Magnet Mount Antenna with 5' SMA Male Cable for Spartan, SG580M, SG580MB, UM562, Panda GSM Wireless Scouting Cameras

SKU: HCATNGSM225

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

HCO Outdoor 12" Magnet Mount Antenna with 5' SMA Male Cable Specifications

  • Compatibility

    Spartan, SG580M, SG580MB, UM562, Panda GSM Wireless Scouting Cameras

  • Frequency Range

    806-894 MHz/1850-1990 MHz

  • Gain

    5dB

  • Coaxial Cable

    RG174 - 5' (1.52m)

  • Radiation

    Omni

  • Ground Plane

    Metal ground plane required

  • Mount

    Magnet Mount

  • Antenna Height

    12" (304.80mm)

  • Connector Type

    SMA Male

  • Polarization

    Vertical

  • Impedance

    50Ohms

  • Material

    Whip - Stainless Steel

  • Metal Surface Diameter

    3" (7.62cm)

  • UPC Code

    091037063823

About HCO Outdoor 12" Magnet Mount Antenna with 5' SMA Male Cable

This 12" magnet mount antenna with 5dB of gain. Primarily used to help you gain on both 800MHz and 1900MHz bands. The antenna has a 5ft cable with SMA-Male which will connect directly to your HCO SG580M, SG580MB, UM562, Panda GSM wireless scouting cameras. In USA, it would work very well with AT&T and T-Mobile service. This antenna would connect directly to the camera's SMA female connector without the need for any other adapter. The only thing that this antenna would need is to be mounted onto a metal surface at least 3" in diameter which is also included in the package.

With the help from this enhanced antenna, your camera will find the wireless network quicker and save power in the sending process which will extend the battery life of the camera.

HCO Outdoor 12" Magnet Mount Antenna with 5' SMA Male Cable Features

  • This 12" magnet mount antenna with 5dB of gain
  • Works with HCO SG580M, SG580MB, UM562, Panda GSM wireless scouting cameras
  • Primarily used to help you gain on both 800 MHz and 1900 MHz bands
  • The antenna has a 5ft cable with SMA-Male
  • In USA, it would work very well with AT&T and T-Mobile service

What's in the box:

  • HCO Outdoor 12 " Magnet Mount Antenna with 5' SMA Male Cable
  • 3 " Metal Surface
  • HCO Outdoor Warranty
