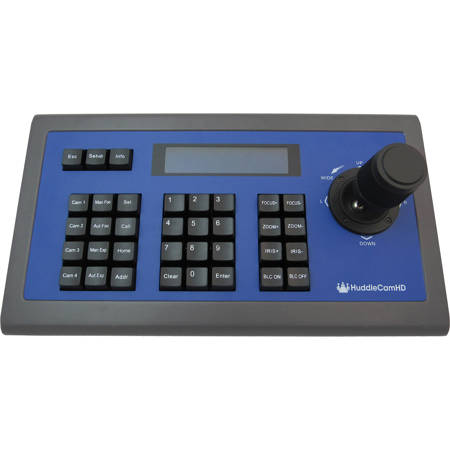

HuddleCamHD HC-JOY-G2 Serial Controller Joystick with VISCA/Pelco-D/Pelco-P Protocol

SKU: HCJOYG2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

HuddleCamHD HC-JOY-G2 Specifications

  • Connections

    RS-232, RS-485, RS-422

  • Baud Rate

    1200-19200 bps

  • Interfaces

    DB9 RS-232; 5SCT RS-485/RS-422

  • Maximum Cameras

    Control up to 255 Cameras

  • Maximum Presets

    Up to 255 Presets

  • Maximum Distance

    3937' / 1200.01m using 24 gauge twisted pair

  • Power

    6W (12V DC)

  • Humidity

    10 - 90% (non-condensation)

  • Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

  • Dimensions (W x D x H)

    12.6 x 7.1 x 4.3" (320.04 x 180.34 x 109.22mm)

  • Weight

    3.4lbs (1.54kg)

  • UPC Code

    737993159704

About HuddleCamHD HC-JOY-G2

HuddleCamHD cameras are the perfect cameras for professional video conferencing. Designed with a wide variety of conferencing setups in mind, there is a HuddleCamHD solution that will work for any situation. Offering superior quality at an affordable price, the entire HuddleCamHD line of cameras is easy to setup and ready to use in a matter of minutes.

Control Up to 255 Cameras
One reliable joystick to control up to 255 unique cameras via serial RS-232 cabling.

Camera Switching Hot-Keys
One of the most requested features is here! Four keys for quick keyboard switching functionality.

Industry Standard Protocols
Support for any mix of PTZ cameras that use either VISCA, PELCO-D or PELCO-P protocols.

Durable Metal Housing
The HuddleCamHD second generation joystick is made tough for a wide variety of real world applications.

Works with Every HuddleCamHD Camera
This joystick will work with any HuddleCamHD camera using the provided DB9 to 8-pin mini din RS-232 cable.

RS-232 Camera Control
Uses affordable serial control cabling available.

HuddleCamHD HC-JOY-G2 Features

  • Durable Metal Housing
  • VISCA, PELCO-P & D
  • RS-232, RS-422 & RS-485
  • On Screen Display
  • Variable Speed PTZ control
  • Iris, Focus, Home, Backlight & Preset controls
  • 4 Camera quick select buttons
  • Activity LEDs
  • Easy setup
  • Three-Axis Joystick
  • No more useless buttons!
  • 2 year warranty

Product Documents

User Manual

What's in the box:

  • HuddleCamHD HC-JOY-G2 Serial Controller Joystick
  • RS232 Cable
  • 12V DC Power Supply
  • 5p Screw Terminal Plug
  • Manual
  • HuddleCamHD 2 Year Warranty
