HuddleCamHD TEAMPLUS VCS Kit Specifications

  • PC: Processor

    Intel Core i5 6260U Processor (1.9 GHz with turbo capability to achieve 2.8 GHz, Dual-Core processor with 4MB smart cache)
    Supports Intel HyperThreading Technology
    Supports Intel 64 architecture

  • PC: Chipset

    Intel Iris Graphics

  • PC: Graphics

    Intel HD Graphics 540
    One Mini DisplayPort and One HDMI port supporting dual independent display capability

  • PC: Peripheral Connectivity

    Integrated Intel 10/100/1000 Network Connection (low power design)
    4 Super-Speed USB 3.0 front panel ports (two back panel ports, two front

  • PC: System Memory

    Dual-channel DDR4 with two connectors for 2133 MHz memory support (32GB max)
    Memory Voltage 1.2 V

  • PC: System Bios

    64MB Flash EEPROM with Intel Platform Innovation Framework for EFI Plug and Play
    Advanced configuration and power interface V3.0b, SMBIOS2.5
    Intel Express BIOS update support Fast Boot BIOS
    Optimized POST for almost instant-on access to PC from power on

  • PC: Hardware Management Function

    Processor fan speed control
    System chassis fan speed control
    Voltage and temperature sensing
    Fan sensor inputs used to monitor fan activity
    ACPI-compliant power management control (16GB max)

  • PC: Expansion Capabilities

    1 NFC Header
    1 AUX_PWR header
    2 Internal USB 2.0 ports via 2 1x4 headers

  • PC: Audio

    Intel High Definition Audio5 (Intel HD Audio) via HDMI 1.4b and DisplayPort 1.2 outputs supporting

  • PC: Jumpers and Front Panel Connectors

    Reset, HDD LED, Power LEDs, power on/off
    Dual Front-panel Super-Speed USB 3.0 connections
    Dual Super-Speed USB 3.0 connections via internal header

  • PC: Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • PC: Storage Temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Camera: Video CMOS Sensor

    1/3" CMOS 2.0 Mega Pixel

  • Camera: Frame Rate

    30fps 1920 x 1080p, 30fps 1280 x 720p

  • Camera: Lens Zoom

    10x Optical Zoom, f=4.7- 47mm

  • Camera: Field of View

    6.4 deg. (tele) to 56.3 deg. (wide)

  • Camera: Min Lux

    0.1 Lux

  • Camera: White Balance

    Auto/Manual/Outdoor/Indoor/One Push/ATW

  • Camera: Pan Movement

    0-355 deg.

  • Camera: Tilt Rotation

    Up: 90 deg., Down: 45 deg.

  • Camera: Presets

    64 Presets, 4 Patrol lines

  • Camera: Power Supply Adapter

    12V DC 2A

  • Camera: Input Voltage

    12V DC (10.5-14V DC)

  • Camera: Input Power

    24W (Max)

  • Camera: Working Environment

    Indoor

  • Camera: Video Interface

    USB 3.0

  • Camera: Control Signal Interface

    Mini DIN-8 (VISCA IN, VISCA OUT/RS485)

  • Camera: Control Signal Config.

    DIP-Switch Pin 7/TTL Signal

  • Camera: Baud Rate

    9600 bps

  • Camera: Power Supply Interface

    DC 12V 2A

  • Camera: Material

    Aluminum, Plastic

  • Microphone: Compatibility

    Operating systems: Windows / Linux / Mac OS

  • Microphone: Connections

    Powered by USB (wall-powered converter optional) (5V DC) (400ma)
    Mic level or Line level (switch controlled) 3.5mm mono jack
    6' male/male audio cable (optional) 500 ohm output impedance
    USB audio output
    DB9 port for external camera control or control system interface

  • Keyboard: Compatibility

    Operating systems: Windows / Linux / Mac OS
    Select USB HID compliant Smart TVs and gaming consoles

  • Keyboard: Wireless Connection

    Up to 33' (10m) range

  • Dimensions

    Camera (WxHxD): 5.7 x 6.4 x 5.8" (144.78 x 162.56 x 147.32mm)
    Camera with Tilt Up (WxHxD): 5.7 x 7.2 x 5.8" (144.78 x 182.88 x 147.32mm)
    Wall Mount (WxDxH): 145 x 212 x 129mm (5.71 x 8.35 x 5.08")
    Keyboard (LxWxH): 14.4 x 5.20 x 0.76" (365.76 x 132.08 x 19.30mm)
    Transceiver (LxWxH): 0.72 x 0.51 x 0.17" (18.29 x 12.95 x 4.32mm)

  • Weight

    Camera: 2.4 lbs (1.09kg)
    Wall Mount: 1.9 lbs (0.86kg)
    Keyboard: 15.3 oz (433.75g)
    Transceiver: 0.05 oz (1.42g)

  • UPC Code

    737993160557

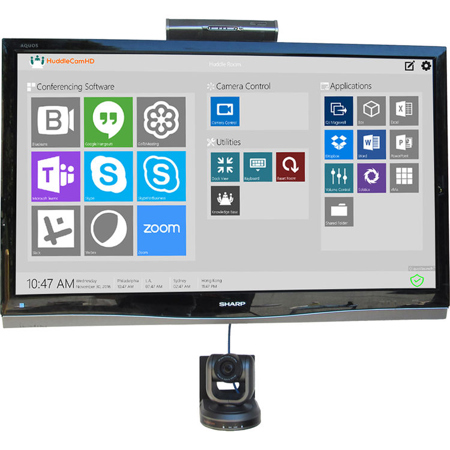

About HuddleCamHD TEAMPLUS VCS Kit

The HuddleCamHD TEAMPLUS Video Collaboration Solution (VCS) is a easy to install kit designed for video conferencing, live streaming, webinars and more! We've done the hard work for you and designed a kit that flawlessly integrates with itself and other outside applications.

• Fast and Simple to Install
• Plug and Play
• HuddleCamHD 10x-G3 Camera
• Intel NUC
• Quick Lunch
• Collaboration Software

Security is a must
Quicklaunch ensures your conference experience is secure for all users. The reset room function deletes temporary files such as cache and any files sent from far end users.

Plug and Play USB Connectivity
The HuddleCamHD 10X-G3 has a Super Speed USB 3.0 connection ensuring uncompressed 1920x1080p video. It also features a 61deg. field of view

Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.

Clearly be heard
The Acoustic Magic Voice Tracker II has a fantastic pickup range of 20 ft. depending on the acoustic of the room.

We've built this system around medium - large sized conference rooms which is why we've bundled it with the HuddleCamHD 10X-G3. This camera offers 10X optical zoom ensuring you can get the shot you're looking for. You don't need to sacrifice the quality of your system because it's not in your budget. The 10X-G3 offers crystal clear video at 1080p 30 FPS. The camera is also highly compatible with most meeting software such as Adobe Connect, Google Hangouts, Cisco Webex, Zoom.us and many more.

Quicklaunch PE is a highly compatible command software with the ability to keep your applications organized and secure. Easily start or join meetings with the touch or click of a button. It features a "reset room" button that restores the meeting room devices to a clean state; removing sensitive files such as cache or temporary files sent from other users. Quicklaunch on average saves over 10 minutes per meeting with it's simple to use interface. It increases meeting productivity by 25% by simply using the apps on the dashboard and collaborating. If you plan on using more than one Quicklaunch app you can easily export and import themes and actions from software to software.

The Acoustic Magic Voice Tracker II is a microphone designed to be mounted on the wall or ceiling. It has a range of up to 20ft (6m) depending on the rooms acoustics. It is powered through USB so only one cable is needed. It features 6 "listening beam" mics that shift direction depending on where the speaker is talking to ensure the highest quality. Acoustic Magic's AEC (acoustic echo cancellation) is designed to block out ambient noise and only pick up the speaker, allowing for uninterrupted full-duplex communication between 2 lines.

This Intel NUC includes a 6th generation i5 processor, 16 GB RAM, 256 SSD and Windows 10 operating system. It features 4 Super Speed USB 3.0 ports to ensure whatever you plug in to this little beast will work flawlessly. It has two video outputs, one HDMI and one Mini Display, which both carry audio to your display. It also includes a VESA mount, giving you the ability to mount it directly to the wall behind a display. Intel Unite can be installed on most Intel chipset mini PCs and integrates with the Quicklaunch Command Software.

We've included our Small Universal Wall Mount in the kit for mounting the camera to the wall. Once mounted, cables can be run under, above or through the mount depending on your application. The Microsoft All-in-One Media Keyboard is the final accessory in our kit. It features full size keyset and an integrated touchpad with all the gestures of a regular touch pad such as click, swipe, zoom, drag and more.

What's in the box:

  • HuddleCamHD 10x Gen 3 USB Conference Camera
  • Acoustic Magic Voice Tracker II Microphone Array
  • Wireless Keyboard
  • Intel i5 NUC Mini PC
  • Quicklaunch PE Command Software
  • Small Universal Wall Mount
  • C2G 6' HDMI M-M Cable
  • HuddleCamHD 3 Year Warranty on PC and Wall Mount
  • HuddleCamHD 2 Year Warranty on Camera
  • HuddleCamHD 1 Year Warranty on Microphone Array and Keyboard
