HuddleCamHD HC-USB2-AIR Wireless USB 2.0 Extender, Up to 30 Mbps Bandwidth

SKU: HCUSB2AIR

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Mark O : what is the distance this will transmit?ANDREW R : From the product overview: " FCC Certified to wirelessly transmit 1080p video, audio and/or data up to 25' between wireless transceivers"
Eduardo P : Does it require you to install custom drivers or does windows pick them up automatically?
Shopper : Why Did You Choose This?Fernando P : Is a very interestinng technology, and also I consider very usefull for me.

Reviews about this item

Review Summary

HuddleCamHD HC-USB2-AIR Specifications

  • Standards

    WiMedia PHY v1.1
    USB 2.0

  • Bandwidth

    30 Mbps per link

  • Maximum Transmission Distance

    25' (7.6m)

  • USB Device Support

    Up to 4 per link (via separately available hub)

  • Maximum Links

    Up to 8 links per working area

  • Operating Frequency

    WiMedia Bands: 1, 3, 6 (3.1-9 GHz)
    Band Group and Frequency: Band 1, 3168 - 4572 MHz

  • Latency

    1-2 milliseconds

  • OS Support

    Windows 7 and above

  • Power

    Index: 5V nominal (4.5V-5.5V)
    Transmit: Typically <1.0W
    Receive: Typically <1.15W
    Idle: Typically <0.60W

  • Receiver Sensitivity

    Minimum (dBm):
    53.3 Mbps, PER <8%: -61
    106.7 Mbps, PER <8%: -68
    200 Mbps, PER <8%: -65
    320 Mbps, PER <8%: -63
    400 Mbps, PER <8%: -62
    480 Mbps, PER <8%: -60

    Typical (dBm):
    53.3 Mbps, PER <8%: -78
    106.7 Mbps, PER <8%: -76
    200 Mbps, PER <8%: -72
    320 Mbps, PER <8%: -70
    400 Mbps, PER <8%: -68
    480 Mbps, PER <8%: -67

    Transmitted signal PSD: Max -41.3 dBm/MHz

  • Working Environment

    Indoor

  • Operating Temperature

    32 to 113 deg. F (0 to 45 deg. C)

  • USB Pinout

    Std USB 2.0 (1: +5V, 2: Data-, 3: Data+)

  • Dimensions (LxWxH)

    Module with Antenna Extended: 3.25 x 1.94 x 3.25" (82.55 x 49.28 x 82.55mm)

  • Weight

    Module: 0.05 lbs (0.02kg)

  • UPC Code

    737993160151

About HuddleCamHD HC-USB2-AIR

The new USB2Air wireless USB extension adapter from HuddleCamHD has been designed to wirelessly transmit high-definition video up to 25 feet between the device transceivers. HuddleCamHD manufactured the world's very first wireless USB conference camera with pan, tilt and zoom the HuddleCam Air and is now releasing the same technology for use with any USB 2.0 device. Now the same great wireless USB technology is available for use with virtually any video product that support USB 2.0. HuddleCamHD has once again introduced wireless USB technology for professional uses without sacrificing on quality. The USB2AIR will be available through existing distribution partners to enhance the current web conferencing focused product line.

• FCC Certified to wirelessly transmit 1080p video, audio and/or data up to 25' between wireless transceivers
• 30Mbs of available bandwidth (shareable between multiple devices)
• Less than 1ms of latency (ideal for video conferencing, virtual reality, image magnification and other real-time applications)
• Works with any Windows 7, 8, 10 computer
• Eliminates the need for expensive USB extension cabling in small/medium sized rooms
• Includes a 1-year warranty from HuddleCamHD

Wireless USB Connection
Completely wireless USB 2.0 connection with a 25' range over RF signal.

Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Once the software is installed, simply plug in the device in and you're ready to go!

Point to Point Mode
Just like our popular HuddlePod Air the USB2Air provides a discreet point-to-point wireless connection.

Interference Free
USB2Air uses it's own channel in the RF spectrum, eliminating possible interference.

Use your favorite software
Works with virtually every software that uses USB inputs, with no need for additional drivers or proprietary connections.

Warranty
A one year warranty is included with each USB2Air device and backed by HuddleCamHD's best in industry support team.

Wireless USB 2.0 Video Adapter
While USB 3.0 and now USB 3.1 are becoming standards for super fast bandwidth speeds, USB 2.0 is still commonplace for millions of devices that are being manufactured today. The USB2Air supports high definition 1080p video products such as webcams and virtual reality headsets which also makes lower bandwidth products supported as well such as USB audio conferencing phones.

The use cases for Wireless USB 2.0 are clearly wide open from video conferencing, telemedicine, virtual reality, immersive technology and professional technology integration. The USB2Air can support up to 30 Mbps of bandwidth and therefore multiple 1080p USB devices. We suggest determining the USB 2.0 devices you plan to use and referring to the device manuals to calculate the required bandwidth.

What does the USB2AIR package include?

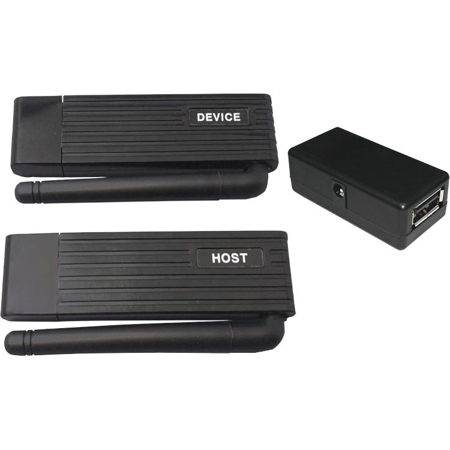

Our FCC Certified Wireless USB Link Technology adds only 1 ms latency which is ideal for real-time applications such as video conferencing, virtual reality gaming and visual collaboration. The USB2Air package includes a USB Host adapter (connects to PC), a USB Device" adapter (connects to provided USB HUB), a 2-Port USB hub which provides power, a 5VDC 2A Power adapter and a 5VDC to USB Power cable.

What's in the box:

  • HuddleCamHD Device Transceiver Module
  • Host Transceiver Module
  • USB-FF Power Adapter
  • 6' USB 2.0 Male to Male Cable
  • 5V Power Supply
  • Manual
  • HuddleCamHD 1 Year Parts and Labor Warranty
