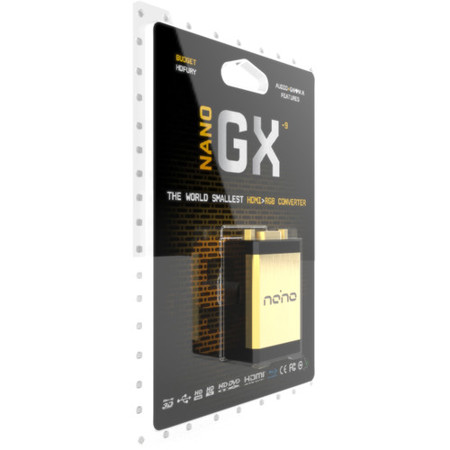

World smallest HDMI to VGA converter with Audio output and Gamma-X features integrated
Ultra low power consumption 5V from DVI/HDMI or external power supply
The brand new HDfury I Nano GX handles all video formats down to SD (480p) and all the way up to Full HD (1080p60)
Featuring a smart reset switch so you will never have to unplug and replug HDMI cable again, just press the reset button and HPD events is reinitialized
A perfect companion for budget projector or small RGB monitor/display
Just like any recent HDfury hardware, it comes with USB upgradable firmware
When used in standalone mode (no power supply cord attached) the Nano GX will perform just fine with most HDMI/DVI source devices
HDMI Female Port Input (100% digital)
A HDMI to DVI-D cable can be used to connect to an DVI-D(HDCP) source
RGB 4:4:4 (8 bits) digital input (every HDMI source MUST be RGB 4:4:4 compatible)
Mini Jack output for analog stereo sound
Gamma-X feature integrated
Compatible with non-HDCP or HDCP sources
Compatible with any RGB Display
Easy to install within a minute (Plug & Play)
10 bits 175MHz triple video DAC - Inter-DAC: 2%
RGB-H/V Female Port D-SUB 15 Output video analog signals (0,7Vpp over 75 ohms impedance)
Ultra short Analog links (<1 cm) on the Nano GX RGB 1080p for optimal quality
DVI video bandwidth in VGA/RVB outputs: 25-165MHz
DVI Data Rate - Bandwidth 1.65 Gbps (Single link)
Maximum resolutions: 1920x1080 or UWXGA (1920x1200) at 60Hz with custom porch settings or SXGA (1280x1024) at 85Hz Computer compatible (PC, Mac)
HDTV ready (480p/576p/720p/1080i/1080p48/50/60 compatible)
DVI1.0 compliant / HDMI interoperable and HDCP ready
HD-DVD and Blue Ray Disc players compatible
PS3, PS4, X360 Elite and Xbox One compatible
SAT and CABLE setbox for HDTV channels compatible
HDCP compatible with embedded keys loaded
Ultra low power consumption in Standby
On-board DC/DC converter (5V) with extra-low EMI signature
Power +5V from DVI/HDMI or external power supply
Green LED to display active digital link
Safe cost solution - Single IC solution + external EEPROM
Shortest RGB analog video link as possible
Professional factory made (mass-production) using pick/place and reflow/wave solder pro. Equipment
Gold Plated connectors, tracks and material
HDfury has a +5V input
EDID detective feature: EDID EEPROM can be reprogrammed by your computer through it's Graphic Card! (This feature is reserved to professionals)
Gamma-X feature included:
Output: RGBHV HD-15 D-Sub (VGA) Female Connector (direct connection to TV, PJ, monitor)
Plug-and-play, no extra steps required
Adjustable Gamma Boost for restoring lost shadow details
Rotary potentiometer for easy Gamma Boost adjustment
Supports all standard HD formats and SD formats: 1080p/1080i/720p/etc. in NTSC/PAL/SECAM
Supports all PC resolutions including extremely high resolutions such as 1600x1200/100Hz, 1920x1440/60Hz and 2K signals
450MHz large signal (-3dB) bandwidth for virtually lossless video processing
Full dynamic range for maximum picture detail at all resolutions
Precise black levels - no black crush or missing details or washed-out whites
