HDfury PCI-MX 44UHD 4x4 PCI HDMI Matrix Switch
SKU: HDPCIMX44UHD
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About HDfury PCI-MX 44UHD

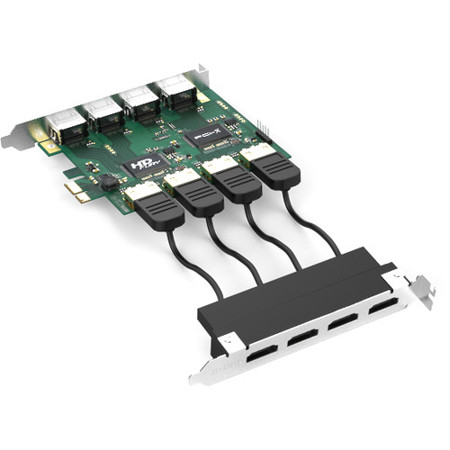

The HDfury PCI-MX 44UHD is the world first HDMI Matrix Switch for HTPC and streaming computer, it allows you to route 4 HD sources to 4 HD displays. The 4x4 HDMI matrix allows 32 viewing combination of 4 HD sources on 4 HDTVs. The 4x4 HDMI Matrix switch utilizes the latest switching technology to provide Instant Switching. Unlike most of the switching devices on the market, the HDfury PCI-MX device can instant switch without any flash on others screens (This feature might be alterable by the capability of the connected display to handle pixel clock changes).
The HDfury PCI-MX 44UHD supports SD, HD, Full HD and UHD (up to 4K30) . The unit is powered by one PCI-X slot available on any CPU motherboard. In addition, the PCI-MX incorporates sophisticated EDID management through a windows EDID application and an USB service port for matrix control. REMIX/CUSTOM and FIXED EDID mode are available.
With this matrix switcher you don't need to move equipment from room-to-room, nor do you have to buy duplicate equipment for the other rooms in your home. This matrix provides 4 HDMI inputs, which allows you to connect the PS4, X1, cable box, Blu-ray player, and/or the HDMI output of your Android/Apple smartphone. The matrix supports 4K30 UHD, 3D video, 36-bit Deep Color, x.v.Color and high-definition multichannel audio, including Dolby TrueHD and DTS-HD Master Audio.
HDfury PCI-MX 44UHD Features
- SD/HD/Full HD & UHD support
- Up to 4K30 4:4:4 or 4K60 4:2:0
- 4 HDMI inputs, 4 HDMI outputs
- Instant Fast Switching without blinking (alterable by the connected display's capability)
- 32 viewing combinations
- EDID Management, USB service port for customization needs
- REMIX/CUSTOM and FIXED EDID mode are available
- As always furious features can be unlocked via USB
- 4-IN 4-OUT HDMI Repeater with Equalizer
- Supports 4 HDMI input ports (Port 0/1/2/3) with on-chip EDID RAM for each port
- Support HDMI/MHL dual mode in RX0 port
- On-chip 4 HDCP RX ciphers which support Instant Port Switching (IPS)
- Supports 4 HDMI output ports with on-chip HDCP TX cipher for each port
- Support 32 combinations of matrix switching
- Support wide Frequency Range: 25MHz - 340MHz TMDS clock
- Supports 12-bit Deep Full HD, Full 3D and 4K2K video
- Supports Standard Audio, DSD Audio and HD (HBR) Audio
- On-chip HDMI Receiver and Transmitter core which are compliant with HDMI 1.4 specification
- On-chip HDCP RX/TX Engines support Repeater and are compliant with HDCP 1.4 specification
- HDMI-CEC passthrough
- Source Signal Detection in Low Power mode
- On-chip Power Regulator which provides regulated 3.0V and 1.6V power
- Low stand-by current at power down mode
- Gold plated to ensure smooth, corrosion-free connections
