HEDEN YMER 1-Motor Lens Control Kit with M26VE

YMER-1 with LenSaver Calibration
The Heden YMER-1 with LenSaver Calibration (patent pending) is a wireless focus or iris control system with an optional wired zoom control through LANC.

LenSaver Calibration is a unique new way of calibrating a follow focus system, just press the calibration button and move the lens by hand from end-stop to end-stop then press the button again, that's it. LenSaver Calibration is easy, safe and fast.

Manual Override makes it possible to take manual control of the lens without jeopardizing calibration.

Wireless transmission up to 500 meters (1640 feet) line of sight. Small with incredibly intuitive controls and unique features.

Smooth rotary movements of the control knob with adjustable resistance give you a haptic connection with total control of the lenses movements. Adjustable limit points for easy focus from A to B and precision mode for super fine control over an adjustable range.

One press on the camera run button starts and stops recording from a distance. Mounting points on the transmitter makes it easy to attach other devices.

Unique features of YMER-1
• LenSaver Calibration (patent pending) is a new and unique way of calibrating a follow focus system - very quick and without risk of damaging delicate lenses or lenses without end-stops.
• Extremely smooth knob movements with adjustable knob resistance.
• Fast and accurate responsiveness and high motor speed.
• Manual Override - the DP or Camera Operator can take manual control of the lens from the focus puller
• Unique 1+1 receiver - one channel wireless and one channel wired through LANC to control zoom or iris with a wired control together with the wireless focus
• Wired LANC control integrated with the Smartgrip on Sony FS5/FS7 or 3:rd party LANC controllers
• Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market
• Easy replaceable standard Sony battery with long operational life (not included)

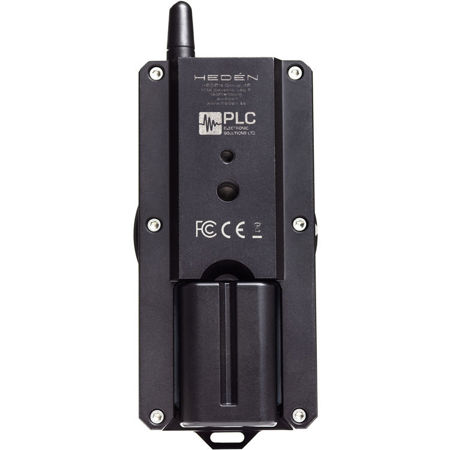

- YMER-1 Transmitter -
• Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market.

- YMER 1+1 Reciever -
• Drives up to two Heden motors
• One channel wireless and one channel wired through LANC
• Works with Heden motors M21VE-L, M26VE, VM35, LM30 and CM55
• Range (Indoors): Approx. 15 - 100 meters (50-330 feet) depending on building materials, interference and other obstacles (Line of sight): 500 meters (1650 feet)
• Power source: 14.4V PTAP

- Cables -
Motor cable:
Cable for Heden M21VE, M21VE-L and M26VE motors. Connects between motor and receiver.
• 7 pin Std. male Connectors at both sides
• 60 cm (23.6") long.

Power cable:
• Std. 2 pin male connector to PTAP male at the other side
• 60 cm (23.6") long.

- Digital servo motor M26VE (256 Encoder, 3.3k ID Resistor) -
The Heden M26VE motor is a strong, reliable and silent lens control motor for professional film or broadcasting cameras. With a torque of 1.8 newton meters it can pull stiff lenses without causing unnecessary noise pollution. Small size and light weight make it ideal for cramped environments on a busy camera rig. Mounts vertically on a 19 mm (0.75") rod without the need of tools.

The accompanying bracket reduction insert will fit on a 15 mm (0.59") rod and additional sizes are available in our accessories section. Interchangeable snap on gears that can be mounted on either side of the gear housing ads to the versatility of the Heden motors. Supplied with a 0.8 gear module and with 0.4, 0.5, 0.6 modules available as extras. Comes with a variety of encoders and resistors to suit your need.

- Gear 0.8 module -
Snap on gear for the Heden M26VE motor. Used for lenses and applications with 0.8 module.

- Neck Strap -
This Neck Strap for YMER allows you to comfortably wear your YMER lens controller on your person and close at hand.
