HEDEN YMER 1-Motor Lens Control Kit with LM30

YMER-1 with LenSaver Calibration
The Heden YMER-1 with LenSaver Calibration (patent pending) is a wireless focus or iris control system with an optional wired zoom control through LANC.

LenSaver Calibration is a unique new way of calibrating a follow focus system, just press the calibration button and move the lens by hand from end-stop to end-stop then press the button again, that's it. LenSaver Calibration is easy, safe and fast.

Manual Override makes it possible to take manual control of the lens without jeopardizing calibration. Wireless transmission up to 500 meters (1640 feet) line of sight. Small with incredibly intuitive controls and unique features.

Smooth rotary movements of the control knob with adjustable resistance give you a haptic connection with total control of the lenses movements. Adjustable limit points for easy focus from A to B and precision mode for super fine control over an adjustable range.

One press on the camera run button starts and stops recording from a distance. Mounting points on the transmitter makes it easy to attach other devices.

Unique features of YMER-1
• LenSaver Calibration (patent pending) is a new and unique way of calibrating a follow focus system - very quick and without risk of damaging delicate lenses or lenses without end-stops.
• Extremely smooth knob movements with adjustable knob resistance.
• Fast and accurate responsiveness and high motor speed.
• Manual Override - the DP or Camera Operator can take manual control of the lens from the focus puller
• Unique 1+1 receiver - one channel wireless and one channel wired through LANC to control zoom or iris with a wired control together with the wireless focus
• Wired LANC control integrated with the Smartgrip on Sony FS5/FS7 or 3:rd party LANC controllers Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market
• Easy replaceable standard Sony battery with long operational life (not included)

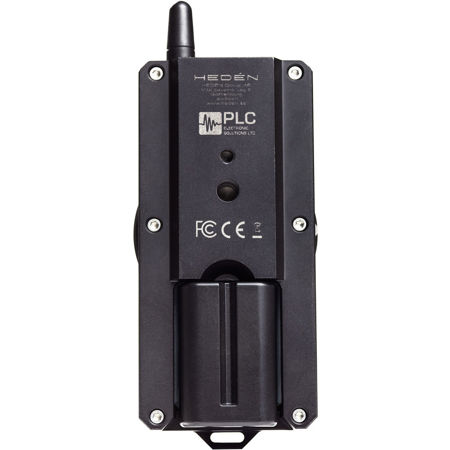

- YMER-1 Transmitter -
• Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market.

- YMER 1+1 Reciever -
• Drives up to two Heden motors
• One channel wireless and one channel wired through LANC
• Works with Heden motors M21VE-L, M26VE, VM35, LM30 and CM55
• Range (Indoors): Approx. 15 - 100 meters (50-330 feet) depending on building materials, interference and other obstacles (Line of sight): 500 meters (1650 feet)
• Power source: 14.4V PTAP

- Cables -
Motor cable:
• 7 pin Std. male Connectors at both sides
• 60 cm (23.6") long.

Power cable:
• Std. 2 pin male connector to PTAP male at the other side
• 60 cm (23.6") long.

- Light digital servo motor LM30 -
The Heden LM30 is the smallest and lightest motor for professional film and broadcasting cameras we have ever produced, developed in collaboration with Shotover, based on their G1 motor. The weight and size make it a perfect choice for use on steadicams, gimbals and drones.

The LM30 features increased encoder protection, more flexible mounting options and an improved snap-on gear solution.

The 7-pin 0B connector reduce weight further and allows smaller and lighter cables.

The motor mounts vertically on a 15mm rod with the supplied super light rod-mount and Hex-key. The unique interchangeable snap on gears that can be mounted on either side of the gear housing ads to the versatility of the Heden motors. Supplied with a superlight 0.8 gear module and with 0.4, 0.5, 0.6 modules available as extras.

LM30 is a perfect choice for light weight operations and as reliable as any Heden motor.

Features
• Developed in collaboration with Shotover, based on their G1 motor
• New superlight powerful vertical motor - 95 grams/3.35 oz
• Perfect for gimbals, Steadicams and drones
• Compatible with Heden YMER/CARAT, other FIZ systems and Freefly MoVi

- Neck Strap -
This Neck Strap for YMER allows you to comfortably wear your YMER lens controller on your person and close at hand.
