HEDEN YMER 1-Motor Kit with M26VE-LX, Includes YMER-1 Transmitter, YMER 1+1 Reciever

SKU: HE10104 MFR: 10104
Earn VIP Reward Points

Key Features

  • Experience smooth, precise lens control with this HEDEN follow focus system.
  • Achieve accurate focus pulls effortlessly with the digital servo motor M26VE-LX.
  • Enjoy easy mounting and a durable build for reliable performance on set.
  • This follow focus kit offers compatibility with a range of Heden motors.
  • Adjustable dampening provides tactile feedback for cinematic focus transitions.
  • Expand your creative possibilities with precise focus for professional videography.
See More Product Details
Special Order?Estimated to Ship: 10/01/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

HEDEN YMER Specifications

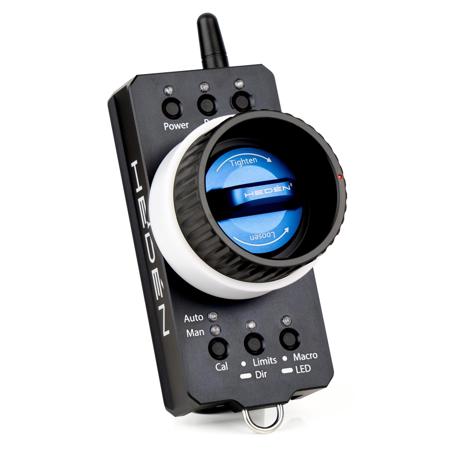

YMER-1 Transmitter

YMER-1 Transmitter

Jump to...
  • Power source

    Sony NP-FM500H compatible battery (not included)

  • Length

    Excluding Antenna: 6" (152mm)
    Including Antenna: 7.3" (185mm)

  • Height

    Excluding control knob: 1.45" (37mm)
    Including control knob: 3.15" (80mm)

  • Width

    3" (76mm)

YMER 1+1 Reciever

Jump to...
  • Compatibility

    Heden motors M21VE-L, M26VE, VM35, LM30 and CM55

  • Range (Indoors)

    Approx. 50-330' (15 - 100m) depending on building materials, interference and other obstacles (Line of sight): 1650' (500m)

  • Power source

    14.4 V PTAP

  • Length

    Excluding Antenna: 4" (100mm)

  • Dimensions (H x W)

    1 x 2" (26 x 54mm)

  • Weight

    Approx. 6.4 oz (180g)

Motor cable

Jump to...
  • Connector

    7 pin Std. male Connectors at both sides

  • Length

    23.6" (60cm)

Power cable

Jump to...
  • Connector

    Std. 2 pin male connector to PTAP male at the other side

  • Length

    23.6" (60cm)

  • UPC Code

    680196626927

About HEDEN YMER

For professional photographers and videographers seeking superior control over their camera's focus and zoom functions, the YMER 1-Motor Kit with M26VE-LX is an exceptional choice. This high-quality kit includes the YMER-1 Transmitter and YMER 1+1 Receiver, both designed to provide innovative, user-friendly control from a distance.

The standout feature of this kit is the Heden YMER-1 with LenSaver Calibration, a wireless focus and iris control system that can also be wired for zoom control through LANC. The LenSaver Calibration offers a revolutionary way of calibrating a follow focus system. Simply press the calibration button, manually move the lens from one end-stop to the other, and press the button again. This process is not only easy and safe but also incredibly fast, saving valuable time during shoots.

The Manual Override feature allows for direct control of the lens without compromising the calibration, ensuring consistent, precise results. The wireless transmission capability extends up to 500 meters (1640 feet) line of sight, providing flexibility and freedom of movement during shoots.

Compact yet powerful, this kit is designed with incredibly intuitive controls and unique features. The smooth rotary movements of the control knob, coupled with adjustable resistance, provide a tactile connection and total control over the lens movements. Adjustable limit points facilitate easy focus transition from point A to B, and the precision mode allows for super fine control over an adjustable range.

The kit also includes a camera run button that can start and stop recording from a distance, enhancing its user-friendly design. Additionally, the transmitter comes with mounting points, making it easy to attach other devices.

In summary, the YMER 1-Motor Kit with M26VE-LX is a durable, compact, and innovative solution for remote camera control, making it a valuable addition to any professional's toolkit.

HEDEN YMER Features

  • LenSaver Calibration, a new and unique way of calibrating a follow focus system - very quick and without risk of damaging delicate lenses or lenses without end-stops
  • Extremely smooth knob movements with adjustable knob resistance
  • Fast and accurate responsiveness and high motor speed
  • Manual Override - the DP or Camera Operator can take manual control of the lens from the focus puller
  • Unique 1+1 receiver - one channel wireless and one channel wired through LANC to control zoom or iris with a wired control together with the wireless focus
  • Wired LANC control integrated with the Smartgrip on Sony FS5/FS7 or 3rd party LANC controllers
  • Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market
  • Easy replaceable standard Sony battery with long operational life (not included)
  • Drives up to two Heden motors
  • One channel wireless and one channel wired through LANC

Product Documents

User Manual

Key Features

  • Experience smooth, precise lens control with this HEDEN follow focus system.
  • Achieve accurate focus pulls effortlessly with the digital servo motor M26VE-LX.
  • Enjoy easy mounting and a durable build for reliable performance on set.
  • This follow focus kit offers compatibility with a range of Heden motors.
  • Adjustable dampening provides tactile feedback for cinematic focus transitions.
  • Expand your creative possibilities with precise focus for professional videography.

What's in the box:

  • YMER-1 Transmitter
  • YMER 1+1 Receiver
  • Digital Servo Motor M26VE-LX
  • Gear 0.8 Module
  • Bracket with 19mm to 15mm Reduction Insert
  • White Scale Ring
  • Power Cable
  • Motor Cable
  • Neck Strap
  • (Sony NP-FM500H Compatible Battery and Charger Not Included)
  • Heden 1 Year Limited Warranty
