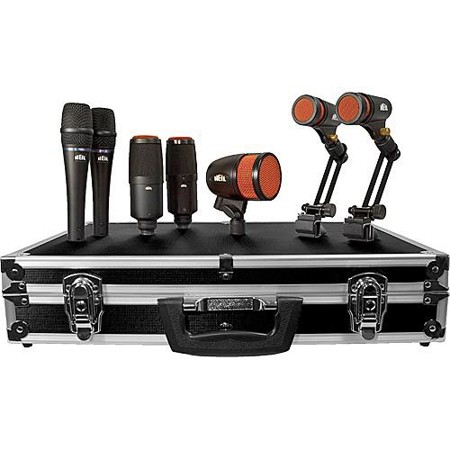

Heil Sound HDK-7 Standard Dynamic Drum Cardioid Microphone Kit, Includes 2x PR 22 Handheld, 2x PR 28 Drum, 2x PR 30B Studio, PR 48 Kick Drum Microphones, Case

SKU: HEHDK7

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Heil Sound HDK-7 Specifications

PR 22 Handheld Microphone

PR 22 Handheld Microphone

Jump to...
  • Output Connection

    3 pin XLR

  • Element Type

    Dynamic

  • Frequency Response

    50 Hz - 18 kHz

  • Polar Pattern

    Cardioid

  • Rear Rejection @ 180 degrees off axis

    -30 dB

  • Impedance

    600 ohms balanced

  • Output Level

    -55 dB @ 1 kHz

  • Max SPL

    145 dB

  • Weight

    14 oz (396g) Each

PR 28 Drum Microphone

Jump to...
  • Output Connection

    3 pin XLR

  • Element Type

    Dynamic

  • Frequency Response

    55 Hz - 18 kHz

  • Polar Pattern

    Cardioid

  • Rear Rejection @ 180 degrees off axis

    -35 dB

  • Impedance

    600 ohms balanced

  • Output Level

    -51 dB @ 1 kHz

  • Max SPL

    142 dB

  • Weight

    9.6 oz (272g) Each

PR 30 B Studio Microphone

Jump to...
  • Output Connection

    3 pin XLR

  • Element Type

    Dynamic

  • Frequency Response

    40 Hz - 18 kHz

  • Polar Pattern

    Super Cardioid

  • Rear Rejection @ 180 degrees off axis

    -40 dB

  • Impedance

    370 ohms balanced

  • Output Level

    -51 dB @ 1 kHz

  • Max SPL

    146 dB

  • Weight

    9 oz (255g)

PR 48 Kick Drum Microphone

Jump to...
  • Output Connection

    3 pin XLR

  • Element Type

    Dynamic

  • Frequency Response

    30 Hz - 8.5 kHz

  • Polar Pattern

    Cardioid

  • Rear Rejection @ 180 degrees off axis

    -40 dB

  • Impedance

    250 ohms balanced

  • Output Level

    -59 dB @ 1 kHz

  • Max SPL

    148 dB

  • Weight

    20.33 oz (576g) Each

About Heil Sound HDK-7

The Heil HDK-7 drum mic kit includes everything you will need to record all drums & cymbals, and it also is an incredible collection of mics to best capture live drum performances. Given the heart of any drum kit is the kick drum, your heart will beat strong & true through the PR 48. The PR 48 has a very large 1.5" diaphragm suspended in a vulcanized rubber mounting to eliminate unwanted vibrations.

You will hear the beater like never before and you'll soon realize this is the true sound of your kick drum; the way it should sound. Great SPL protection, plus superior side & rear noise rejection keeps the natural drum sound intact, with frequencies dropping off at 8.5k Hz to further assure the elimination of unwanted internal drum ringing. The HDK-7 includes [two] award winning PR 22's for flawless snare or tom mic'ing, and also [two] PR 28's for tom, snare, djembes, congas and more.

There are also [two] PR 30B's to capture cymbals, and/or for overhead mic'ing. The microphones in the HDK-7 are all dynamic mics that sound like condensers and ribbon mics, but have extreme tolerance and SPL protection, with immaculate separation and articulation. The HDK-7 comes with two (patent pending), HH-1 mounts to place mics on the rim or the hoop mount for solid, secure, mic placement. The complete HDK-7 kit comes in an (included), beautiful black hard-shell carrying case. Rock on, jazz it up, or bang your head with the best drum mics available.

- PR 22 Handheld Microphone -
The HEIL PR 22 microphone is a revolutionary dynamic cardioid microphone incorporating a large (1.125") diaphragm, patent-pending ISO BAND isolation mounting that offers greater articulation throughout its entire wide, flat, frequency range with very low handling noise. Additionally, noise directed at the rear of the mic is virtually eliminated through a combination of special porting & phasing plug design. This is a sound professional's dream, come true.

Best-in-class rear noise rejection means you'll get more sound out of the PR 22 before feedback occurs. The PR 22 microphone has exceptional mids and highs, but not at the expense of sacrificing any of its frequency range. The PR 22 is an extraordinarily "stage-friendly" mic that can take a full-on snare hit & deliver the richest sounding snare with no overload, and no compromise. When using a pair of PR 22's on a snare (one top-mount & one below), they produce what some say is the best snare sound available at any cost, with little or no EQ.

The PR 22 is able to deliver rich vocals, warm & accurate guitar, crisp snare drums with depth, stellar piano, shimmering cymbals, and more, to the board like never before. Whether you're recording with the PR 22 in the studio or using it for live application, your ears will tell you it is a cut above all the "legacy microphones".

With the PR 22 you get a leatherette carrying bag, a mic clip and three acoustically identical metal screens (Black, Silver, and Gold).

- PR 28 Drum Microphone -
The Heil PR 28 microphone is made specifically for toms, and snare drums along with other percussion instruments like bongos, conga, timbale, djembes and more. However, the PR 28 is suitable for other uses as well where a wide frequency range and immaculate isolation is desired.

Heil Sound engineered the PR 28 with a dual suspension dynamic element to eliminate unwanted vibrations and noise, even in the most extreme settings; like when placed above or beneath drums with close proximity monitors, bass cabinets and other sound sources. In fact, the PR 28 dutifully isolates the target drum from neighboring drums just inches away, with precision and ease.

The PR 28 has the ability to withstand very high SPL's, meaning it can bring out the best in even the hardest hitting drummers without overload, or bleed-through. When coupled with the optional (patent-pending) HH-1 Mount, it will easily mount and remain exactly where you need it on the drum.

The PR 28 can be purchased separately, or in the HDK drum kit series, (HDK-5, HDK-7 and HDK-8), and is available with a variety of microphone mounting options.

With the PR 28 you get a world class drum microphone with built-in mic stand clip in a foam-fitted box.

- HH-1 B Studio Microphone -
The Heil HH-1 drum mic mount is patent pending, in part, for its utility in mounting microphones to drums securely. The HH-1 offers several options to mount, including via the rim, or to the mounting hoops of the drums. The fully adjustable HH-1 was developed with input from jazz drummer and producer, Hunter Herman (hence the HH-1 designation). Like most drummers, Mr. Herman had (in the past), been forced to use methods of mounting drum mics that left him wanting better solutions. Like all producers, he demands mic placement that best captures drum sounds.

The HH-1 addresses the need to place drum mics in perfect proximity to the drum to get the desired sound, while ergonomically mounting, and remaining fully adjustable. Whether top mounting, or for when you need a little space between the drum & mic, and/or you're mounting from underneath, you can place your mic with confidence. Mic'ing drums can be challenging considering variables in drum design, number of drums & even the style of the drummer.

With the HH-1, you can get into the tightest of tight spots, and you can place microphones where they are going to operate at their optimum level of performance. In live situations, the HH-1 lets sound technicians do great work, without fear of mic stands moving around, or worrying about inferior mounts that tend to break. When you hook up with the rock solid HH-1 mic mount from Heil Sound, You can forget about your mic'ing troubles and start making music.

Accepts 1/4"-20 and 5/8"-27 standard mic threads.

- PR 30 B Studio Microphone -
Everything you love about the HEIL PR 30 dynamic super-cardioid (end-fire) microphone is incorporated into the PR 30B. The only difference is the PR 30B mic comes in a beautiful matte black finish, with red mesh grills. The same magnet composition as the PR 30 (neodymium, boron, and iron), works with the large element to produce a smooth, flat, response throughout the entire wide frequency range. The PR 30B is perfect as a guitar, or bass amplifier cabinet microphone, as well as great for drums and cymbals. It is fantastic for vocals and professional broadcasting.

The HEIL PR 30B microphone (like the PR 30), has a humbucking coil, in addition to the large shock-mounted diaphragm. You can be confident electronic noises will not affect your mix when using the PR 30B near PC monitors in the studio, nor near neon lights, etc. Vibration is NOT an issue with the PR 30B. Additionally, the PR 30B can handle 146 dB of SPL.

The PR 30 B will handle multiple mic'ing tasks for live, as well as for recording jobs. The PR 30B has the same great sound and internal design as the PR 30, plus, it looks cool & offers a different color option for setting up in front of guitar & bass cabinets, drums, and for vocals and broadcasting. The PR 30B is available individually and is also included in the HDK-7 and HDK-8 Drum Mic Kits. Its finish matches the other mic's included in the HDK series.

The PR 30B comes with an adjustable mic holder in a foam-fitted protective box.

- PR 48 Kick Drum Microphone -
The Heil PR 48 kick drum microphone is the end-result of what happens when you start with the finest kick drum microphone components listen to what your customers want based on real-world drumming conditions, and put it all together. Heil incorporates suggestions from some of the best drummers and drum & sound technicians in the world into the PR 48. That and two years of "in the field" research refining these suggestions, yields the PR 48, ready to take on any kick drum.

The PR 48 contains a large vulcanized double shock-mounted diaphragm element, impervious to external vibration and noise. The PR 48 also has our best rear noise rejection, and excellent (148 db) SPL handling; all housed in a solid flat black emron steel body with red screens on an adjustable swivel-mount. Heil adds passive internal low pass filters to create rises in the frequencies where the kick drum's sound benefits most. The kick beater is also represented like never before in the mix through this filtering. This is a great rock kick drum mic, but also is at home serving country, jazz, funk, blues and metal drummers with a kick drum sound that has no equal.

While some kick drum microphones judge themselves by how well they can handle EQ; how about a kick drum mic that sounds fantastic with NO EQ! As a finishing touch, the PR 48 has a 45 degree angle XLR plug to allow for easier XLR connecting during setup. The PR 48 can be purchased separately, or in the HDK drum kit series, (HDK-5, HDK-7 and HDK-8), and is available with a variety of microphone mounting options.

With the PR 48 you get the built-in metal swivel mic stand mount connected.

What's in the box:

  • 2x PR 22 Handheld Microphone
  • 2x Microphone Clip
  • 6x Metal Windscreens
  • 2x PR 28 Drum Microphone
  • 2x HH-1 Mounts
  • 2x PR 30B Studio Microphone
  • Microphone Stand Clip
  • Foam-Fitted Box
  • PR 48 Kick Drum Microphone
  • 2x HM Mic Clips
  • Black Hardshell Carrying Case
  • (XLR Cable Not Included)
  • Heil Sound 3 Year Limited Warranty for Microphones and 1 Year Limited Warranty for Accessories
