HEDEN M21VE-L 256-3.3k Lens Motor with Dual-Pin Hub
See all Heden items

HEDEN M21VE-L 256-3.3k Lens Motor with Dual-Pin Hub

SKU: HEM21200
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the dual-pin hub on the HEDEN M21VE-L Lens Motor?

The dual-pin hub on the HEDEN M21VE-L Lens Motor provides greater flexibility and reliability when attaching it to a camera or other device. It enhances the overall performance and stability of the lens motor.

Can the snap-on gears of the HEDEN M21VE-L Lens Motor be mounted on either side?

Yes, the HEDEN M21VE-L Lens Motor features interchangeable snap-on gears that can be mounted on either side of the gear housing. This adds to the adaptability and versatility of the lens motor.

What makes the HEDEN M21VE-L Lens Motor a good choice for drone operators?

The HEDEN M21VE-L Lens Motor is a popular choice among drone operators due to its lightweight and compact design. Its size and weight allow for easy integration with drone equipment and optimal performance in aerial photography and videography.

What additional modules are available for the HEDEN M21VE-L Lens Motor?

The HEDEN M21VE-L Lens Motor comes supplied with a 0.8 gear module. Additional 0.4, 0.5, 0.6 modules are available as extras, offering a range of options to suit various photography and videography needs.

What is the purpose of the encoders and resistors in the HEDEN M21VE-L Lens Motor?

The encoders and resistors in the HEDEN M21VE-L Lens Motor are designed to suit specific requirements. They help to enhance the performance of the lens motor, providing smooth and precise control over the focusing and zooming of the camera lens.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

HEDEN M21VE-L Specifications

  • Color

    Black

  • Compatibility

    HEDEN Carat
    HEDEN Ymer
    Preston
    Bartech
    FreeFly MoVI

  • Power Source

    Proprietary Interface

  • Mounting

    1x 19mm Rod Bracket with 15mm Insert

  • Torque

    1.0nm

  • Connector

    LEMO 7 pin connector

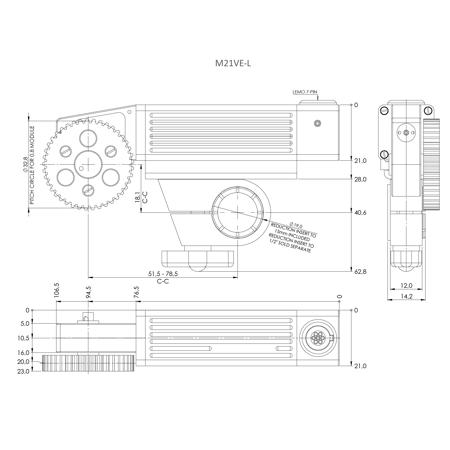

  • Dimensions

    Body: 4.2 x 1.1 x 0.8" (106.5 x 28 x 21 mm)
    With Gear Housing: 4.2 x 1.3 x 0.8" (106.5 x 34 x 21 mm)

  • Weight

    4.8 oz (135.5g)

  • UPC Code

    682863424522

About HEDEN M21VE-L

The HEDEN M21VE-L has been upgraded and comes now with dual pin hub, together with a snap on gear with dual pin lock mechanism, to make it even more reliable. The M21VE-L is a smaller and lighter version of the M26VE, made for professional film and broadcasting cameras.

Its light weight makes the M21VE-L a popular choice for drone operators and its size lends especially well for very crowded spaces. Mounts vertically on a 19 mm (0.75") rod without the need of tools. The accompanying bracket reduction insert will fit on a 15 mm (0.59") rod and additional sizes are available in our accessories section. Interchangeable snap on gears, that can be mounted on either side of the gear housing, adds to the versatility of the Heden motors. Supplied with a 0.8 gear module and with 0.4, 0.5, 0.6 modules available as extras. Comes with a variety of encoders and resistors to suit your need.

HEDEN M21VE-L Features

  • The M21VE-L is a smaller and lighter version of the M26VE
  • Made for professional film and broadcasting cameras
  • Its light weight makes the M21VE-L a popular choice for drone operators

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • The M21VE-L is a smaller and lighter version of the M26VE
  • Made for professional film and broadcasting cameras
  • Its light weight makes the M21VE-L a popular choice for drone operators

What's in the box:

  • HEDEN M21VE-L 256-3.3k Lens Motor with Dual-Pin Hub
  • Superlight 0.8 MOD Gear
  • 19mm Rod Bracket with 15mm Insert
  • HEDEN 1 Year Limited Warranty
