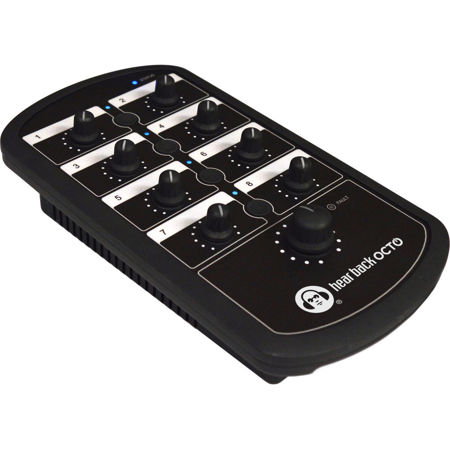

Hear Technologies Hear Back OCTO Mixer, 8 Channel Personal Monitor for Hear Back OCTO Hub

Stereo, unbalanced, 10 Kohms typical

+4 dBu optimal, +22 dBu max

8 Ohms: 342 mW with THD <0.01%, 412 mW with THD <0.1%
16 Ohms: 731 mW with THD <0.01%, 783 mW with THD <0.1%
25 Ohms: 1.07W with THD <0.01%, 1.25 W with THD <0.1%
32 Ohms: 1.37 W with THD <0.01%, 1.6 W with THD <0.1%
50 Ohms: 1.26 W with THD <0.01%, 1.88 W with THD <0.1%

100 Ohms: 971 mW with THD <0.01%, 1.03 W with THD <0.1%
200 Ohms: 512 mW with THD <0.01%, 537 mW with THD <0.1%
600 Ohms: 185 mW with THD <0.01%, 190 mW with THD <0.1%

20 Hz to 20 KHz, +/-0.16 dB

0.004% typical at 1 kHz, +18 dBu
0.008% typical, 20 Hz - 20 kHz, +4 dBu

0.02% typical at +4 dBu, 60 Hz / 7 kHz

Less than -85 dB @ 1 kHz

Less than 1.5 mSec

Standard mic stand (5/8" 27 threads per inch) or desk mounted

5.1 x 9.3 x 2.52" (129.5 x 236.2 x 64mm)

1 lb ( 0.45kg)

812737001263
