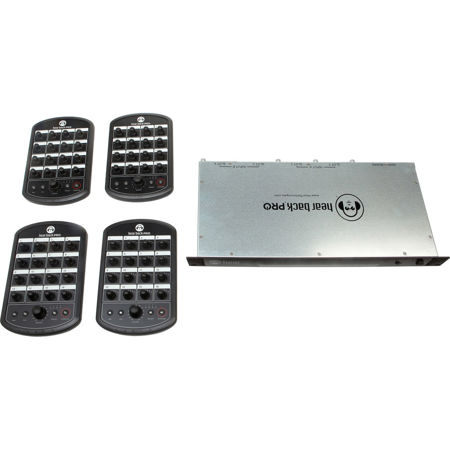

Hear Technologies Hear Back PRO 4-Pack Personal Mixing System Includes 4 PRO Mixers, Pro Hub Mainframe, AES/EBU Card

Where precision and versatility meet, the Hear Back PRO 4-Pack Personal Mixing System stands out as the ultimate solution for professional audio monitoring. This state-of-the-art system is designed to cater to the needs of musicians and audio engineers alike, offering a seamless and intuitive experience that requires no steep learning curve, even for those new to personal mixers.

The Hear Back PRO system is built on a robust Gigabit Ethernet network, ensuring rapid and reliable audio data transmission and setting the stage for a wide array of future enhancements. The core components of this system are the PRO Hub Mainframe and the PRO Mixers, which together create a powerful and flexible audio monitoring environment.

The PRO Hub Mainframe is the heart of the system, featuring a modular design with four card slots that can be customized with various input and output cards to suit any setup. The Hub is capable of powering and sending signals to up to 32 PRO Mixers, with each mixer connecting via a single standard Cat5E/6 cable for simplicity and ease of setup. For larger configurations, the HBus In/Out ports allow for daisy-chaining multiple Hubs, enabling virtually unlimited system expansion.

With the latest V5 Firmware, the Hear Back PRO system becomes even more dynamic. Each PRO Mixer knob can be assigned to control any mono channel, a stereo pair, or a submix of up to 16 channels. This flexibility allows for personalized configurations and the ability to add up to 128 input channels to the system by incorporating additional Input Cards and Hubs.

Key features of the Hear Back PRO system include:
- Panning width and stereo placement for precise audio imaging.
- Solo in place functionality for isolating individual channels.
- Multiple intercom capabilities for clear communication between users.
- The ability to copy and paste presets from one Mixer to another for quick setup.
- Signal presence indicators on all channels for at-a-glance monitoring.
- Grouping function to synchronize settings across multiple Mixers.
- An iOS App for convenient remote control and ease of use.

The PRO Mixer itself is a powerhouse, with Firmware V5 or later offering local control of up to 138 channels of audio, including a stereo AUX IN and up to four stereo intercom inputs. Users can submix up to 16 stereo channels on each of the 16 knobs, providing unparalleled control over their mix. The Mixer also boasts high-quality 24-bit Delta-Sigma D/A and A/D converters, storage for up to four recallable presets, and both 1/8" and 1/4" headphone outputs with ample power.

The PRO Hub Mainframe, with Firmware V5 or later, supports up to 32 input channels per Hub and allows for daisy-chaining of multiple Hubs for extensive input channel configurations. It also offers a selection of user-selectable sample rates and features 16 RGB LEDs for intuitive channel metering.

The AES/EBU Card included in the system enables the PRO Hub to interface with professional audio equipment using the multi-channel AES/EBU protocol. This card can be configured as either 16 inputs or 16 outputs and supports a range of sampling rates for maximum compatibility.

Lastly, the Network Card is essential for connecting the PRO Mixers, providing PoE+ power and digital audio over a single Cat6 Ethernet cable, capable of runs up to 566 feet. This card's inclusion ensures that the Hear Back PRO system is not only powerful but also highly scalable and adaptable to any professional audio environment.

The Hear Back PRO 4-Pack Personal Mixing System is engineered for those who demand the best in audio monitoring, offering a comprehensive, modular, and user-friendly solution that stands the test of time.
