HEDEN VLC-1L Mk1 LANC controller Kit Includes VM35-256 Motor, VM35 MK Single Zoom Bracket for Sony FS5/7/7II and Fujinon MK

Heden VLC-1L VM35 Lens Control System
This Heden VLC-1 VM35 kit is set up for use on Sony FS5/FS7/FS7II with a zoom lens bracket for the Fujinon MK series lenses.

The Heden VLC-1 VM35 Lens Control System was developed for use on the Sony FS5/FS7. With the pre-mounted lens brackets the VM35 motor is easily moved from lens to lens within seconds, without tools. The VLC-1L with adjustable top speed, override function and ramping make it an ideal tool for smooth and precise operation in high, or low, speeds.

The VLC - Versatile Lens Control system - for Sony FS5/FS7/FS7II
The new Heden lens control system was developed with the user in mind. We created a flexible system to meet new demands and the same system can be used to control either zoom, focus or iris. The 99 position top speed limit is easily adjustable from the hand grip or on the controller in order to optimize both creeping slow zoom or very quick movements, with precise control.

The motor override function lets the operator to manually move the lens by hand in parallel with motor control without losing calibration. The system works stand alone on any camera with 3:rd party LANC controller or integrated with the Smartgrip on Sony FS5/FS7/FS7II by LANC protocol. Flexible controller positioning allows for good weight distribution.

Silent, low weight and flexible. Adjustable torque, speed and of course with automatic calibration.

The controller power cable has a DTAP connector. If V-lock batteries are used there is normally D-tap out available.

If you are using the cameras internal battery, we can recommend the following batteries:
• Swit S-8U63 with D-tap adaptor S-7105
• Hawk-Woods BP-75UX

- VM35-256 motor -
A digital zoom or focus motor that mounts on the lens. We created a small, light, very powerful and fast digital zoom motor where we kept the esthetics and quality of our legendary M26T zoom motor.

- Bracket -
The bracket is designed to be attached to 15mm rods, we also have tailored lensbrackets for specific lenses. Currently we offer the following brackets:

• VM35 MK Single Zoom Bracket - Zoom on Fujinon MK 18-55 and MK 50-135

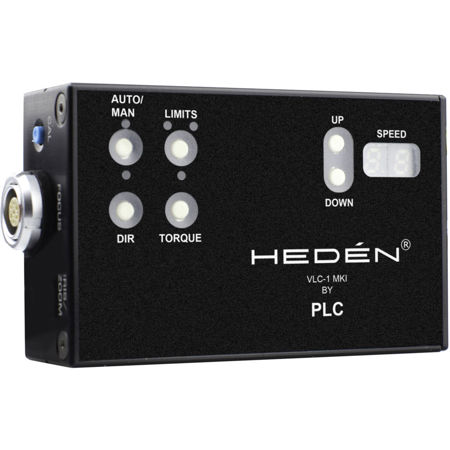

- VLC-1L Mk1 LANC Controller -
The Heden VLC-1L Mk1 LANC controller connects to any third-party controller using LANC. It was originally developed for Sony FS5/FS7/ FS7II and is controlled with the zoom-rocker on the Smart Grip. The integrated motor override function allows the operator manual control of the lens in parallel with the motor without losing calibration. The ramping function allows smooth acceleration. The 99 position top speed limit is easily adjustable in order to optimize both creeping slow zoom or very quick movements, with precise control. Flexible controller positioning allows for good weight distribution.

The controller power cable has a DTAP connector. If V-lock batteries are used there is normally D-tap out available.

If you are using the cameras internal battery, we can recommend the following batteries:
• Swit S-8U63 with D-tap adaptor S-7105
• Hawk-Woods BP-75UX

For LANC control we recommend Manfrotto or Libec controllers.

• CE marked and FCC compliant

- P-Tap Power Cable -
Power Cable for Heden VLC-1L Mk1 Lanc controller

• 2 pin standard connector to P-tap

- VLC MK1 FS5/FS7 Lanc-split cable -
Split Cable for Heden VLC-1L Mk1 Lanc controller and Sony FS5/FS7

• 7 pin connector to 2.5mm Lanc Male + Female
• For use with Lanc camera, works with the smartgrip on Sony FS5/FS7
