HighPoint RocketStor 6328 Specifications

  • Thunderbolt Port

    Dual Thunderbolt Ports

  • External Port

    Dual Mini-SAS Ports

  • Transfer Rates

    Each Mini-SAS Port: Up to 4x 6Gb/s

  • Host Bus Type

    Dual 20Gbps Thunderbolt Ports

  • LED Indicator

    LED Light - Blue -Power Status

  • RAID Levels

    H/W 0, 1, 5, 6, 10, 50 & JBOD

  • Operating System

    Supports Mac OS X 10.8.5 & later / Windows 7 & later (PC only)

  • Material

    Aluminum

  • Protocols

    SAS/SATA (Note: Does not support 12Gb/s SAS HDD's)

  • UPC Code

    643653632817

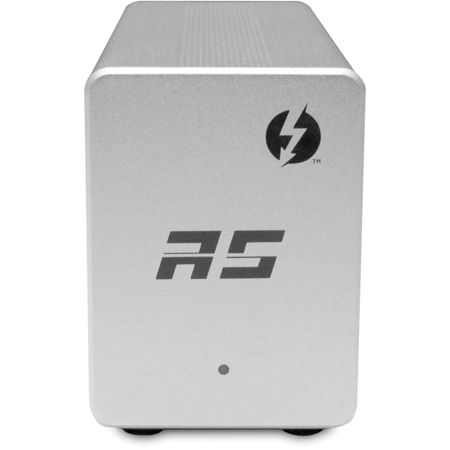

About HighPoint RocketStor 6328

The HighPoint RocketStor 6328 delivers the uncompromised performance and superior data protection demanded by professional 4K media applications. The RocketStor 6328 is the industry's most flexible and scalable Thunderbolt storage solution. Customers can easily fine tune SAS and eSATA storage configurations for Maximum performance or Capacity!

Flexible Storage Expandability
The second Mini-SAS port is capable of supporting a second 4-Bay Tower enclosure and 4 SAS/SATA hard drives and SSD's or can be used to add an LTO 5/6 Tape Drive for archiving purposes!

DVMode Performance Assurance Technology
DVMode maintains consistent, sustained high-performance data transfer - a key component of any storage system dedicated to post production applications.

Integrated Hybrid Solution: Media selection is not restricted to hard disk drives!
RocketStor 6328 Thunderbolt 2 Hardware RAID Adapters are fully compliant with the Industry Serial Attached SCSI Specification, which allows them to support LTO Tape drives and SAS/SATA Hard Disk Drives, simultaneously, for Thunderbolt capable Mac platforms and Mac OS X 10.9 and later. Hybrid storage connectivity accommodates both SAS/SATA SSD's and hard drives and LTO 5/6 Tape Drive configurations across a variety of platforms. Customers can utilize high-speed RAID storage for media editing then immediately archive assets to an LTO Tape drive, all from a single Thunderbolt connection!

Additional Features
• Dual Thunderbolt 2 Ports
• Dual External Mini-SAS Ports
• Hardware RAID 0, 1, 5, 6, 10, 50 & JBOD
• Supports any SAS and SATA HDD & SSD
• Comprehensive RAID Storage Management Suite
• Comprehensive Storage Expansion: Mini-SAS, Port Multiplier & SAS Expander
• DVMode Performance Assurance Technology
• Integrated Hybrid Storage Solution
• Mac & PC Compatible
• Bootable RAID Array Support
• Supports OCE / ORLM
• 4Kn Drive Compatible

What's in the box:

  • HighPoint RocketStor 6328 Thunderbolt 2 to Dual Mini-SAS Port H/W RAID Adapter
  • Quick Installation Guide
  • External Power Adapter
  • HighPoint 2 Year Parts and Labor Limited Warranty
