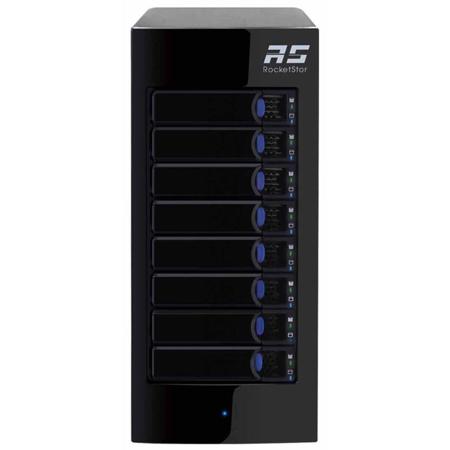

HighPoint RocketStor 6418TS 8-Bay 6Gb/s SAS/SATA Turbo RAID Class Storage Tower Enclosure with RocketRAID 2722 Card, Supports RAID 0, 1, 5, 10, 50, JBOD

SKU: HIRS6418TS

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

HighPoint RocketStor 6418TS Specifications

  • Port Technology

    6Gb/s Mini-SAS

  • Port Type

    2x External Mini-SAS (SFF-8088)

  • RAID Level

    0, 1, 5, 6, 10 and JBOD (RAID 6 support limited to PC platforms)

  • Max.Capacity

    Up to 64 TB

  • Number Of Drives

    Up to 8

  • Drive Interface

    SAS, SATA

  • Drive Form Factor

    3.5" & 2.5"

  • Power Supply

    AC INPUT: 100-240V - 5A 50/60Hz; DC OUTPUT: 250W

  • Cooling Fans

    80x80x25mm, Dual Fans

  • Material

    Brushed Aluminum Housing

  • RAID Management Suite

    BIOS/Firmware configuration tool, Browser-Based management tool, CLI (Command Line Interface) scriptable configuration tool, API package

  • SMTP

    Email Alert Notification

  • Alarm Buzzer

    Yes

  • Drive LED Indicators

    Power, Present and Active LED indicator

  • Operating System Support

    Window server 2008 and Window 7 and later
    Linux: RedHat Enterprise, Open SuSE, Fedora Core, Debian, Ubuntu / Linux Driver embedded into Kernel 3.9.4 and later
    Driver embedded into FreeBSD 9.0 and later
    Mac OS X 10.6 and later (Driver embedded into Mac OS X 10.9 and later)

  • Advanced RAID Feature 1

    Configurable RAID Block Size up to 1MB
    Flash ROM for Upgradeable Firmware
    DV Mode Technology
    Optional Battery Backup unit retains data when power outage occurs
    NVRAM with Write Journaling enhances RAID integrity
    Storage Health Inspector
    Redundant RAID Configurations
    Bootable RAID Array
    EFI Boot for Mac Platform
    Multiple RAID Partitions supported

  • Advanced RAID Feature 2

    Online Array Roaming
    Online RAID Level Migration (ORLM)
    Online Capacity Expantion (OCE)
    RAID Initialization Background / Foreground / Quick
    Global Hot Spare Disk support
    Automatic and configurable RAID Rebuilding Priority
    Disk Format compatible: 512, 512e, 4Kn
    Larger than 2TB Drive and RAID Array support
    Spin down Massive Arrays of Idle Disks support
    Native Command Queuing
    Write Back and Write Through

  • Operating Temperature

    5 to 45 deg. C / 41 to 113 deg. F

  • Non-Operating Temperature

    -40 to 65 deg. C / -40 to 149 deg. F

  • Operating Relative Humidity

    8% - 90% RH (Non-Condensing)

  • Non-Operating Relative Humidity

    5% - 95% RH (Non-Condensing)

  • Certification

    CE, FCC, RoHS

  • Dimensions (D x W x H)

    9.37 x 5.67 x 12.80" / 23.80 x 14.40 x 32.51cm

  • Weight

    14.39lbs / 6.53kg

  • UPC Code

    643653641833

About HighPoint RocketStor 6418TS

The RocketStor 6418TS is a high-performance RAID solution designed for Mac and PC Platforms and is ideal for applications that require reliable, high-performance RAID storage. The RocketStor 6418TS solution features a robust 8-Bay Tower enclosure, RocketRAID 2722 PCIe x8 6Gb/s SAS/SATA RAID adapter, a comprehensive user friendly RAID Management Interface and industry leading Turbo RAID technology.

• PCIe 2.0 x8 RAID Controller Card optimizes SAS/SATA 6Gb/s SSD & HDD storage performance
• Supports RAID 0, 1, 5, 10, 50, JBOD
• Supports up to eight 8TB SAS/SATA HDD via Hot-Swappable drive bays and up to 64TB of storage capacity
• Enables Storage Capacity Expansion and Changing RAID protection modes on the-fly for both PC and Mac
• Configurable, Advanced RAID Feature optimize RAID efficiency for various storage applications
• Includes Enterprise Class 3-Year Product Warranty Coverage

Robust & Versatile Tower Enclosure
The stylish, high-quality brushed aluminum chassis features smart and quiet cooling fans, an efficient internal power supply and a compact form-factor that is ideal for portable applications. The external 6Gb/s Mini-SAS port and eight removable hot-swap bays support any 2.5" or 3.5" Enterprise /NAS class SATA / SAS Hard Drive or SSD.

Customers have the freedom to use their choice of SAS or SATA storage device; SSD's for performance or large hard disks for maximum capacity, from all major drive brands including HGST, Seagate, Toshiba and WDC. Built in LED's and audible alarms are provided to quickly notify the administrator in the case of hardware failure or environmental warning such as power loss or overheating.

User-Friendly Management Suite
HighPoint's user friendly RAID Storage Management Suite is available for all major operating systems and includes BIOS-level management, a Web-based RAID interface and optional of CLI packages for Linux and FreeBSD platforms.

The intuitive Web-based interface, known simply as the "WebGUI", works with any modern browser and allows administrators of any skill level to quickly and easily monitor, maintain and configure RAID arrays and individual storage devices.

Complete Turnkey RAID Storage Solution
RocketStor Turbo RAID Class Tower enclosures are complete turnkey solutions - just add drives and you are ready to go. Each retail kit includes an external 8-Bay tower enclosure, PCIe 2.0 6Gb/s SAS or SATA RAID HBA and installation kit with all necessary cabling.

What's in the box:

  • HighPoint RocketStor 6418TS 8-Bay 6Gb/s SAS/SATA Storage Tower Enclosure
  • RocketRAID 2722 Card
  • 8x Drive Trays
  • 2x Sets of Mounting Screws for SSD and HDD
  • 2x Mini-SAS Cable
  • UL Power Cord
  • Low Profile Bracket
  • Quick Installation Guide
  • HighPoint 3 Year Parts & Labor Limited Warranty
