Hawke Sport Optics 5-30x50 Frontier 30 SF Riflescope, Matte Black with Illuminated 2nd Focal Plane TMX Reticle, Side Parallax Focus, 30mm Center Tube

• 21 layer Fully Multi-Coated 6x ratio optical system
• Side Focus control for parallax adjustment
• 30mm mono-tube chassis for superior strength
• Long eye relief for high recoil and magnum calibers
• Glass etched reticle with red illumination
• 6 levels of brightness with off positions in-between
• 1/10 MRAD exposed and locking turrets
• Fast focus eyebell and high torque zoom ring
• Waterproof, Shockproof, Nitrogen purged
• All caliber rated

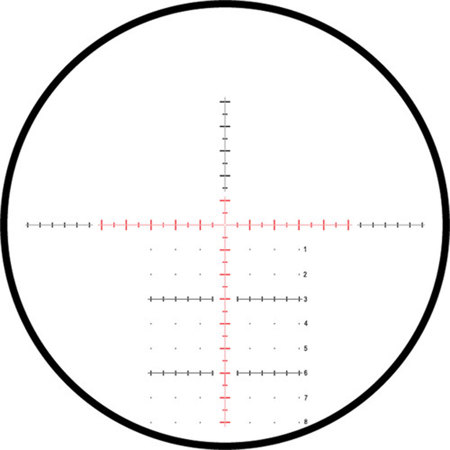

TMX Reticle
The TMX reticle was developed for long range, centrefire shooting and around the common principles of Mil-Dot spacing. As with Mil-Dot spacing, the series of hash marks represent a unit of angle called an mrad (milliradian) or mil for short. This is equal to a gap of 3.6 inches at 100 yards, or 3 feet at 1,000 yards. When magnification is set to 10x the TMX reticle allows for 16 mil spacing of hold-over to the outer edge of the field of view, along with 6 mil spacing of windage in each direction.

When used at 20x magnification it allows for 8 mil spacing of hold-over to the outer edge of the field of view, along with 3 mil spacing of windage in each direction, the TMX is a versatile reticle that provides aim points no matter how extreme the conditions.
