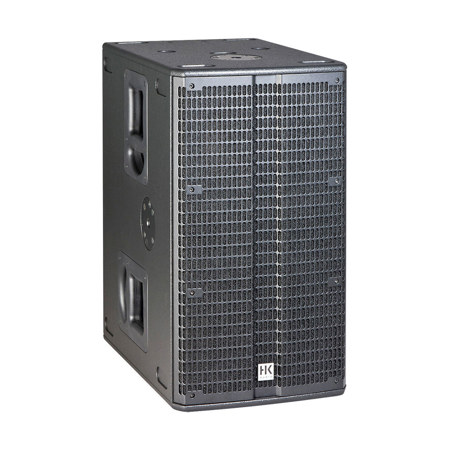

HK Audio LINEAR SUB 2000 2x12" 1400W Dual Bandpass Passive Subwoofer, Jet Black

SKU: HKARSUB2000U MFR: LINEAR-SUB-2000-U
Earn VIP Reward Points

Key Features

  • Experience powerful, deep bass with the HK Audio LINEAR SUB 2000 subwoofer.
  • Enjoy enhanced audio with this passive subwoofer's dual 12" speakers for home theater.
  • This compact subwoofer delivers a peak SPL of 135 dB for immersive sound quality.
  • Perfect for live sound, this 1400W subwoofer ensures robust, clear low-end frequencies.
  • The durable birch plywood cabinet of this subwoofer is built to last, gig after gig.
  • Easily integrate this jet black subwoofer with your existing sound system via Speakon.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$129.99

4 Year

$159.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HK Audio LINEAR SUB 2000 Specifications

Characteristics

Characteristics

Jump to...
  • Concept

    Passive subwoofer

  • Cabinet principle

    Band pass

  • Power handling RMS

    700 W

  • Power handling program

    1400 W

  • Nominal impedance

    4 Ohms

  • Max. SPL average

    134 dB

  • Max. SPL peak

    135 dB

  • Sensitivity 1 W/1 m

    104 dB

  • Crossover frequency

    Active crossover with controller amp

  • Frequency range -6 dB

    49 Hz - 125 Hz

  • Frequency range -10 dB

    39 Hz - 160 Hz

Components

Jump to...
  • Low frequency

    2x 12" cone speaker, 2.5" voice coil

Connections

Jump to...
  • Input

    1x NL4 Speakon

  • Output/parallel output

    1x NL4 Speakon

  • Pin assignment

    1+/-

Amping/Presets

Jump to...
  • Lab.gruppen

    IPX Series, IPD Series, Lake

Amping/Filter Sheets

Jump to...
  • Lab.gruppen

    IPX Series, IPD Series (limiter settings incl.)

Physical

Jump to...
  • Color

    Jet Black (RAL 9005)

  • Material

    Cabinet: Birch plywood

  • Cabinet surface

    Acrylic enamel

  • Cabinet features/rigging

    1x pole mount M20

  • Carrying handles

    4x HK Audio MultiGrip

  • Front grille

    Steel front grille, backed with acoustic foam

  • Dimensions (W x H x D)

    19.9 x 31.71 x 24.03" (50.6 x 80.6 x 61cm)

  • Weight

    100.5 lbs (45.6kg)

  • UPC Code

    4039373017557

About HK Audio LINEAR SUB 2000

The LINEAR SUB 2000 is designed as a sixth-order double bandpass and is the perfect add-on for the LINEAR 5 mid/high units. It delivers deep and punchy bass in the 50-120 Hz range. It contains two 12" long-throw woofers with a 2.5" voice coil, including a modern cooling system and a double damper for extremely precise control.

HK Audio LINEAR SUB 2000 Features

  • Sixth-Order Double Bandpass Design - Engineered for optimal bass performance and seamless integration with LINEAR 5 mid/high units
  • Powerful Low-Frequency Output - Delivers deep, punchy bass in the 50-120 Hz range for rich sound depth
  • Dual 12" Long-Throw Woofers - Equipped with 2.5" voice coils for enhanced durability and performance
  • Advanced Cooling System - Ensures efficient heat dissipation for reliable operation
  • Double Damper Control - Provides extreme precision and stability for superior sound accuracy

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful, deep bass with the HK Audio LINEAR SUB 2000 subwoofer.
  • Enjoy enhanced audio with this passive subwoofer's dual 12" speakers for home theater.
  • This compact subwoofer delivers a peak SPL of 135 dB for immersive sound quality.
  • Perfect for live sound, this 1400W subwoofer ensures robust, clear low-end frequencies.
  • The durable birch plywood cabinet of this subwoofer is built to last, gig after gig.
  • Easily integrate this jet black subwoofer with your existing sound system via Speakon.

What's in the box:

  • HK Audio LINEAR SUB 2000 2x12" 1400W Dual Bandpass Passive Subwoofer (Jet Black)
  • HK Audio 5 Year Limited Warranty
