HK Audio Linear 5 L5 112 FA 1000W 12" Top Full Range Speaker, Single
See all HK Audio items

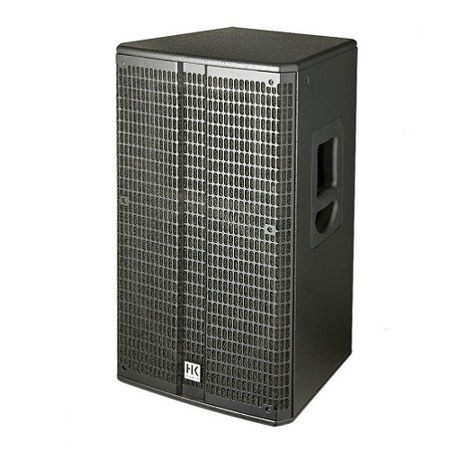

HK Audio Linear 5 L5 112 FA 1000W 12" Top Full Range Speaker, 1" Driver, Class D Amplifier, Single

SKU: HKL5112FA
Be the first to review this item

This item is no longer available.

Recommended Alternatives

HK Audio LINEAR SUB 2000: Picture 1 regular
HK Audio LINEAR SUB 2000 2x12" 1400W Dual Bandpass Passive Subwoofer, Jet Black
$1,699.00
HK Audio E 435 A INSTALL KIT: Picture 1 regular
HK Audio E 435 A INSTALL KIT Wall Mount Mid/High Array Unit with Amp Module
$1,269.00$999.00
HK Audio E 835: Picture 1 regular
HK Audio E 835 Mid/High Line Array Speaker Unit
$899.99
HK Audio FINEO FO S112: Picture 1 regular
HK Audio FINEO FO S112 1x12" 1200W Bass Reflex Passive Subwoofer, Jet Black
$799.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

HK Audio L5 112 FA Specifications

  • Max SPL calculated

    139 dB half space

  • Max SPL peak

    134 dB half space

  • Cut-off Frequency active

    1,65 kHz, 24 dB/Oktave

  • Max SPL

    127 dB half space

  • Power Rating

    1000 Watt

  • Frequency response +/- 3 dB

    64 Hz - 18 kHz

  • Frequency response -10 dB

    57 Hz - 20 kHz

  • Sensitivity LF, 1W/1m

    98 dB full pace / 104 dB half space

  • Sensitivity HF, 1W/1m

    110 dB full space / 116 dB half space

  • Low/Midrange amplifier

    650 Watt at 4 Ohm

  • HF Amplifier

    350 Watt at 4 Ohm

  • Active protection circuits

    Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection

  • Input Sensitivity

    +4dBu at Gain Centerclick / L5 System Level

  • Protection

    Subsonic 24dB/Oktave, Peak Limiter

  • Connections

    2 x XLR- Combi IN, 2 x XLR-Thru, 1 x XLR-Mix Out

  • Low/ Mid Speaker

    12" with 2.5" voice coil (4 Ohm)

  • HF Driver

    1" with 1,75" voice coil (16 Ohm)

  • Horn characteristics

    60deg.- 90deg.(asy) x 55deg. CD Horn, rotatable

  • Equalizer

    EQ switch Small Venue / High Power

  • Subsonic filter

    Yes

  • Peak limiter

    Yes

  • Amplifier

    Class D - Biamped

  • Sensitivity switch

    Yes - Line/Mic Input A

  • Rigging points

    3 x M8

  • Handles

    2 integrated

  • Enclosure

    Hybrid (birch multiplex / MDF)

  • Grille

    2mm metal grille backed with black acoustic foam

  • Finish

    Acrylic enamel, black

  • Dimensions (W x H x D)

    37 x 66.8 x 36.5cm / 14.56 x 26.29 x 14.37"

  • Weight

    52.7lbs / 23.90kg

  • UPC Code

    4039373018134

About HK Audio L5 112 FA

The HK Audio Linear 5 L5 112 FA 1000W 12" Top Full Range Single Speaker delivers the most powerful bass performance in its class. It also sports an asymmetrical horn (60deg. X 90deg. X 55deg.) tuned to optimize sound dispersion. The switchable EQ (High Power/ Small Venue) configures the cab's dynamic response to suit the application and location. High Power is always your first choice when you need maximum sound pressure and range. Small Venue is a great option for standard applications in smaller to midsized rooms and for moderate levels because it serves up a remarkably transparent and warm audio signal.

HK Audio L5 112 FA Features

  • Mid/High unit, Stand Alone System
  • 1000 Watt Class-D (650 W + 350 W, biamped)
  • 12" Speaker with 2,5" voice coil
  • 1" Driver with 1,75' voice coil
  • 134 dB Max SPL Peak at 10% THD (halfspace)
  • Asymmetrical horn (60deg.-90deg. x 55deg.), rotatable
  • Rugged hybrid (birch multiplex /MDF) housing
  • 2 separate Inputs
  • EQ switch (High Power/Small Venue)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Mid/High unit, Stand Alone System
  • 1000 Watt Class-D (650 W + 350 W, biamped)
  • 12" Speaker with 2,5" voice coil
  • 1" Driver with 1.75' voice coil
  • 134 dB Max SPL Peak at 10% THD (halfspace)
  • Rugged hybrid (birch multiplex /MDF) housing

What's in the box:

  • HK Audio Linear 5 L5 112 FA 1000W 12 " Top Full Range Speaker
  • 2 x Tilt 3/7 Pole Mount
  • HK Audio 5 Year Warranty on Registration
