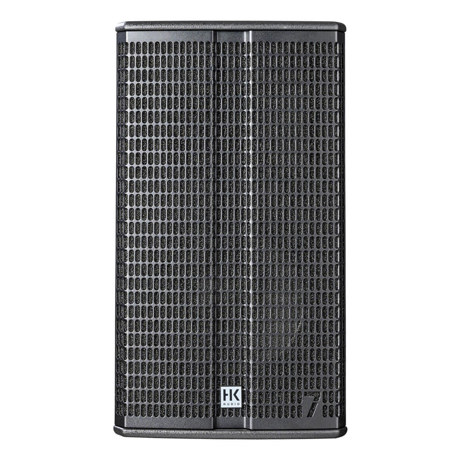

HK Audio LINEAR 7 112 FA 12" 2000W 2-Way Active Loudspeaker, Jet Black

SKU: HKLINEAR2FAU MFR: LINEAR-7-112-FA-U
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 2000W active PA speaker for any live performance.
  • Enjoy exceptional audio clarity with the LINEAR 7 112 FA's precise sound dispersion.
  • This durable PA speaker is perfect for mobile DJs needing reliable, high-quality sound.
  • Easily control your sound with the built-in DSP and remote software for optimal audio.
  • The LINEAR 7's birch plywood cabinet ensures lasting durability for touring musicians.
  • Achieve seamless connectivity with MILAN digital audio transmission for pristine sound.
See More Product Details
Special Order?Estimated to Ship: 11/03/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

HK Audio LINEAR 7 112 FA Specifications

Characteristics

Characteristics

Jump to...
  • Concept

    Active 2-way loudspeaker

  • Cabinet principle

    Bass reflex

  • Max. SPL average

    128 dB

  • Max. SPL peak

    131 dB

  • Crossover frequency

    1.6 kHz

  • Frequency range -6 dB

    64 Hz - 19 kHz

  • Frequency range -10 dB

    55 Hz - 20 kHz

  • Dispersion angle -6 dB (HxV)

    70 Degree x 50 Degree , rotatable

Components

Jump to...
  • Mid/high frequency

    1x 12" cone speaker, 2.5" voice coil

  • High frequency

    1x 1" compression driver, 1.7" voice coil

  • Horn

    Constant directivity horn, rotatable

Connections

Jump to...
  • Analog input

    1x XLR/jack combo symm.

  • Analog output

    1x XLR symm.

  • DSP output

    1x XLR symm.

  • Network input

    1x Ethercon RJ45

  • Network output

    1x Ethercon RJ45

Electronical

Jump to...
  • Preamplifier

    DSP preamplifier

  • Power amplifier

    Class D - Biamped

  • Power amplifier output peak

    2000 W

  • Power consumption

    1 A / 100-240 V nominal according to EN 62368-1

  • Maximum input level

    +20 dBu

  • Speaker protection

    RMS-/Peak-Limiter

  • Sample rate

    96 kHz

  • Latency

    under 2.6 ms

  • DSP functions

    Parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

  • Remote software

    HK Audio DSP CONTROL (Windows, Mac OS)

  • Filter presets

    Flat, Boost, Low Cut, Remote

  • Digital audio transmission

    MILAN

Physical

Jump to...
  • Color

    Jet black (RAL 9005)

  • Material

    Cabinet: Hybrid (Birch plywood/MDF)

  • Cabinet features/rigging

    Pole mount HK Audio DuoTilt 3 Degree /7 Degree , 4 x rigging point M8, Clustering-Winkel: 70 Degree

  • Carrying handles

    2x HK Audio MultiGrip

  • Cabinet surface

    Acrylic enamel

  • Front grille

    Steel front grille with anticorrosive coating and backed acoustic foam

  • Dimensions (W x H x D)

    14.57 x 26.38 x 14.57" (37 x 67 x 37cm)

  • Weight

    50.7 lbs (23kg)

  • UPC Code

    4039373022995

About HK Audio LINEAR 7 112 FA

The LINEAR 7 112 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimized for each speaker, the low-frequency range can be boosted as required.

The active and networkable LINEAR 7 112 FA full-range speaker impresses with its larger cabinet volume, which ensures a higher sound pressure level in the low-frequency range. With the 'Bass Boost' preset, which is specially tuned to the speaker, the low-frequency range can be adjusted as required and specifically increased to produce more power and depth.

HK Audio LINEAR 7 112 FA Features

  • Active full-range loudspeaker with network control
  • 1x 12" bass-midrange driver with 2.5" voice coil
  • 1x 1" compression driver with 1.7" voice coil
  • Rotatable CD horn, 70 Degree x 50 Degree (horizontal x vertical)
  • DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment
  • Modern network technology for precise control of all DSP features
  • Additional DSP-Out with the full range of features of the DSP that lets you operate a non-network-compatible loudspeaker
  • Direct access to easily selectable presets on the speaker for use in a system with LINEAR 7 subwoofers or full-range operation without a subwoofer
  • High-resolution AD/DA converters with 96 kHz, FIR filtering and low latency of less than 2.6ms
  • 70 Degree clustering bracket integrated in enclosure
  • DuoTilt for 3 Degree or 7 Degree tilt for tripod mounting
  • User friendly rigging and mounting options
  • Professional Powercon and Ethercon connections
  • Sturdy hybrid housing made of birch multiplex and MDF

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful sound with this 2000W active PA speaker for any live performance.
  • Enjoy exceptional audio clarity with the LINEAR 7 112 FA's precise sound dispersion.
  • This durable PA speaker is perfect for mobile DJs needing reliable, high-quality sound.
  • Easily control your sound with the built-in DSP and remote software for optimal audio.
  • The LINEAR 7's birch plywood cabinet ensures lasting durability for touring musicians.
  • Achieve seamless connectivity with MILAN digital audio transmission for pristine sound.

What's in the box:

  • HK Audio LINEAR 7 112 FA 12" 2000W 2-Way Active Loudspeaker (Jet Black)
  • HK Audio 5 Year Limited Warranty
