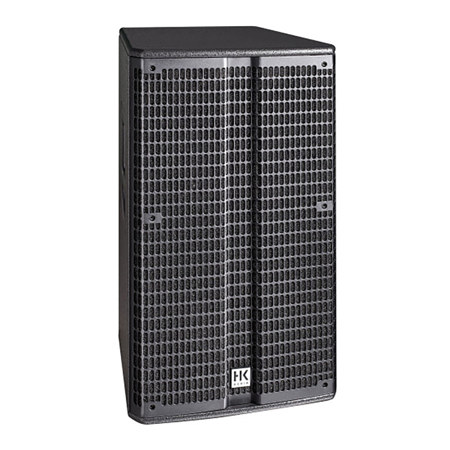

HK Audio LINEAR 5 112 F 12" 1000W 2-Way Passive Loudspeaker, Jet Black

SKU: HKLINEAR52FU MFR: LINEAR-5-112-F-U
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 1000W PA speaker, perfect for live music.
  • Get crystal-clear audio with the HK Audio LINEAR 5, designed for optimal sound quality.
  • This durable PA speaker features a robust cabinet, ready for any gig or event.
  • Enjoy versatile connectivity with Speakon inputs/outputs on this passive loudspeaker.
  • Achieve wide sound dispersion with the rotatable horn, optimizing your PA system's reach.
  • Portable design with MultiGrip handles makes this PA speaker easy to transport for DJs.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HK Audio LINEAR 5 112 F Specifications

Characteristics

Characteristics

Jump to...
  • Concept

    Passive 2-way mid/high unit

  • Cabinet principle

    Bass reflex

  • Power handling RMS

    500 W

  • Power handling program

    1000 W

  • Nominal impedance

    8 Ohms

  • Max. SPL average

    129 dB

  • Max. SPL peak

    135 dB

  • Sensitivity 1 W/1 m

    103 dB

  • Crossover frequency

    1.7 kHz

  • Frequency range -6 dB

    79 Hz - 18 kHz

  • Frequency range -10 dB

    60 Hz - 19 kHz

  • Dispersion angle -6 dB (HxV)

    60 Degree -90 Degree (asymm.) x 55 Degree , rotatable

Components

Jump to...
  • Mid/high frequency

    1x 12" cone speaker, 2.5" voice coil

  • High frequency

    1x 1" compression driver, 1.75" voice coil

  • Crossover

    High pass: 12 dB/oct., Low pass: 12 dB/oct.

  • High frequency protection circuit

    PTC circuit

  • Horn

    Constant directivity horn, rotatable

Connections

Jump to...
  • Input

    1x NL4 Speakon

  • Output/parallel output

    1x NL4 Speakon

  • Pin assignment

    1+/-

Amping/Presets

Jump to...
  • Lab.gruppen

    IPX Series, IPD Series, Lake

Amping/Filter Sheets

Jump to...
  • Lab.Gruppen

    IPX Series, IPD Series (limiter settings incl.)

Physical

Jump to...
  • Color

    Jet black (RAL 9005)

  • Material

    Cabinet: Hybrid (Birch plywood/MDF)

  • Cabinet features/rigging

    Pole mount HK Audio DuoTilt 3 Degree /7 Degree , 3 x rigging point M8

  • Carrying handles

    2x HK Audio MultiGrip

  • Cabinet surface

    Acrylic enamel

  • Front grille

    Steel front grille, backed with acoustic foam

  • Dimensions (W x H x D)

    14.57 x 26.26 x 14.37" (37 x 66.8 x 36.5cm)

  • Weight

    52.7 lbs (23.9kg)

  • UPC Code

    4039373017540

About HK Audio LINEAR 5 112 F

12"/1" full-range mid/high unit with the strongest bass range in its class and asymmetrical horn ( 60 Degree - 90 Degree x 55 Degree ) for optimized sound distribution. The switchable EQ means it can be used in stand-alone applications or in a stereo pair, as well as a system mid/high unit in conjunction with a LINEAR SUB subwoofer.

The 12"/1" full-range mid/high unit delivers the strongest bass response in its class, offering remarkable depth and impact. It also features an asymmetrical horn (60 Degree - 90 Degree x 55 Degree ) that optimizes sound distribution, ensuring even coverage and balanced audio performance across the listening area.

Equipped with a switchable EQ, this speaker is incredibly versatile. It can be used in a stand-alone configuration, paired in stereo for a wider soundstage, or integrated as a system mid/high unit alongside a LINEAR SUB subwoofer for a complete, high-performance audio setup. This flexibility makes it suitable for various applications, providing reliable, clear, and powerful sound in diverse environments.

HK Audio LINEAR 5 112 F Features

  • 12"/1" Full-Range Unit: Delivers powerful bass and clear mid/high frequencies
  • Asymmetrical Horn: Optimizes sound distribution (60 Degree - 90 Degree x 55 Degree ) for even coverage
  • Switchable EQ: Offers versatile configurations for stand-alone, stereo, or system setups
  • Strong Bass Response: Provides the deepest bass in its class for remarkable impact
  • Flexible Integration: Works with LINEAR SUB subwoofer for a complete audio system

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful sound with this 1000W PA speaker, perfect for live music.
  • Get crystal-clear audio with the HK Audio LINEAR 5, designed for optimal sound quality.
  • This durable PA speaker features a robust cabinet, ready for any gig or event.
  • Enjoy versatile connectivity with Speakon inputs/outputs on this passive loudspeaker.
  • Achieve wide sound dispersion with the rotatable horn, optimizing your PA system's reach.
  • Portable design with MultiGrip handles makes this PA speaker easy to transport for DJs.

What's in the box:

  • HK Audio LINEAR 5 112 F 12" 1000W 2-Way Passive Loudspeaker (Jet Black)
  • HK Audio 5 Year Limited Warranty
