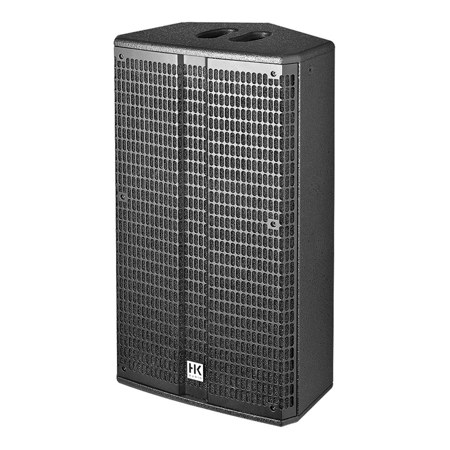

HK Audio LINEAR 5 112 X 12" 1000W 2-Way Passive Floor Monitor, Jet Black

SKU: HKLINEAR52XU MFR: LINEAR-5-112-X-U
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this 1000W PA speaker.
  • Achieve exceptional sound quality with the 12" cone speaker and 1" driver.
  • This durable PA speaker is perfect for live sound, DJing, or monitoring.
  • Enjoy flexible setup with pole mount and rigging points on this PA speaker.
  • Get optimal coverage with a rotatable horn for precise sound dispersion.
  • Take advantage of its portability with integrated MultiGrip carrying handles.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HK Audio LINEAR 5 112 X Specifications

Characteristics

Characteristics

Jump to...
  • Concept

    Passive 2-way mid/high unit

  • Cabinet principle

    Bass reflex

  • Power handling RMS

    500 W

  • Power handling program

    1000 W

  • Nominal impedance

    8 Ohms

  • Max. SPL average

    130 dB

  • Max. SPL peak

    135 dB

  • Sensitivity 1 W/1 m

    104 dB

  • Crossover frequency

    1.7 kHz

  • Frequency range -6 dB

    100 Hz - 18 kHz

  • Frequency range -10 dB

    72 Hz - 19 kHz

  • Dispersion angle -6 dB (HxV)

    60 Degree x 40 Degree , rotatable

Components

Jump to...
  • Mid/high frequency

    1x 12" cone speaker, 2.5" voice coil

  • High frequency

    1x 1" compression driver, 1.75" voice coil

  • Crossover

    High pass: 12 dB/oct., Low pass: 12 dB/oct.

  • High frequency protection circuit

    PTC circuit

  • Horn

    Constant directivity horn, rotatable

Connections

Jump to...
  • Input

    1x NL4 Speakon

  • Output/parallel output

    1x NL4 Speakon

  • Pin assignment

    1+/-

Amping/Presets

Jump to...
  • Lab.gruppen

    IPX Series, IPD Series, Lake

Amping/Filter Sheets

Jump to...
  • Lab.Gruppen

    IPX Series, IPD Series (limiter settings incl.)

Physical

Jump to...
  • Color

    Jet black (RAL 9005)

  • Material

    Cabinet: Hybrid (Birch plywood/MDF)

  • Cabinet features/rigging

    Pole mount HK Audio DuoTilt 3 Degree /7 Degree , monitor angle: 33 Degree , 3 x rigging point M8

  • Carrying handles

    1x HK Audio MultiGrip, 1 x SingleGrip

  • Cabinet surface

    Acrylic enamel

  • Front grille

    Steel front grille, backed with acoustic foam

  • Dimensions (W x H x D)

    14.57 x 26.38 x 11.81" (37 x 67 x 30cm)

  • Weight

    43 lbs (19.5kg)

  • UPC Code

    4039373017564

About HK Audio LINEAR 5 112 X

12"/1" model in a multifunctional housing with exceptional maximum sound pressure (135dB max. SPL peak) in combination with the Linear Sub 2000 for system applications. The LINEAR 5 112 X is also ideally suited as a monitor with plenty of gain before feedback; the rotatable 60 Degree x 40 Degree CD horn produces exemplary dispersion.

The 12"/1" model comes housed in a multifunctional design cabinet, offering an impressive maximum sound pressure level of 135dB SPL peak. When paired with the Linear Sub 2000, it creates a powerful and cohesive system suitable for a wide range of applications.

In addition to its system use, the LINEAR 5 112 X is highly effective as a stage monitor. It provides ample gain before feedback, ensuring clear and distortion-free audio for performers. The rotatable 60 Degree x 40 Degree CD horn further enhances its performance, delivering exceptional dispersion and ensuring that sound is evenly distributed across the space, whether used as a main speaker or a monitor. This makes it a versatile and reliable choice for both live sound applications and monitoring needs.

HK Audio LINEAR 5 112 X Features

  • 12"/1" model with 135dB max SPL for powerful sound in diverse applications
  • Paired with Linear Sub 2000, creates a cohesive and high-performance sound system
  • Ideal as a stage monitor with ample gain before feedback for clear audio
  • Rotatable 60 Degree x 40 Degree CD horn ensures exceptional sound dispersion and coverage

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful, crystal-clear audio with this 1000W PA speaker.
  • Achieve exceptional sound quality with the 12" cone speaker and 1" driver.
  • This durable PA speaker is perfect for live sound, DJing, or monitoring.
  • Enjoy flexible setup with pole mount and rigging points on this PA speaker.
  • Get optimal coverage with a rotatable horn for precise sound dispersion.
  • Take advantage of its portability with integrated MultiGrip carrying handles.

What's in the box:

  • HK Audio LINEAR 5 112 X 12" 1000W 2-Way Passive Floor Monitor (Jet Black)
  • HK Audio 5 Year Limited Warranty
