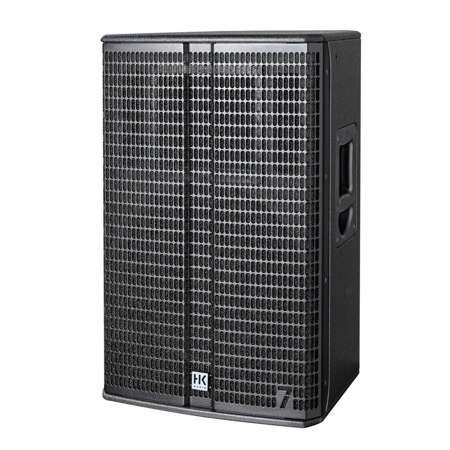

HK Audio LINEAR 7 115 FA 15" 2000W 2-Way Active Loudspeaker, Jet Black

SKU: HKLINEAR5FAU MFR: LINEAR-7-115-FA-U
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 2000W active PA speaker for any live sound event.
  • Achieve crystal-clear audio with the 15" cone speaker, perfect for DJs and bands.
  • Enjoy flexible setup with the rotatable horn, optimizing sound dispersion for your venue.
  • Easily integrate into existing systems using XLR connections on this versatile PA speaker.
  • Control your sound remotely with HK Audio DSP CONTROL software for Windows and Mac OS.
  • Durable build featuring a hybrid cabinet ensures reliable performance at every gig.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HK Audio LINEAR 7 115 FA Specifications

Characteristics

Characteristics

Jump to...
  • Concept

    Active 2-way loudspeaker

  • Cabinet principle

    Bass reflex

  • Max. SPL average

    129 dB

  • Max. SPL peak

    134 dB

  • Crossover frequency

    1.5 kHz

  • Frequency range -6 dB

    57 Hz - 19 kHz

  • Frequency range -10 dB

    54 Hz - 20 kHz

  • Dispersion angle -6 dB (HxV)

    60 Degree x 40 Degree , rotatable

Components

Jump to...
  • Mid/high frequency

    1x 15" cone speaker, 3" voice coil

  • High frequency

    1x 1" compression driver, 1.7" voice coil

  • Horn

    Constant directivity horn, rotatable

Connections

Jump to...
  • Analog input

    1x XLR/jack combo symm.

  • Analog output

    1x XLR symm.

  • DSP output

    1x XLR symm.

  • Network input

    1x Ethercon RJ45

  • Network output

    1x Ethercon RJ45

Electronical

Jump to...
  • Preamplifier

    DSP preamplifier

  • Power amplifier

    Class D - Biamped

  • Power amplifier output peak

    2000 W

  • Power consumption

    1 A / 100-240 V nominal according to EN 62368-1

  • Maximum input level

    +20 dBu

  • Speaker protection

    RMS-/Peak-Limiter

  • Sample rate

    96 kHz

  • Latency

    Under 2.6 ms

  • DSP functions

    Parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

  • Remote software

    HK Audio DSP CONTROL (Windows, Mac OS)

  • Filter presets

    Flat, Boost, Low Cut, Remote

  • Digital audio transmission

    MILAN

Physical

Jump to...
  • Color

    Jet black (RAL 9005)

  • Material

    Cabinet: Hybrid (Birch plywood/MDF)

  • Cabinet features/rigging

    Pole mount HK Audio DuoTilt 3 Degree /7 Degree , 4 x rigging point M8, Clustering-Winkel: 60 Degree

  • Carrying handles

    2 x HK Audio MultiGrip

  • Cabinet surface

    Acrylic enamel

  • Front grille

    Steel front grille with anticorrosive coating and backed acoustic foam

  • Dimensions (W x H x D)

    17.72 x 27.95 x 17.72" (45 x 71 x 45cm)

  • Weight

    70.5 lbs (32 kg)

  • UPC Code

    4039373023039

About HK Audio LINEAR 7 115 FA

The LINEAR 7 115 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimized for each speaker, the low-frequency range can be boosted as required.

The LINEAR 7 115 FA full-range speaker is active and network-compatible, and offers significantly increased sound pressure in the low-frequency range thanks to its extended cabinet volume. The bass boost preset developed specially for the speaker allows the low-frequency range to be amplified as required to achieve more impact and depth.

HK Audio LINEAR 7 115 FA Features

  • Active full-range loudspeaker with network control
  • 1x 15" bass-midrange driver with 3" voice coil
  • 1x 1" compression driver with 1.7" voice coil
  • Rotatable CD horn, 60 Degree x 40 Degree (horizontal x vertical)
  • DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment
  • Modern network technology for precise control of all DSP features
  • Additional DSP-Out with the full range of features of the DSP that lets you operate a non-network-compatible loudspeaker
  • Direct access to easily selectable presets on the speaker for use in a system with LINEAR 7 subwoofers or full-range operation without a subwoofer
  • High-resolution AD/DA converters with 96 kHz, FIR filtering and low latency of less than 2.6ms
  • 60 Degree clustering bracket integrated in enclosure
  • DuoTilt for 3 Degree or 7 Degree tilt for tripod mounting
  • User friendly rigging and mounting options
  • Professional Powercon and Ethercon connections
  • Sturdy hybrid housing made of birch multiplex and MDF

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful sound with this 2000W active PA speaker for any live sound event.
  • Achieve crystal-clear audio with the 15" cone speaker, perfect for DJs and bands.
  • Enjoy flexible setup with the rotatable horn, optimizing sound dispersion for your venue.
  • Easily integrate into existing systems using XLR connections on this versatile PA speaker.
  • Control your sound remotely with HK Audio DSP CONTROL software for Windows and Mac OS.
  • Durable build featuring a hybrid cabinet ensures reliable performance at every gig.

What's in the box:

  • HK Audio LINEAR 7 115 FA 15" 2000W 2-Way Active Loudspeaker (Jet Black)
  • HK Audio 5 Year Limited Warranty
