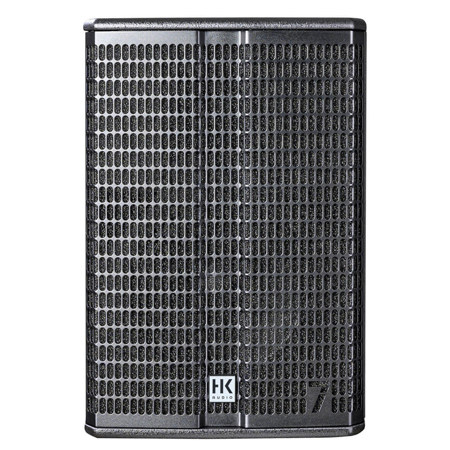

HK Audio LINEAR 7 110 XA 10" 2000W 2-Way Active Loudspeaker, Jet Black

SKU: HKLINEAR7110 MFR: LINEAR-7-110-XA-U
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this HK Audio 10" PA speaker.
  • Get pristine sound quality with the LINEAR 7 110 XA's rotatable horn feature.
  • This active loudspeaker delivers a peak power output of 2000W for impactful sound.
  • Enjoy versatile connectivity with XLR/jack combo inputs for seamless integration.
  • Durable build ensures this PA speaker withstands frequent transport & use.
  • Fine-tune your sound with onboard DSP, EQ, and filter presets for optimal audio.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HK Audio LINEAR 7 110 XA Specifications

Characteristics

Characteristics

Jump to...
  • Concept

    Active 2-way loudspeaker

  • Cabinet principle

    Bass reflex

  • Max. SPL average

    126 dB

  • Max. SPL peak

    129 dB

  • Crossover frequency

    2 kHz

  • Frequency range -6 dB

    70 Hz - 19 kHz

  • Frequency range -10 dB

    65 Hz - 20 kHz

  • Dispersion angle -6 dB (HxV)

    80 Degree x 60 Degree , rotatable

Components

Jump to...
  • Mid/high frequency

    1x 10" cone speaker, 2.5" voice coil

  • High frequency

    1x 1" compression driver, 1.4" voice coil

  • Horn

    Constant directivity horn, rotatable

Connections

Jump to...
  • Analog input

    1x XLR/jack combo symm.

  • Analog output

    1x XLR symm.

  • DSP output

    1x XLR symm.

  • Network input

    1x Ethercon RJ45

  • Network output

    1x Ethercon RJ45

Electronical

Jump to...
  • Preamplifier

    DSP preamplifier

  • Power amplifier

    Class D - Biamped

  • Power amplifier output peak

    2000 W

  • Power consumption

    1 A / 100-240 V nominal according to EN 62368-1

  • Maximum input level

    +20 dBu

  • Speaker protection

    RMS-/Peak-Limiter

  • Sample rate

    96 kHz

  • Latency

    Under 2.6 ms

  • DSP functions

    Parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

  • Remote software

    HK Audio DSP CONTROL (Windows, Mac OS)

  • Filter presets

    Flat, Monitor, Low Cut, Remote

  • Digital audio transmission

    MILAN

Physical

Jump to...
  • Color

    Jet black (RAL 9005)

  • Material

    Cabinet: Hybrid (Birch plywood/MDF)

  • Cabinet features/rigging

    Pole mount HK Audio DuoTilt 3 Degree /7 Degree , monitor angle: 30 Degree , 5 x rigging point M8

  • Carrying handles

    2x SingleGrip

  • Cabinet surface

    Acrylic enamel

  • Front grille

    Steel front grille with anticorrosive coating and backed acoustic foam

  • Dimensions (W x H x D)

    14.17 x 21.26 x 12.20" (36 x 54 x 31cm)

  • Weight

    82.7 lbs (37.5kg)

  • UPC Code

    4039373022971

About HK Audio LINEAR 7 110 XA

Thanks to its cabinet shape with integrated 30 Degree slant, the LINEAR 7 110 XA active and network-compatible multifunctional speaker is also suitable for use as a transverse stage monitor. It offers a preset optimized for use as a monitor, which compensates for the overemphasis of the low frequencies caused by contact with the ground in transverse operation.

The LINEAR 7 110 XA impresses with its versatility, including the option of using it as a horizontal stage monitor - thanks to the integrated 30 Degree slope in the housing. A specially optimized preset is available for this monitor application, which compensates for the low-frequency boost caused by the floor coupling when used in landscape mode, ensuring precise and balanced sound reproduction.

HK Audio LINEAR 7 110 XA Features

  • Active multifunctional loudspeaker with network control
  • 1x 10" bass-midrange driver with 2.5" voice coil
  • 1x 1" compression driver with 1.4" voice coil
  • Rotatable CD horn, 80 Degree x 60 Degree (horizontal x vertical)
  • DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment
  • Modern network technology for precise control of all DSP features
  • Additional DSP-Out with the full range of features of the DSP that lets you operate a non-network-compatible loudspeaker
  • Direct access to easily selectable presets on the speaker for use as a monitor or system speaker
  • High-resolution AD/DA converters with 96 kHz, FIR filtering and low latency of less than 2.6ms
  • Multi-purpose housing for use as a FoH or monitor speaker thanks to 30 Degree housing angle
  • DuoTilt for 3 Degree or 7 Degree tilt for tripod mounting
  • User friendly rigging and mounting options
  • Professional Powercon and Ethercon connections
  • Sturdy hybrid housing made of birch multiplex and MDF

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful, crystal-clear audio with this HK Audio 10" PA speaker.
  • Get pristine sound quality with the LINEAR 7 110 XA's rotatable horn feature.
  • This active loudspeaker delivers a peak power output of 2000W for impactful sound.
  • Enjoy versatile connectivity with XLR/jack combo inputs for seamless integration.
  • Durable build ensures this PA speaker withstands frequent transport & use.
  • Fine-tune your sound with onboard DSP, EQ, and filter presets for optimal audio.

What's in the box:

  • HK Audio LINEAR 7 110 XA 10" 2000W 2-Way Active Loudspeaker (Jet Black)
  • Power Cord
  • HK Audio 5 Year Limited Warranty
