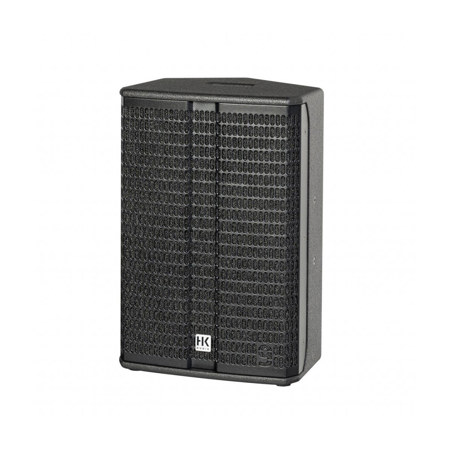

HK Audio LINEAR 9 110 XA 10" 700W 2-Way Active Loudspeaker, Jet Black

SKU: HKLINEAR9110 MFR: LINEAR-9-110-XA-U
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 700W active PA speaker, perfect for live music.
  • Get crystal-clear audio with the 10" cone speaker, ensuring your vocals cut through.
  • This portable PA speaker weighs just 36.4 lbs, making transport a breeze for DJs.
  • Enjoy versatile connectivity with XLR and Ethercon ports for seamless audio integration.
  • Durable birch plywood cabinet ensures this PA loudspeaker withstands gig after gig.
  • Customize your sound with DSP functions, including EQ and filter presets for optimal audio.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HK Audio LINEAR 9 110 XA Specifications

Characteristics

Characteristics

Jump to...
  • Concept

    Active 2-way loudspeaker

  • Cabinet principle

    Bass reflex

  • Max. SPL average

    126 dB

  • Max. SPL peak

    129 dB

  • Crossover frequency

    2 kHz

  • Frequency range -6 dB

    70 Hz - 19 kHz

  • Frequency range -10 dB

    65 Hz - 20 kHz

  • Dispersion angle -6 dB (HxV)

    80 Degree x 60 Degree , rotatable

Components

Jump to...
  • Mid/high frequency

    1x 10" cone speaker, 2.5" voice coil

  • High frequency

    1x 1" compression driver, 1.4" voice coil

  • Horn

    Constant directivity horn, rotatable

Connections

Jump to...
  • Analog input

    1x XLR/jack combo symm.

  • Analog output

    1x XLR symm.

  • DSP output

    1x XLR symm.

  • Network input

    1x Ethercon RJ45

  • Network output

    1x Ethercon RJ45

Electronical

Jump to...
  • Preamplifier

    DSP preamplifier

  • Power amplifier

    Class D - Biamped

  • Power amplifier output RMS

    700 W

  • Power consumption

    1 A / 100-240 V nominal according to EN 62368-1

  • Maximum input level

    +20 dBu

  • Speaker protection

    RMS-/Peak-Limiter

  • Sample rate

    96 kHz

  • Latency

    Under 2.6 ms

  • DSP functions

    Parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

  • Remote software

    HK Audio DSP CONTROL (Windows, Mac OS)

  • Filter presets

    Flat, Monitor, Low Cut, Remote

  • Digital audio transmission

    MILAN

Physical

Jump to...
  • Color

    Jet black (RAL 9005)

  • Material

    Cabinet: Birch plywood

  • Cabinet features/rigging

    Pole mount HK Audio DuoTilt 3 Degree /7 Degree , monitor angle: 30 Degree , 5 x rigging point M8

  • Carrying handles

    2x SingleGrip

  • Cabinet surface

    PU coating

  • Front grille

    Steel front grille with anticorrosive coating and backed acoustic foam

  • Dimensions (W x H x D)

    14.17 x 21.26 x 12.20" (36 x 54 x 31cm)

  • Weight

    36.4 lbs (16.5kg)

  • UPC Code

    4039373023732

About HK Audio LINEAR 9 110 XA

The LINEAR 9 110 XA is an active multifunctional speaker with an 80 Degree x 60 Degree rotatable, wide-angle horn, optimized for homogeneous near-field dispersion. The multifunctional housing combined with the practical features enhances the range of applications. This ensures that the LINEAR 9 110 XA can be used not only as a stage monitor, but also as a front, side or near-fill addition.

The heart of the LINEAR 9 110 XA is the integrated DSP, which can be controlled via the HK Audio DSP CONTROL software. The software offers the user numerous options for on-site system equalization and adjustment, such as a fully parametric 10-band EQ or group functions. Four DSP presets can be selected directly on the speaker without a PC connected. In addition to three standard presets (Flat, Monitor and Low Cut), a fourth user-designed preset can also be recalled.

The robust birch multiplex enclosure with resistant PU coating protects the LINEAR 9 110 XA not only from wind and the elements but also during transport from the storage to the venue and back again. All LINEAR 9 models are manufactured in Germany.

HK Audio LINEAR 9 110 XA Features

  • Active multifunctional loudspeaker with network control
  • 1x 10" bass-midrange driver with 2.5-inch voice coil
  • 1x 1" compression driver with 1.4-inch voice coil
  • Rotatable CD horn, 80 Degree x 60 Degree (horizontal x vertical)
  • DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment
  • Modern network technology for precise control of all DSP features
  • Additional DSP-Out with the full range of features for integration of non-network-compatible loudspeakers
  • Direct access to easily selectable presets on the speaker for use as a monitor or system speaker
  • High-resolution AD/DA converters with 96 kHz, FIR filtering and low latency of less than 2.6ms
  • Multi-purpose housing for use as a FoH or monitor speaker thanks to 30 Degree housing angle
  • DuoTilt for 3 Degree or 7 Degree tilt for tripod mounting
  • User friendly rigging and mounting options
  • Professional, lockable PowerCon and EtherCon connections
  • Sturdy enclosure made of birch multiplex with PU coating
  • Made in Germany

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful sound with this 700W active PA speaker, perfect for live music.
  • Get crystal-clear audio with the 10" cone speaker, ensuring your vocals cut through.
  • This portable PA speaker weighs just 36.4 lbs, making transport a breeze for DJs.
  • Enjoy versatile connectivity with XLR and Ethercon ports for seamless audio integration.
  • Durable birch plywood cabinet ensures this PA loudspeaker withstands gig after gig.
  • Customize your sound with DSP functions, including EQ and filter presets for optimal audio.

What's in the box:

  • HK Audio LINEAR 9 110 XA 10" 700W 2-Way Active Loudspeaker (Jet Black)
  • HK Audio 5 Year Limited Warranty
