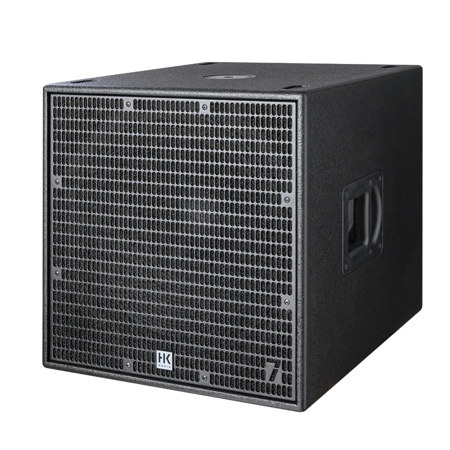

HK Audio LINEAR 7 118 Sub A 1x18" 2000W Bass Reflex Active Subwoofer, Black

SKU: HKLINEARSUBA MFR: LINEAR-7-118-SUB-A-U
Earn VIP Reward Points

Key Features

  • Experience powerful, deep bass with this HK Audio 18" active subwoofer.
  • Enjoy pristine sound quality with a frequency response down to 38 Hz.
  • This 2000W subwoofer delivers high SPL for immersive home theater audio.
  • Customize your sound with the fully parametric 10-band EQ and DSP functions.
  • Easily integrate this black subwoofer into your existing sound system via XLR.
  • Control remotely via DSP CONTROL software (Windows, Mac OS) for easy adjustments.
See More Product Details
Special Order?Estimated to Ship: 10/03/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

HK Audio LINEAR 7 118 Sub A Specifications

  • Finish

    Black acrylic enamel

  • Housing

    Birch multiplex

  • Max. SPL @ 10% THD

    129 dB half space (42 Hz - 100 Hz averaged)

  • Max. SPL peak @ 10 % THD

    131 dB half space

  • Frequency response +/-3 dB

    42 Hz - X-over

  • Frequency response -10 dB

    38 Hz - X-over

  • Power amp output (peak power)

    2000 W

  • Amp type

    Class D

  • LF driver

    1x 18", 4" voice coil

  • Maximum input level

    +20 dBu

  • Analog inputs

    2x XLR combo balanced

  • Analog thru

    2x XLR balanced

  • DSP Out

    1x XLR

  • Network port

    Ethercon RJ45, 1x In, 1x Thru

  • Filter presets

    Front, Cardioid 1:1, Cardioid 2:1, Remote

  • Remote software

    DSP CONTROL (Windows, Mac OS)

  • DSP functions

    Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

  • Sample rate

    96 kHz

  • System latency

    Less than 2.6 ms

  • Mains connector

    1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100-240 V

  • Power consumption

    1.9 A / 100-240 V nominal according to EN 62368-1

  • Pole mount

    1x M20

  • Carrying handles

    2x MultiGrip

  • Front grille

    2mm metal grille backed with black acoustic foam

  • Dimensions (W x H x D)

    21.65 x 22.04 x 27.17" (55 x 56 x 69cm)

  • Weight

    90.4 lbs (41kg)

  • UPC Code

    4039373023053

About HK Audio LINEAR 7 118 Sub A

The LINEAR 7 118 Sub A is an extremely powerful yet compact 18-inch subwoofer. Equipped with all the features of the network-compatible LINEAR 7 Series, it delivers phenomenal low-frequency performance in numerous applications.

HK Audio LINEAR 7 118 Sub A Features

  • Active subwoofer with network control
  • 1x 18-inch bass speaker with 4" voice coil
  • Internal presets for fast implementation of cardioid setups
  • DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment
  • Modern network technology for precise control of all DSP features
  • Additional DSP-Out with the full range of features of the DSP that lets you operate a non-network-compatible loudspeaker
  • Direct access to easily selectable presets on the speaker for Cardioid 1:1 and Cardioid 2:1
  • High-resolution AD/DA converters with 96 kHz and low latency of less than 2.6ms
  • M20 tripod thread for mounting mid/high units via tripod
  • Professional Powercon and Ethercon connections
  • Sturdy housing made of birch multiplex

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful, deep bass with this HK Audio 18" active subwoofer.
  • Enjoy pristine sound quality with a frequency response down to 38 Hz.
  • This 2000W subwoofer delivers high SPL for immersive home theater audio.
  • Customize your sound with the fully parametric 10-band EQ and DSP functions.
  • Easily integrate this black subwoofer into your existing sound system via XLR.
  • Control remotely via DSP CONTROL software (Windows, Mac OS) for easy adjustments.

What's in the box:

  • HK Audio LINEAR 7 118 Sub A 1x18" 2000W Bass Reflex Active Subwoofer (Black)
  • HK Audio 5 Year Limited Warranty
