Questions & Answers

Shannon L : I do not see the carry bag included in the description for this kit, is it included? What's Included With This Item: 2, Integra PRO 500 (8815FM)- 1, RF / RC Strobe Wizard Transmitter (3950)- 2, Model Lamp 300w (1280) 1, Umbrella Flood Reflector (87) 1, 7" Grid Reflector (504)- 1, 30 degree 7" Grid (508) 1, Umbrella EconomyZACHARY R : It's not a carry bag per say, but it's a hard/soft shell bag with wheels. Also, it should come with a pop-up reflector since it's in the photos.ANDREW R : I believe that a soft bag is supposed to be included with this kit.
CJ J : Does this kit come with the Strobe Wizard Transmitter that connects to the camera? I can't really tell from the picture if it is the transmitter under the bag.GERASIMO B : You should email to make sure, but I had a similar kit. The small square unit on the left side of the bag is the Hensel transmitter that connects to your hot shoe to trigger the strobes.ALBERT G : No you have to buy Pocket Wizard 801?130 Plus III TransceiverANDREW R : What's Included With This Item 2, Integra PRO 500 (8815FM) 1, RF / RC Strobe Wizard Transmitter (3950) 2, Model Lamp 300w (1280) 1, Umbrella Flood Reflector (87) 1, 7" Grid Reflector (504) 1, 30 degree 7" Grid (508) 1, Umbrella Economy

Reviews about this item

Review Summary

2016-02-10T07:49:30

Rated 4 out of 5

Great Lights!

The lights and set up was very easy! The quality of the lights and housing are very very good but the stands provided are not that great.

Camden D.

2007-02-11T19:00:00

Rated 4 out of 5

Good product for the money

pruduct (Hensel) is a great product. Only disadvantage is general lack of quick availability of accesories as you expand. Great alternative to higher cost brands such as Elinchrom with what I believe is comparable quality.

Paparossi

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hensel Integra Plus 500 Kit Specifications

  • Monolight: Energy

    500WS

  • Monolight: F-Stop

    F 64 8/10 (1M, ISO 100, 1/60 S, 12" Reflector)

  • Monolight: Model Light

    300 W/G 6.35

  • Monolight: Flash Duration T 0.5 Min.

    1/1400 s

  • Monolight: Flash Duration T 0.5 Max.

    1/700 s

  • Monolight: Recycle Time (Min. Power)

    0.5 s

  • Monolight: Recycle Time (Max. Power)

    1.9 s

  • Monolight: Power Range

    6 f-stops 1/10 steps

  • Monolight: Model Light Mode

    On / off / full / prop

  • Monolight: Mains Voltage

    120V/60Hz & 230V/50Hz

  • Monolight: Synchronization

    6.3mm plug/Photo Cell/Radio

  • Monolight: Remote Control

    Yes

  • Monolight: Freemask Integrated

    Yes

  • Monolight: Ready Signal

    Acoustical/optical/Flash Check

  • Monolight: User Replaceable Flashtube

    Yes

  • Monolight: Fan Cooled

    Yes

  • Monolight: Auto Dump

    Yes

  • Monolight: Circuit Protection

    4A fuse

  • Monolight: Voltage Stabilization

    Yes

  • Transmitter: Working Range

    > 40 m

  • Transmitter: Channels

    3 individual channels & "All"

  • Transmitter: Sync Voltage

    < / = 56 V

  • Transmitter: Sync Activation

    By Sync Signal

  • Transmitter: Protection Class

    IP 32

  • Transmitter: Battery

    28 L / 6 V (1x)

  • Transmitter: Battery Life Cycle

    1-2 years

  • Umbrella Reflector: Compatible

    Expert D, Integra Plus, Integra Mini, Speed Max, EH (Pro) Mini, EH Pro, C-Light 1000, C-Light D, Expert/Integra Pro (Plus), eFlash, Contra

  • Umbrella Reflector: Diameter

    13cm (5.12")

  • Umbrella Reflector: Depth

    6.5cm (2.56")

  • Umbrella Reflector: Inner Coating

    Silver

  • Umbrella: Compatible

    EH & MH System

  • Umbrella: Diameter

    82cm

  • Umbrella: Inner Coating

    White

  • Umbrella: Model Light (Max.)

    650W

  • Collapsible Reflector: Shape

    Circular

  • Collapsible Reflector: Open Diameter

    32" (81.28cm)

  • Collapsible Reflector: Folded Diameter

    10.6" (26.92cm)

  • Collapsible Reflector: Surfaces

    Sunlight, silver, black, white and translucent

  • Softbox: Size

    18 x 26" (45.72 x 66.04cm)

  • Softbox: Shape

    Rectangle

  • Softbox: Compatibility

    Hensel strobes

  • Softbox: Removable Face

    Yes

  • Softbox: Removable Baffle

    Yes

  • Softbox: Accepts Grids

    Yes

  • Softbag: Accommodates

    Hensel power pack with two heads and accessories

  • Softbag: Capacity

    Max. 20kg (44.09 lbs)

  • Softbag: Wheels

    Yes

  • Softbag: Pull Handle

    Yes

  • Softbag: Carrying Strap

    Yes

  • Softbag: Inner Bag

    Yes

  • Softbag: Inside Compartments

    Max. 3

  • Softbag: Air Freight Compliant

    No

  • Softbag: Type of Closure

    Zipper

  • Dimensions

    Monolight (LxWxH): 33 x 15 x 23cm (12.99 x 5.91 x 9.06")
    Transmitter (BxHxD): 5.5 x 6.3 x 4.8cm (2.17 x 2.48 x 1.89")
    Softbag (LxBxH): External: 90 x 34 x 33cm (35.43 x 13.39 x 12.99")
    Internal: 78 x 29 x 24cm (30.71 x 11.42 x 9.45")

  • Weight

    Monolight: 2.87kg (6.33 lbs)
    Transmitter: 53g (1.87 oz)
    Softbag: 7.0kg (15.43 lbs)

15 Accessories for Hensel Integra 500 Plus Freemask 2 Light Kit

  • All Accessories (15)
  • Flashtubes & Accessories (3)
  • Lamps & Bulbs (1)
  • Reflectors (1)
  • Collapsible Reflectors (1)
  • Snoots (1)
  • Umbrellas & Accessories (2)
  • Umbrellas (3)
  • Bags & Cases (1)
  • Softboxes & Accessories (1)
  • Production Accessories (1)

About Hensel Integra Plus 500 Kit

Integra 500 Plus
Why do some things work better than others? Why is it that you don't need a user manual to find out how exactly everything works? And why do your fingers find the right switch without hesitation, even in total darkness? In our case, the answer is easy: it is the result of over three decades of compact flash design, the R&D efforts of an experienced team of engineers and our openness to the needs of our customers. Integra Plus are reliable workhorses for commercial photographers.

• Short flash duration down to 1/1,400 s and fast flash sequences from 0.5 s
• Adjustable 6 f-stop power range in 1/10 f-stops
• Bright 300W model light & active cooling
• Built-in Strobe Wizard Plus radio receiver with freemask
• Bi-voltage (110 V and 230 V)
• Glass cover included
• Off-grid operation in combination with Power Max L (optional accessory)
• freemask function - cut-out masks in perfect quality while shooting
• Stable metal housing

Strobe Wizard Plus Radio Transmitter
Transmitter for radio sync & radio control of Integra Plus, Expert D, Speed Max, Nova D/DL, Tria 24SF and Porty L flashes. A must-have accessory! Radio sync & remote control in a small and lightweight unit. Mounted on the accessory shoe and protected by a very solid plastic housing. The transmitter has a minimum battery life of 1 to 2 years. Sync times (depending on camera type): 1/250 s for focal plane shutters, 1/800s for leaf shutters. 3 different channels and "ALL" (master channel), to prevent interferences between different workgroups within the same studio. Range of up to 30 m Sync cord included.

Umbrella & Floodreflector
Used with umbrellas (except for Softstar), it reduces undesirable straylight and
ensures optimum light conditions. This reflector provides a very wide-angle and evenly distributed light. You can use it without umbrellas too; it is equally suited for direct (hard) light or indirect lighting over walls and ceilings. Perfect for even illumination of large backgrounds.

Economy Umbrella
• Affordable and handy standard umbrella.
• Color: white (inner surface) Dimensions: Dia. ca. 82 cm Recommended accessory, for fast and easy light set-ups.

Softbag VII "De Luxe"
Slightly smaller version of our Softbag VIII - but with similar assets. A deceptively spacious trolley with up to three internal compartments and completely new, significantly reinforced wheels. The bag holds flash units, lots of accessories and up to 3 stands (e.g. our item no. 200). The bag's lid incorporates a mesh pocket for smaller accessories. And the best thing: A handle and stable wheels at the bottom of the bag take the fear out of fully packed bags and long walks!

Hensel Integra Plus 500 Kit Features

  • Multivoltage units that can go anywhere in the world, 110 - 230v
  • Power adjustable in 1/10 stop increments over a five stop range
  • Built in whisper silent fan
  • 300 watt modeling lamp
  • Built in slave which can be switched on or off
  • Automatic power dump - bleeds power when adjusted down
  • Flash Check - modelling lamp is the indicator when the unit is ready to flash again
  • Interchangeable glass pyrex's with color and frosted options

Product Documents

User Manual

Key Features

  • Multivoltage units that can go anywhere in the world, 110
  • Power adjustable in 1/10 stop increments over a five stop range
  • Built in whisper silent fan
  • 300 watt modeling lamp
  • Built in slave which can be switched on or off
  • Automatic power dump

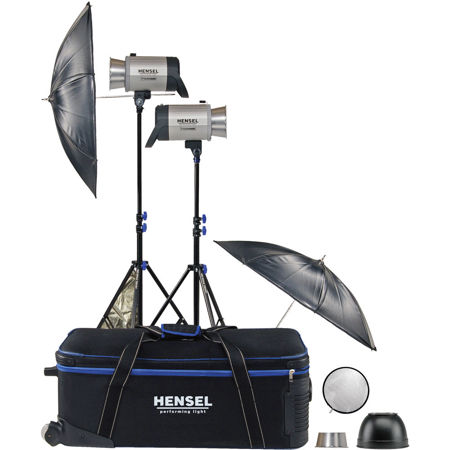

What's in the box:

  • 2x Integra Plus 500 "FREEMASK " (8815FM)
  • 2x Modeling Lamp 300 W/120 V (1280)
  • 1 x Sync Cord (122)
  • 2 x Power Cable US (958182)
  • 1 x Radio Transmitter Strobe Wizard Plus (3950)
  • 1x Reflector 7 " (504)
  • 1x Economy Umbrella 82cm (3180)
  • 1x Umbrella Reflector (87)
  • 2x Alu Stand III Air Cushioned (200) 1x Softbag VII (4201)
