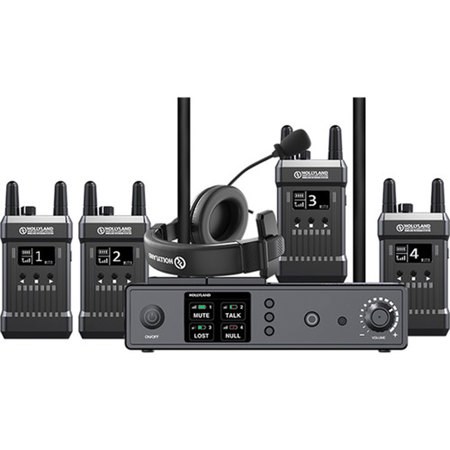

Base Station:
2 Antenna Interfaces (SMA-K, Female Connector)
4-Pin XLR Male DC Input
3.5mm Headphone Port
RJ45 Interface 4 Channels audio interface
USB Type-C USB 2.0 Interface
4 USB 2.0 Interface
Beltpack:
2 Antenna Interfaces (SMA-K Female Connector)
3.5mm Headphone Port
3.5mm TALLY Output Interface
USB Type-C USB 2.0 Interface
Base Station: 7-36V DC Input, F970 Battery
Beltpack:
1600mAh Lithium Polymer Battery
300Hz to 5KHz
>50dB
<2%
Under LOS, 1000' working range from Base Station to Beltpack
1.9GHz
GFSK
Maximum 24dBm
<= -93dBm
1.728 MHz
<4W
Operating: 32 - 104 Degree F (0 - 40 Degree C)
Storage: -4 - 140 Degree F (-20 - 60 Degree C)
Required, Included
Lithium Polymer
6
-
Base Station: 8.66 x 6.69 x 1.96" (220 x 170 x 50mm)
Beltpack: 3.93 x 2.28 x 0.86" (100 x 58 x 22mm)
Base Station: 50.44 oz (1.430kg)
Beltpack: 6.8 oz (193g)
191460000355
It's All Just A Click Away
The maximum communication distance between the base station and beltpacks is 300 meters, which is greater than the combined length of two soccer fields. This will ensure smooth communication between team members over long distances and allow them to collaborate more effectively in the field.
Hands-Free Full-Duplex Communication
With this full-duplex intercom system, audio transmission starts once you speak, and there is no need to press a button before talking (as is the case for a walkie-talkie). Its full-duplex feature allows communication in both directions, which guarantees efficient and agile team collaboration.
Cascade Expansion to Support Maximum 10 Users
To meet the needs of a medium-sized team, 2 base stations can be daisy-chained to allow 10 people to communicate simultaneously. The network cable connecting the 2 base stations can be up to 900 meters long, which effectively extends the communication distance to support larger-scale events.
Built to Power A Long Workday
The base station is fitted with a dual-battery plate, and can be powered by dual F970 batteries or from a DC power supply. One F970 battery can ensure more than 20 hours of ultra-long operating time. And dual batteries mean you can replace a battery without turning off the device.
Convenient Beltpack Charging & Firmware Upgrade
The base station provides 1 USB Type-C and 4 USB Type-A ports. The USB Type-C port can be used for firmware upgrade. The USB Type-A ports can be used to charge 4 beltpacks at the same time. Each beltpack can be used for more than 8 hours when fully charged. So, just charge all your devices at a time and then rest assured that they will last many hours.
HD Display, All info at a Glance
The base station and beltpacks all come with high-definition OLED display, which can display important information including signal strength, remaining battery power, and connection status in real time. So, you can clearly and intuitively understand whether the beltpacks are working properly.
Clearer, Faster, Preciser
Each belt pack is equipped with a 3.5mm external tally light jack and supports wireless tally function, which allows the director to send work instructions precisely and quickly.
Dynamic Microphone, Carrier-Grade Audio Quality
The product comes standard with a dynamic headset. This professional noise-canceling headset can effectively isolate the ambient noise to ensure carrier-grade audio quality, so that you can easily hear your instructions. The 3 5mm headset jack allows you to also use your everyday headsets and enjoy more choices and flexibility.
3.5mm Earphone port
Noise Reduction
