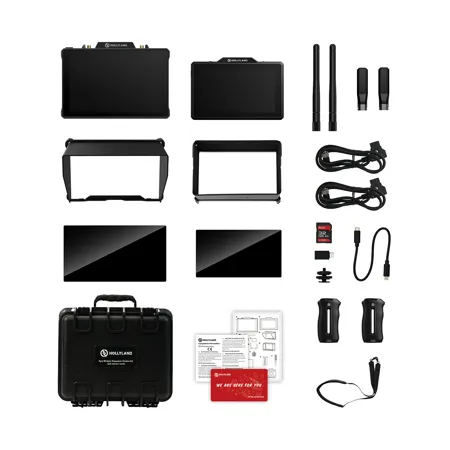

Hollyland Pyro 5 and Pyro 7 Wireless Touchscreen Transceiver Monitor Kit

- Pyro 5 Transceiver Monitor -
Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording, real-time overlays, and RTMP live streaming make Pyro 5 more than just a monitor-it's your multi-tasking hub on set, built to simplify and speed up every step of production.

WifiBroadcast Technology

Shoot. Sync. Share.
Pyro 5 is a 5.5-inch wireless monitor designed for flexible on-set collaboration. Powered by cutting-edge Wi-Fi-Broadcast technology, it allows one transmitter to connect with up to four receivers while maintaining stable, real-time video transmission.

Broadcast Mode

Activated
In Broadcast Mode, one transmitter connects to up to four receivers with intelligent camera views switching and auto frequency hopping. Ideal for multi-cam setups, it delivers stable performance at up to 200m line-of-sight or 100m back-to-back.

Deactivated
Pyro 5 still supports one-to-four transmission even when Broadcast Mode is off. At the same time, it offers a more extended range, up to 400m line-of-sight and 150m back-to-back.

Dual-Band

Stronger Signal. Smoother Feeds.
Built with a dual-band 2.4G/5G transmission system, Pyro 5 automatically adapts to changing environments-delivering robust, interference-resistant video even in signal-heavy locations.

Direct Camera Control. Just a Tap Away.
With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to shutter speed, aperture, focus, focus mode, white balance, Trigger and ISO, offering dynamic control over your camera's settings.

More Than a Monitor. Efficient Proxy Recording.
Proxy files can be recorded directly to an SD card or USB drive while monitoring in real time. Automatically organized into folders, proxy files are ready to review or cut. The Proxy files now include timecode, perfectly synced with your camera for easier, more accurate editing.

Multi-Cam Switching.
Pyro 5 supports switching between camera groups, keeping up with fast-paced live productions.

Shoot Bright. See Brighter.
The 1500-nit screen stays bright and readable, even in the most challenging outdoor lighting.

Auto Frequency Hopping
Pyro 5 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

Smart Channel Selection
At startup, the system automatically scans and locks onto the optimal frequency channel. Channels can also be manually scanned and switched via the receiver, with visual signal strength indicators for each frequency.

Take Control of Your Image Flow.
Choose between high-fidelity visuals or ultra-low latency-whichever suits your shoot best.

• HD Mode: Delivers stunning clarity with a 12 Mbps bitrate and a minimum latency of 75ms. Ideal for critical image monitoring
• Smooth Mode: The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission

Note: All performance figures are from Hollyland laboratory tests and may vary with real-world conditions.

Precision Meets Ease

Image Analysis.
Advanced image analysis tools-now more accurate, more user-friendly, and made for fast decision-making on set.

HDMI & SDI Port
Connect to What You Need. With both HDMI and SDI loopout, Pyro 5 fits seamlessly into a wide range of production setups.

Lock Pairing.
When multiple Pyro systems are in use, Lock Pairing ensures each receiver stays securely connected to its original transmitter-no signal mix-ups.

Built to Feel Good. Made to Last.
A dual-injection shell keeps the device light in hand and strong enough to handle the roughest shoots. The Easy-install antennas make setup, transport, and storage faster and easier than ever. Every detail is designed for the field-from the rugged build to the streamlined setup.

Go Live, Anywhere.

RTMP Streaming
Stream directly to Zoom, YouTube Live, TikTok, and more with the HollyView App and RTMP support. Just connect a 4G LTE Wi-Fi modem, enter your stream key, and you're live-no extra setup needed.

- Pyro 7 Transceiver Monitor -
Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

More Flexible. Meet More Monitoring Needs
Pyro 7's Wi-Fi Broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Broadcast Mode

Activated
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.

Deactivated
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.

See Real-time Footage - Quick Monitoring Switch
Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.

Dual Boost

Faster. Longer. Stronger
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

Less Latency and More Stability
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).

Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long- distance transmission.

ADH - Auto Dual-Band Hopping
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

Dual Band - 2.4 GHz & 5 GHz
Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won't have to worry about video drop issues any more.

Intelligent - Auto Frequency Hopping
Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

Leap Forward - HollyOS Image Analysis

Precise Image Analysis, Enhanced Your Experience
Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.

• Waveform
• Focus Assist
• Zebra Pattern
• False Color
• 3D LUT
• Image Overlay

More Possibilities - Expanding Functionality Enhanced Features
Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow.

• SD Card
• LUTS Application
• Customized Folder

7" - See Every Detail Clearly
The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1500 nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screen brightness for optimal visual performance.

Seamless Connectivity - HDMI and SDI Input/Output/ Loopout
Pyro 7 is the perfect solution for professional shooting and smaller commercial projects.
