Transmitter:
DC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
HDMI Loopout: HDMI 1.4b
USB-C: USB 2.0 OTG
Antenna: SMA Male
Receiver:
DC Input: 2.0mm Core Socket
HDMI Output: HDMI 1.4b
USB-C: USB 2.0 OTG
Antenna: SMA Male
USB-C: 5V/2A (not supported in Broadcast mode)
Battery Voltage Range: 6.8 - 8.4V
DC Voltage Range: 6 - 16V
Transmitter: < 7W
Receiver: < 4W
Transmitter:
HDMI:
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
4K30/25/24
HDMI Loopout:
720p50/60
1080i50/60
1080p24/25/30
1080p50/60
4K30/25/24
Receiver:
HDMI:
720p50/60
1080i50/60
1080p24/25/30
1080p50/60
4K30/25/24
5 GHz Frequency Band:
5.150 - 5.250 GHz
5.250 - 5.350 GHz
5.470 - 5.725 GHz
5.725 - 5.850 GHz
2.4 GHz Frequency Band:
2.412 - 2.484 GHz
< 23 dBm
-85 dBm (Broadcast: -80 dBm)
<= 60ms
20 MHz (Broadcast: 40 MHz)
1,300' (400m) (test data in an open, interference-free environment)
Optional, not included
Lithium ion
NP-F
2
4.3 x 2.45 x 1.3" (109 x 62.3 x 33.4mm)
6.77 oz (192g)
810174770230

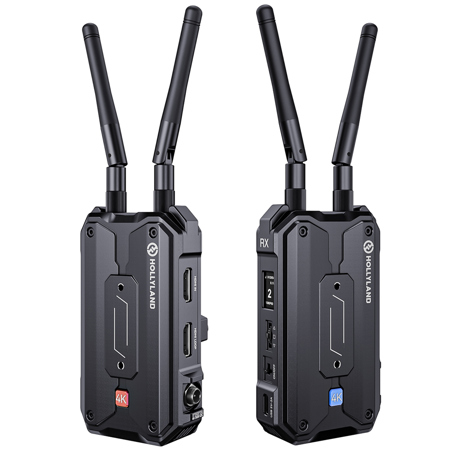

What sets the Pyro H 4K HDMI Wireless Video Transmission System apart is its superior technology and design, specifically tailored for high-quality video transmission at up to 4K/30fps. This HDMI-only solution, now available from Adorama, is a breakthrough product from Hollyland, marking their innovative stride into the world of 4-receiver support.
The Pyro H system operates over dual 2.4 GHz and 5 GHz frequency bands, providing enhanced monitoring stability and fostering collaboration on set. It sets a new benchmark in transmission range and latency, promising to revolutionize your video transmission experience.
Key features of the Pyro H system include 1TX & 4RX, a transmission range of up to 1,300' (400m), a low latency of 0.06s, 2.4 GHz & 5 GHz Dual Band, 4K30 Transmission, HDMI Loopout, USB Video Class (UVC), and Smart Channel Scan.
The Pyro H's Wi-Fi Broadcast technology allows one transmitter to connect to four receivers with stable signals, providing flexibility for additional monitoring needs on set. The system offers two modes of operation - Broadcast mode for connecting to four receivers with a LOS range of 650ft (200m), and a non-Broadcast mode for connecting to two receivers and two mobile devices with a LOS range of up to 1,300ft (400m).
The Pyro H system's self-developed 2.4 GHz & 5 GHz Dual-Band technology ensures a stable transmission range of up to 1,300ft (400m) and a latency as low as 60ms. Unlike other systems that compromise image quality and latency for extended transmission range, Pyro H excels in maintaining video quality and minimizing latency.
With 4K/30fps transmission capabilities, Pyro H delivers images with superior clarity, detail, and realism, making it a perfect fit for professional applications like filmmaking. The HDMI Loopout port allows signal output to another display device without compromising the transmitted signal quality.
The Pyro H system also supports USB Video Class (UVC), ensuring seamless compatibility with a wide range of devices without the need for additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it ideal for live streaming and video conferencing.
The Smart Channel Scan feature automatically selects a high-quality frequency channel upon startup, optimizing user experience. Users can also activate the smart channel scan function on the receiver to view real-time feedback on frequency status, ensuring a reliable and uninterrupted experience.
The Pyro H system supports preset grouping and pairing, eliminating the need for repetitive manual setup of the transmitter and receivers. It also supports USB-C power supply (5-12V), providing a convenient power supply option, especially when using stabilizers. This feature reduces overall weight and enhances maneuverability by eliminating the need for NP-F batteries.
In conclusion, the Pyro H 4K HDMI Wireless Video Transmission System is a game-changer in the realm of video transmission, offering unparalleled performance, flexibility, and convenience.
