Hollyland Cosmo 400 400' Wireless HDMI/SDI Transmitter and Receiver Set

SKU: HLYCOSMO400

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : is anew ítem ?ANDREW R : I'm not sure I understand your question. The item in this product listing is new (not used or refurbished). Items we sell are NEW unless otherwise indicated.
Shopper : Why Did You Choose This?DAMIAN P : Dark horse Item and it blows Bolt 500 away....Ricky N : It supported 108p/59.94 on both the HDMI In (transmitter) and HDMI Out (receiver).Ronald M : Because it proffesional And cheap

Reviews about this item

Review Summary

2019-03-27T16:24:39

Rated 1 out of 5

Does Not Transmit at 50 feet!

The range is no where near the advertised range. We had 50 foot range and it would either transmit choppy or say trying to connect. I ended up using an older system I had laying around and it worked way better.

Joseph Z.

2018-12-13T08:45:06

Rated 5 out of 5

really good

That’s work perfect !!!!!

YRACK R.

2018-08-26T19:28:21

Rated 5 out of 5

hollyland is a dark house

This is another one I tested in BirTV,Hollyland could be a dark house in this feild

Zohreh

Hollyland Cosmo 400 Specifications

Transmitter

Transmitter

Jump to...
  • Interface

    SDI Input (BNC female)
    HDMI Input (Type A female)
    2 Antenna port (RP-SMA male)
    DC Input (4 pin LEMO female)

  • Input Video Format

    HDMI:
    525i
    625i
    720p 50/59, 94/60
    1080i 50/59, 94/60
    1080p 23.98/24/25/29.9/30/50/59.94/60
    HDMI Type A
    SDI: 3G, HD and SD-SDI (auto-selected)
    SMPTE-259/274/292/296/372/424/425
    1xBNC

  • Input Audio

    SDI embedded 2 channel 24 bit/48KHz

  • Signal Indicator

    POWER-Green; VIDEO-Yellow

  • Frequency Band

    5.1-5.9GHz, Configurable with China, North American, Europe, etc

  • Modulation Mode

    OFDM 16QAM

  • Transmission Power

    Max. 18dBm

  • Occupied Bandwidth

    40MHz

  • Supply Voltage Range

    7V-36V DC

  • Power Consumption

    <6.5W

  • Temperature Range

    0 to 40 deg. C (32 to 104 deg. F) (operating condition)
    -20 to 60 deg. C (-4 to 140 deg. F) (Storage)

  • Compliance

    FCC; CE

Receiver

Jump to...
  • Interface

    SDI Output (BNC female)
    HDMI Output (Type A female)
    5 Antenna port (RP-SMA male)
    DC Input (4 pin LEMO female)

  • Output Video Format

    HDMI:
    525i
    625i
    720p 50/59, 94/60
    1080i 50/59, 94/60
    1080p 23.98/24/25/29.9/30/50/59.94/60
    HDMI Type A
    SDI: 3G, HD and SD-SDI (auto-selected)
    SMPTE-259/274/292/296/372/424/425
    1xBNC

  • Output Audio

    SDI embedded 2 channel 24 bit/48KHz

  • Signal Indicator

    POWER-Green
    Wireless RSSI-Blue (4 LEDs)
    POWER/VIDEO-Yellow

  • Frequency Band

    5.1-5.9GHz, Configurable with China, North American, Europe, etc

  • Modulation Mode

    OFDM 16QAM

  • Receiver Sensitivity

    -75dBm

  • Occupied Bandwidth

    40MHz

  • Supply Voltage Range

    7V-36V DC

  • Power Consumption

    <7.5W

  • Temperature Range

    0 to 40 deg. C (32 to 104 deg. F) (operating condition)
    -20 to 60 deg. C (-4 to 140 deg. F) (Storage)

  • Compliance

    FCC; CE

General

Jump to...
  • Dimensions (LxWxH)

    Transmitter: 115 x 67 x 23mm (4.53 x 2.64 x 0.91") don't include antennas
    Receiver: 152 x 95 x 23mm (5.98 x 3.74 x 0.91")
    Tool Packing Case: 455 x 380 x 335mm (17.91 x 14.96 x 13.19")

  • Weight

    Transmitter: 270g (9.52 oz)
    Receiver: 355g (12.52 oz)
    Tool Packing Case: 0.8kg (1.76 lbs)

  • UPC Code

    767665171161

About Hollyland Cosmo 400

FEATURED REVIEWS

hollyland is a dark house

By Zohreh

This is another one I tested in BirTV,Hollyland could be a dark house in this feild

really good

By YRACK R.

That’s work perfect !!!!!

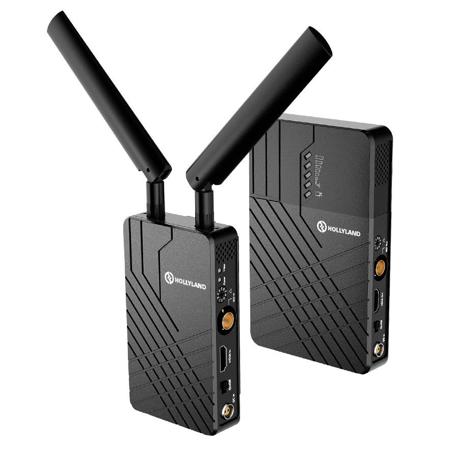

Hollyland Cosmo 400 Long Range Wireless HDMI/SDI Transmission use today's most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay. The suite including one transmitter and one receiver, which the transmitter has one 3G/HD SDI input and one HDMI input and the receiver also provide a 3G/HD SDI output and a HDMI output.

The wireless HD suite has 2 stick antennas in transmitter side and 5 internal antennas in receiver side and it can work in 5.1-5.9GHz frequency band and be flexibly software con- figured to licensed or ISM band of global different regions, as well as the side panel of both transmitter and receiver has been installed a frequency select knob, which provide maximum 10 workable frequency channels and support maximum 4 sets working simultaneously.

The wireless suite can accept wide range DC power input, which is suitable for many kinds of camera battery model. It also sustains +/-8 kV ESD (HBM, contact discharge), the industry class metal case and professional heat design would guarantee most robust reliability.

Hollyland Cosmo 400 Features

  • Guaranteed Distance: 400', Up to 700'
  • HDMI and SD/HD/3G SDI input and output
  • Highest resolution 1080p 60fps, no delay and no compression
  • Broadcast mode
  • 5GHz ISM frequency band
  • Maximum 10 frequency channels
  • RX built-in antenna, more compact
  • Wide range power voltage input 7V-36V
  • Point to Point and Multipoint
  • Support Timecode
  • AES-128 Encrypted Transmission

What's in the box:

  • Hollyland Transmitter
  • Receiver
  • 2x 5GHz Omni-Directional and High Efficiency Antennas
  • Crab Clamp
  • 7" Articulating Arm
  • 2x D-Tap to 4-Pin Lemo Converter Cable
  • 2x Flat Screwdrivers
  • 1/4-20 Screw to ISO518 Hot Shoe Converter
  • Tool Packing Case
  • User Manual
  • Hollyland Warranty
