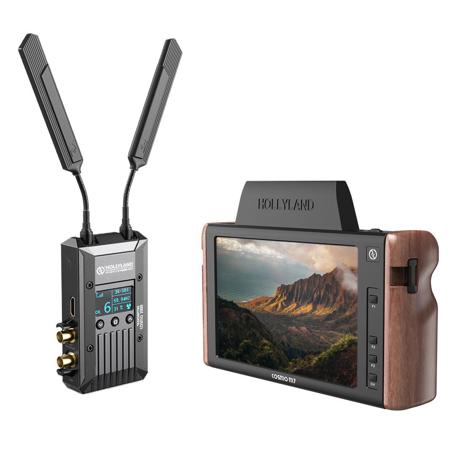

Hollyland Cosmo M7 7" FHD Touchscreen Wireless LCD Monitor Kit w/ Cosmo 2000 Tx
See all Hollyland items

Hollyland Cosmo M7 7" Full HD Touchscreen Wireless LCD Monitor Kit with Cosmo 2000 Transmitter

SKU: HLYCSMM7KT
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hollyland Cosmo M7 Specifications

Cosmo M7 Monitor

Cosmo M7 Monitor

Jump to...

  • Screen Dimension

    7" (17.7cm)

  • Physical Resolution

    1920x1200

  • Contrast Ratio

    1100:1

  • Brightness

    > 1500nits

  • Viewing Angle

    178 Degree

  • Power Consumption

    <19W

  • Audio Output

    3.5mm Headphone Interface

  • Video Format

    480P@60Hz
    576P@50
    720P@60, 50Hz
    1080P@60, 50HzHz
    1080P@23.98, 24, 25, 29.97, 30Hz
    1080i@60, 50Hz
    1080Psf@23.98, 24, 25, 29.97, 30Hz

  • Frequency

    5GHz

  • Modulation Mode

    OFDM

  • Receiving Sensitivity

    -75dBm

  • Bandwidth

    40MHz

  • Dimension (L x W x H)

    7.55 x 4.72 x 0.94" (192 x 120 x 24mm)

  • Weight

    1.65 lbs (750g) Excluding external antenna and battery buckle (without handle)

Transmitter: Wireless

Jump to...

  • Wireless Range

    2000' (609.6m)

  • Channel Bandwidth

    40 MHz

  • Frequency Range

    US: 5.1 to 5.9 GHz

  • RF Power

    <= 18 dBm

  • RF Sensitivity

    -75 dBm

Transmitter: Interfaces

Jump to...

  • Antenna Ports

    2x RP-SMA Female

  • Video Connectors

    1x HDMI Input
    1x BNC (3G-SDI / HD-SDI / SD-SDI) Input
    1x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output

  • Audio Connectors

    1x 1/8" (3.5mm) TRS Stereo Analog Input

  • Other I/O

    1x USB Mini-B USB 3.1 / USB 3.2 Gen 1 Input

  • Embedded Audio

    HDMI/SDI: 2-Channel

Transmitter: Format

Jump to...

  • Video Format

    1080p at 23.98, 24, 25, 29.97, 30, 50, 60 fps
    1080PsF at 23.98, 24, 25, 29.97, 30 fps
    1080i/720p at 50, 60 fps
    576p at 50 fps
    480p at 60 fps

  • LUT Support

    Yes

Transmitter: Display

Jump to...

  • Panel Type

    OLED

Transmitter: Power

Jump to...

  • Built-In Battery

    None

  • Power Connector

    1x 4-Pin LEMO (7 to 36 VDC) Input

  • Power Consumption

    Device: (9 W)

Transmitter: Environmental

Jump to...

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Transmitter: General

Jump to...

  • Dimensions

    4.57 x 2.68 x 0.98" (11.6 x 6.8 x 2.5cm)

  • Weight

    11.1 oz (315g)

About Hollyland Cosmo M7

• 1,500 Nits High Brightness Monitor: High Sharpness, A Perfect Partner for Focus Pulling
• Touch Screen for Easy Control at Your Fingertips: HDR High Dynamic Range Display
• Support 3D LUT Import, Accurate Color Control: Support Multiple Aspect Ratios
• 600ft Stable & Reliable: Wireless Video Transmission
• Smart Channel Scan: Select the Best Channel from the Start
• 1TX Works with Multiple RX: Fits Different Monitoring Needs
• ARRI Mini Playback No Black Screen: For High Filming Efficiency
• Three Customizable Shortcut Buttons
• Supports DUAL F970 and DC Power Supply: Two F970 Batteries Last for 3-4 Hours
• Compatible with: All Mainstream Follow Focus

Hollyland Cosmo M7 Features

  • False Color
  • Zebra
  • Histogram
  • Waveform
  • Mark Ratio
  • Audio Meter
  • 3D LUT
  • Screen Rotation
  • Zoom
  • Pixel-to-Pixel
  • HV Delay
  • Mono Color Display

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • False Color
  • Zebra
  • Histogram
  • Waveform
  • Mark Ratio
  • Audio Meter

What's in the box:

  • Cosmo M7 7 " Full HD Touchscreen Wireless LCD Monitor
  • Cosmo 2000 Transmitter
  • 2x Wooden Handle
  • 4x M3x8 Socket Head Cap Screw
  • D-Tap to 2-Pin Lemo Spring Cable
  • Neck Strap
  • Screen Hood
  • (Battery and Power Supply Not Included)
  • Hollyland 1 Year Limited Warranty
