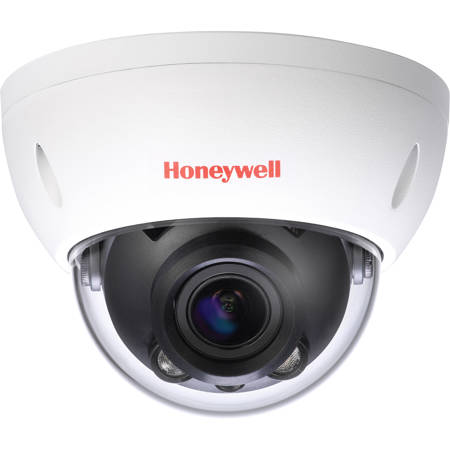

Honeywell HD73HD1 HQA Indoor/Outdoor TDN IR Mini Dome Camera with 2.7-12mm Lens
See all Honeywell items

Honeywell Performance Series HD73HD1 HQA Indoor/Outdoor True Day & Night IR Mini Dome Camera with 2.7-12mm Varifocal Lens, 1280x720, 30fps, 2 IR LED, H.264

SKU: HOHD73HD1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Honeywell HD73HD1 Specifications

  • Video Standard

    NTSC

  • Scanning System

    Progressive

  • Image Sensor

    1/2.9" 1 MP CMOS

  • Number of Pixels

    1280 (H) x 720 (V)

  • Minimum Illumination

    0.01 lux at F1.2 (AGC on); 0 lux (IR LEDs on)

  • Video Output

    1-channel BNC HQA 720p

  • Video Frame Rate

    720p at 30/25 fps (NTSC/PAL)

  • Sync System

    Internal

  • Automatic Electronic Shutter

    1/60-1/100,000 s

  • Lens Type

    2.7-12 mm VFMI

  • Horizontal Angle of View

    105.5 to 32.9 deg.

  • Vertical Angle of View

    61.6 to 20.3 deg.

  • IR LEDs

    850 nm, 12 LEDs

  • IR Illumination Distance

    Up to 100' / 30.48m, depending on scene reflectance

  • Day/Night

    Auto with ICR

  • Automatic Gain

    Control Auto

  • White Balance

    Auto

  • Digital Noise Reduction

    Auto (2D)

  • Input Voltage

    12 V DC +/-10%

  • Power Consumption

    5.0 W max (IR LEDs on)

  • Construction

    Die-cast aluminum

  • Connectors

    Video output: BNC connector; Power input: 2.1 mm plug

  • Temperature

    Operating: -22 to 140 deg. F / -30 to 60 deg. C; Storage: -40 to 158 deg. F / -40 to 70 deg. C

  • Relative Humidity

    10% to 100%, condensing

  • Rating

    IP66, IK10

  • Emissions

    FCC, Part 15B, Class B, EN 55022

  • Immunity

    EN 50130-4

  • RoHS

    EN 50581

  • System Compatibility

    HRHM: H.264 4-Ch 1080p HQA Embedded DVR
    HRHH: H.264 4/8/16-Ch 1080p HQA Embedded DVR

  • Dimensions

    4.8 x 3.5" / 12.19 x 8.89cm

  • Weight

    0.99lbs / 0.45kg

  • UPC Code

    886618217944

About Honeywell HD73HD1

Performance Series HQA 720p True Day/Night IR Ball and Dome Cameras
Supercharge your analog security system with Honeywell's HQA technology for high definition 720p images over your existing coax infrastructure. The Performance Series HQA line includes a wide range of high performing IR cameras that are easy to install and even easier to use.

Superior Image Quality
• High definition 720p image with 1/2.9" 1 MP sensor
• Long distance transmission over coaxial cables with low attenuation and latency-up to 984 ft (300 m) over RG59
• Vivid color pictures by day and clear black-and-white pictures at night
• Excellent low-light performance (0.01 lux color, 0 lux b/w)
• 2.7f 12 mm varifocal manual iris lens

24-Hour Surveillance
• True Day/Night capability
• Smart infrared (IR) technology for even distribution of IR
• IR LEDs provide up to 100 ft (30 m) of illumination, depending on scene reflectance

Dependable Performance
• Weatherproof IP66-rated housing
• IK10 impact rating

Easy Installation
• Compact design for fast, easy installation
• Mounts directly to a ceiling or wall
• Uses existing BNC cabling; no rewiring required

Market Opportunities The HD29HD1, HD30HD1 and HD73HD1 cameras are cost-effective surveillance solutions suitable for a variety of applications, including schools, colleges, hospitals, commercial sites, industrial parks, airports, gated entrances, loading docks and driveways.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Honeywell Performance Series HD73HD1 HQA Indoor/Outdoor True Day & Night IR Mini Dome Camera with 2.7-12mm Varifocal Lens
  • Honeywell 2 Year Warranty
