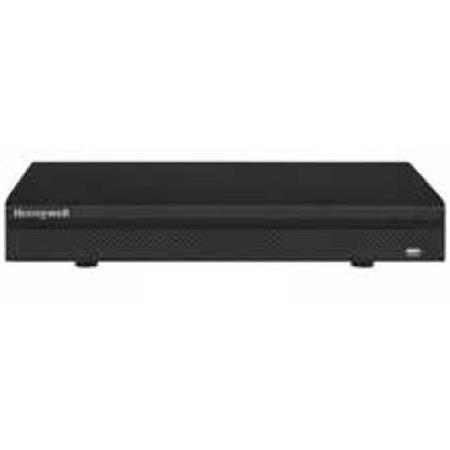

Honeywell HQA Series HRHM1041 4-Channel Hybrid DVR with 1TB HDD, 1080p at 60fps, H.264, G.711

SKU: HOHRHM1041

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

marvin j : how do i reset the password for honeywell hrhm1041 dvr ?ANDREW R : For tech support or troubleshooting I'd recommend contacting the manufacturer.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Honeywell HRHM1041 Specifications

  • Main processor

    Embedded processor

  • Operating System

    Embedded LINUX

  • Video Inputs

    4 channels BNC

  • HQA Standard

    720p HQA, Up-the-COAX control supported

  • Analog Standard

    NTSC/PAL: CVBS, including 960H

  • Audio Input

    4 channel, RCA

  • Audio Output

    1 channel, RCA

  • Two-way communication

    Reuse audio input/output channel 1

  • Interface

    1 HDMI; 1 VGA

  • Resolution

    1280 x 720; 1024 x 768; 800 x 600

  • Resolution

    1280 x 720; 1024 x 768; 800 x 600

  • Display Split

    1/4

  • Privacy Masking

    4 rectangular zones for each camera

  • OSD

    Camera title; Time; Video loss; Camera lock; Motion detection; Recording

  • Compression

    H.264 / G.711

  • Main Stream Recording Rate

    50/60fps at 1080p; 100/120fps at 720p, 960H, 4CIF, CIF

  • Secondary Stream Recording Rate

    Up to 12/15 fps per channel at 4CIF; 25/30 fps per channel at CIF/QCIF

  • Bit rate

    48 to 4096 kbps

  • Recording Mode

    Manual; Schedule (Regular [Continuous], Motion Detection); Alarm (for alarm-triggered recording); Stop

  • Pre-Recording Interval

    1 to 30 seconds

  • Post-Recording Interval

    10 to 300 seconds

  • Trigger Events

    Recording; Tour; Video push; Email; FTP; Spot; Buzzer; Screen Tips

  • Video Detection

    Motion Detection; Motion Detection Zones (396: 22 x 18); Video Loss; Camera Blank

  • Alarm Input

    4 channels

  • Relay Output

    3 channels

  • Sync Playback

    1/4

  • Search Mode

    Time/Date; Alarm; Motion Detection; Exact Search (accurate to a second)

  • Playback Function

    Play; Pause; Stop; Rewind; Fast play; Slow play; Full Screen; Repeat; Shuffle; Backup selection; Digital zoom

  • Backup Mode Compatibility

    USB Device; Network

  • Ethernet

    1 x RJ-45 port (10/100 Mbps)

  • Network Function

    HTTP; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP filter; PPPoE; DDNS; FTP; IP filter, P2P

  • Maximum number of users

    128 users

  • Smart phone compatibility

    iPhone; iPad; Android (phone and tablet)

  • Internal Storage

    1 SATA port; up to 4 TB

  • USB

    2 ports (1 on rear panel), USB 2.0

  • RS232

    1 port, for PC communication and keyboard (not available on 4-channel DVRs)

  • RS485

    1 port, for PTZ control

  • Power Supply

    12 V DC; 2 A

  • Power Consumption

    10 W (without HDD)

  • Operating Temperature

    14 to 131 deg. F / -10 to 55 deg. C

  • Humidity

    10% to 90%

  • Emissions

    FCC Part 15B, CE EN55022

  • Immunity

    CE EN50130-4

  • Safety

    EU: EN60950-1

  • RoHS

    EN 50581

  • Dimensions

    12.6 x 10.0 x 2.2" / 32.00 x 25.40 x 5.59cm

  • Weight

    3.3lbs / 1.50kg

  • UPC Code

    886618217821

About Honeywell HRHM1041

Supercharge your Analogue security system with Honeywell's HQA (High Quality Analog) technology for High Definition 720p images over your existing coax infrastructure. The Performance Series HQA 720p DVRs are the economic alternative for achieving HD video surveillance while retaining your existing BNC cables and cameras.

Fully-featured DVRs
• High decoding capability for full HD viewing and recording.
• View up to 16 channels simultaneously on your monitor with 1080p full-frame rate preview.
• Up to 4 channels of alarm input and 3 channels of alarm relay output.
• Record all channels @ either 720p full frame rate or 1080p half frame rate.
• H.264 dual-stream video compression.
• Each channel supports HQA cameras
• Simultaneous HDMI/VGA video output.
• Hybrid models support both Standard Definition (SD) and High Quality Analog (HQA).

Easy to Use
• The Quick wizard and plug-and-play (similar to traditional DVRs and analog cameras) make setup fast and easy.
• Physical installation within minutes with the help of a comprehensive and easy-to-understand quick installation guide.

Convenient, Flexible Storage Options
• Internal storage supports two HDDs, up to 4 TB total.
• Store videos and snapshots to external storage, such as the client's PC, through the Internet.
• Store videos and snapshots to an external network storage server such as an FTP site.
• Store videos and snapshots to a USB memory device.

Dynamic, Accessible Monitoring
• Monitor from anywhere using the mobile apps for Apple, Android and Windows smartphones, Apple and Android tablet computers and laptops.
• Network monitoring, including the transmission of some alarm information through SNMP.
• All channels support synchronous playback and smart search (search for video that was recorded because motion was detected in a selected area).

Privacy Masking
• Conceal up to 4 areas of a scene from viewing and recording.

Safety Features
• Configurable motion detection and camera tamper detection settings, including configurable alarm alerts, such as automatic emails (with attached video or snapshot) and automatic alerts (such as buzzers or flashing lights).
• Remote configuration and firmware updating through Honeywell Viewer web client and the Honeywell Config tool. Password-protected access to the camera's and DVR's video and network setup.
• Bidirectional communication for the DVR.

Market Opportunities
The Performance Series HQA 720p DVRs' HQA technology makes these DVRs perfect for installations where you want HD-quality video while still using your existing coax infrastructure. These HQA DVRs also deliver higher quality video than current 960H analog systems, but at a similar cost.

What's in the box:

  • Honeywell HQA Series HRHM1041 4-Channel Hybrid DVR with 1TB HDD
  • Honeywell 2 Year Warranty
