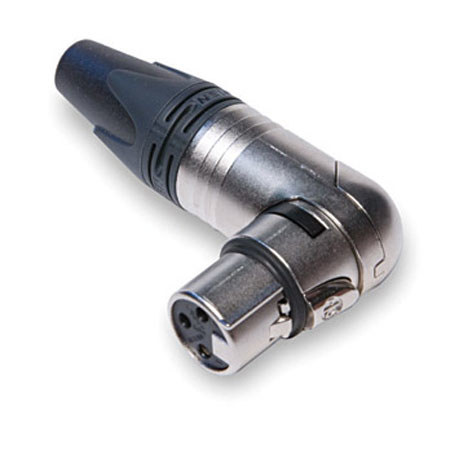

Hosa Technology Hosa Neutrik 3 Pole Right Angle XLR Female Cable Connector
See all Hosa Technology items
59% Off

Hosa Technology Neutrik 3 Pole Right Angle XLR Female Cable Connector

SKU: HONC3FRX MFR: NC3FRX
Be the first to review this itemAsk a Question
$10.95
$26.75
Save: $15.8 (59%)
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this Hosa Technology right-angle XLR female connector.
  • Right-angle design fits in tight spaces, making cable management a breeze for audio setups.
  • Durable Neutrik connector ensures long-lasting performance for professional audio applications.
  • Enjoy broad compatibility with standard XLR cables, ideal for microphones and audio interfaces.
  • Robust shielding minimizes interference, delivering clean, clear audio for recording or live sound.
  • Built to last, this XLR connector offers over 1,000 mating cycles, ensuring reliable connections.
See More Product Details
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main advantage of the right angle design of this XLR connector?

The right angle design of the Hosa Neutrik 3 Pole XLR Female Cable Connector is especially beneficial for tight spaces where traditional connectors may not fit. It allows for easier and more convenient connections in such scenarios.

What is the purpose of the cable strain relief feature?

The cable strain relief feature on the Hosa Neutrik 3 Pole XLR Female Cable Connector helps protect your cables from damage due to bending or twisting. This increases the longevity and reliability of your audio equipment.

Is this connector suitable for professional audio applications?

Yes, the Hosa Neutrik 3 Pole XLR Female Cable Connector is ideal for professional audio applications. It can be used to connect a microphone or instrument to a mixing console or soundboard, ensuring high-quality and clear signal transmission.

What does it mean that this connector improves contact integrity?

Improving contact integrity means that the connector enhances the stability and clarity of the signal transmission. This ensures that the audio output is clear and consistent, enhancing the overall performance of your audio setup.

What devices is this connector compatible with?

This connector is designed to connect a 3-pin XLR female cable to a device with a 3-pin XLR male input. This makes it versatile and suitable for a wide range of professional audio equipment.

Reviews about this item

Review Summary

Hosa Technology Hosa Neutrik 3 Pole Right Angle XLR Female Cable Connector Specifications

  • Connector

    Right-angle XLR3F

  • Capacitance

    Between Contacts: =4 pF

  • Contact Resistance

    Inner: =3 mOhm

  • Dielectric Strength

    1.5 kVDC

  • Insulation Resistance

    Initial: >2 GOhm

  • Rated Current Per Contact

    16 A

  • Rated Voltage

    50 V

  • Cable

    OD (Outer Diameter): 0.14 x 0.32" (3.5 to 8 mm)

  • Insertion Force

    =20 N

  • Withdrawal Force

    =20 N

  • Lifetime

    >1,000 mating cycles

  • Wire Size

    0.1 sq. in (2.5 sq. mm)
    14 AWG

  • Wiring

    Solder contacts

  • Boot

    Polyurethane

  • Contact Plating

    2 um Ag

  • Contacts

    Bronze (CuSn8)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking Element

    Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell Plating

    Nickel

  • Strain Relief

    Polyacetal (POM)

  • Flammability

    UL 94 HB

  • Standard Compliance

    IEC 61076-2-103

  • Protection Class

    IP40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature Range

    -22 to 176deg.F (-30 to 80deg.C)

  • Dimensions

    2.87x1.61x 0.62" / 72.9x41x15.8mm

  • UPC Code

    7613187000522

About Hosa Technology Hosa Neutrik 3 Pole Right Angle XLR Female Cable Connector

Be assured of superior connectivity with the Hosa Neutrik 3 Pole Right Angle XLR Female Cable Connector. This high-quality connector, part of the esteemed RX series, is designed with a right angle feature, making it an ideal solution for tight spaces where traditional connectors might not fit.

Crafted by Hosa Technology, a trusted name in the realm of professional audio and video cables, this durable connector is built to last. It's not just sturdy, but also reliable, ensuring consistent performance even in demanding environments.

This professional-grade connector is designed to connect a 3-pin XLR female cable to a device with a 3-pin XLR male input. It's a common choice for professional audio applications, such as linking a microphone or instrument to a mixing console or soundboard.

One of the standout features of this connector is its ability to improve contact integrity, ensuring a stable and clear signal transmission. Additionally, it offers enhanced cable strain relief, protecting your cables from damage due to bending or twisting.

Choose the Hosa Neutrik 3 Pole Right Angle XLR Female Cable Connector for a reliable, high-quality connection in your professional audio setup.

Hosa Technology Hosa Neutrik 3 Pole Right Angle XLR Female Cable Connector Features

  • Slim right-angled connector
  • 5 selectable cable outlet positions
  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch that is large and easy to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck-type strain relief provides high pull-out force and makes assembly easy and fast
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design makes it valuable and handy

Warranty Information

This product has a limited warranty of 6 months.
