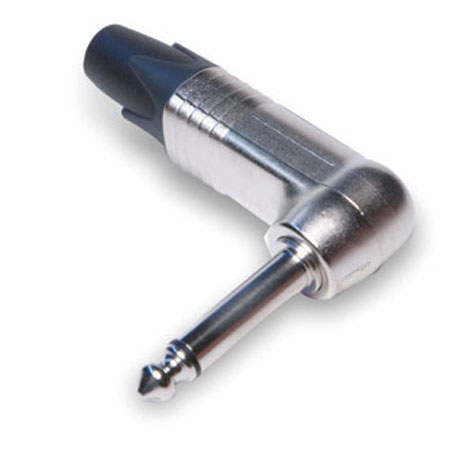

Hosa Technology NP2RX Neutrik Professional Right-Angle 1/4" Phone Plug

SKU: HONP2RX MFR: NP2RX
$6.95
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this professional-grade Hosa 1/4" phone plug.
  • Right-angle design fits perfectly in tight spaces, preventing cable strain and noise.
  • Durable construction ensures long-lasting performance, ideal for frequent use on guitars.
  • Experience reliable connections for instruments & audio equipment with this Hosa connector.
  • This Hosa 1/4" phone plug offers broad compatibility with amps, mixers, and more!
  • Get pristine audio signal transfer with gold-plated contacts for low noise and clarity.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hosa Technology NP2RX Specifications

  • Connection Type

    Plug

  • Gender

    Male

  • Dielectric Strength

    1 kVDC

  • Insulation Resistance

    >2 GOhm (initial)

  • Rated Current Per Contact

    Depends on mating connector A

  • Rated Voltage

    50 V

  • Cable O.D.

    4 to 7 mm

  • Lifetime

    >1000 mating cycles

  • Wire Size

    1 mm2, 18 AWG

  • Wiring

    Solder contacts

  • Solder contacts

    Polyacetal (POM) + PU

  • Contact Plating

    2 um Ni (Su)

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell Plating

    Nickel

  • Strain Relief

    Polyacetal (POM)

  • Standard Compliance

    IEC 60603-11 / EIA RS-453

  • Solderability

    Complies with IEC 68-2-20

  • Temperature Range

    -4 to 149deg.F (-20 to 65deg.C)

  • UPC Code

    7613187000850

About Hosa Technology NP2RX

An essential tool for professional audio setups, the NP2RX Neutrik Professional Right-Angle 1/4" Phone Plug by Hosa is meticulously designed for optimal performance. This high-quality connector features a slender A-gauge 1/4" plug, enhanced with Neutrik's unique chuck type strain relief for superior cable retention and durability.

The compact design of the plug, with a slimline shell width of just 0.57" (14.5mm), is specifically engineered to meet the stringent requirements of high-density jackfields, accommodating a 15.88mm jack pitch. This makes it an ideal choice for complex audio setups where space is at a premium.

What sets this right-angle phone plug apart is its precision-machined, one-piece tip contact. This innovative design, devoid of rivets, not only ensures a reliable connection but also eliminates the risk of hooking up in a socket or breaking off the tip.

The versatility of the NP2RX Neutrik Professional Right-Angle 1/4" Phone Plug makes it a valuable asset for a wide range of applications. Whether you're connecting guitars, audio cables, snakes, speakers, amplifiers, or mixing desks, this plug delivers consistent, high-quality performance. Trust in the Hosa NP2RX Neutrik Professional Right-Angle 1/4" Phone Plug for all your professional audio connection needs.

Hosa Technology NP2RX Features

  • 2-Pole
  • Die-Cast Nickel Slimline Shell
  • Nickel Contacts
  • For Guitars & Other Audio Applications

Warranty Information

This product has a limited warranty of 6 months.

Key Features

  • Achieve superior sound quality with this professional-grade Hosa 1/4" phone plug.
  • Right-angle design fits perfectly in tight spaces, preventing cable strain and noise.
  • Durable construction ensures long-lasting performance, ideal for frequent use on guitars.
  • Experience reliable connections for instruments & audio equipment with this Hosa connector.
  • This Hosa 1/4" phone plug offers broad compatibility with amps, mixers, and more!
  • Get pristine audio signal transfer with gold-plated contacts for low noise and clarity.

What's in the box:

  • Hosa NP2RX Neutrik Professional Right-Angle 1/4" Phone Plug
  • Hosa Technology Limited 180 Day Warranty
