Hotone Ravo MP-10 Multi-Effects Processor
See all Hotone items

Hotone Ravo MP-10 Multi-Effects Processor with USB Interface, Drum Machine and Phrase Looper

SKU: HOTMP10

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hotone Ravo MP-10 Specifications

  • Effect Types

    130

  • Simultaneous Effects

    8x

  • Memory Preset Banks

    Preset: 10 banks with 10 patches apiece
    User: 10 banks with 10 patches apiece

  • Resolution

    32-bit on board

  • Sample Rate

    44.1 kHz

  • A/D and D/A Conversion

    A/D conversion: 24-bit with 512 x oversampling
    D/A conversion: 24-bit with 512 x oversampling

  • Phrase Looper

    Maximum recording time: 30 seconds

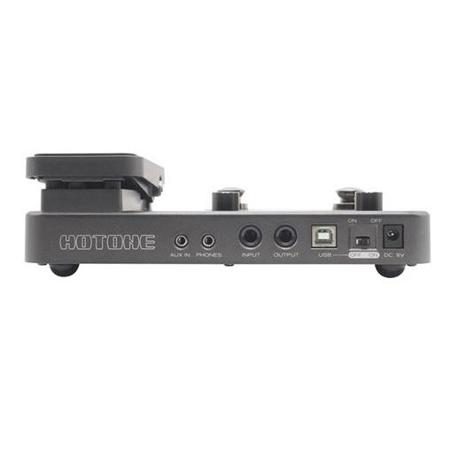

  • Analog I/O

    1 x 1/4" / 6.35 mm mono instrument jack, input
    1 x 1/8" / 3.5 mm stereo jack, auxiliary input
    1 x 1/4" / 6.35 mm stereo phone jack, output
    1 x 1/8" / 3.5 mm stereo jack, headphone output

  • USB

    Type-B, USB bus powered, USB Audio 2.0, USB MIDI

  • Impedance

    Input: 470k Ohms
    Output: 100Ohms at output jack

  • Signal to Noise Ratio

    106 dB

  • AC Adapter

    9 VDC, 500 mA, center negative

  • Batteries & Runtime

    4 x AAA alkaline batteries
    6.5 hours of continuous operation

  • Dimensions (D x W x H)

    210 x 125 x 50mm / 8.27 x 4.92 x 1.97"

  • Weight

    Without Batteries: 650g / 22.93oz

  • UPC Code

    888506050015

About Hotone Ravo MP-10

Hotone RAVO is a multi-effects processor and USB audio interface. This tiny, light-weight pedal has all the functions you need-130 effects in 8 useful modules, 100 amazing presets, a built-in drum machine with 100 patterns, 30 seconds of recordable looping and a high quality USB audio interface. Plus, it comes with a free, user-friendly software-RAVO Tonebank-for editing and sharing your own tone. Ravo will be your best live performance and recording tool.

Hotone Ravo MP-10 Features

  • 8 Effect Modules
  • 130 Effect Types
  • 100 Preset Patches
  • 100 User Patches
  • 44.1kHz sampling, 24-bit A/D/A Conversion
  • 32-bit DSP Processor Onboard
  • Assignable Expression Pedal
  • Free RAVO Tonebank software available for editing and sharing tones
  • Built-in drum machine with 100 patterns
  • 30 seconds recordable looper
  • Precise Tuning function
  • Patch Pre-Select Recall function
  • Bright, easy-to-check display
  • Compact operation interface
  • 4x AAA battery power supply and USB bus power supply available

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hotone Ravo MP-10 Multi-Effects Processor
  • AC Adapter
  • Hotone 1 Year Limited Warranty
