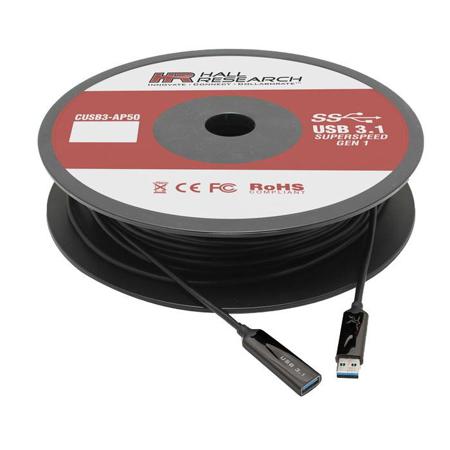

Hall Research CUSB3-AP USB 3.0/3.1 Gen1 Javelin Active Optical Plenum Cable, 50'

SKU: HRCUSB3AP15 MFR: CUSB3-AP15
Earn VIP Reward Points

Key Features

  • Experience rapid data transfer with this 50-foot USB 3.0 cable, up to 5 Gbps bandwidth.
  • This durable USB cable is plenum-rated, ensuring safe in-wall installations for any environment.
  • Extend your USB connections reliably with this active optical cable, perfect for remote devices.
  • Enjoy wide compatibility; this USB 3.0 cable supports both USB 3.0 & 3.1 Gen 1 standards.
  • This 50' USB cable supports a variety of devices, ensuring seamless connectivity for all setups.
  • Built for durability, this USB cable has a minimum bend radius of 0.3", ensuring longevity.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research CUSB3-AP Specifications

Performance

Performance

Jump to...
  • Input

    Male USB 3.0 Type A

  • Output

    Female USB 3.0 Type A

  • Available Lengths

    50' (15m)

  • USB Standards

    USB 3.0 or USB 3.1 Gen 1

  • Bandwidth

    5 Gbps max

Electrical

Jump to...
  • Supply Voltage

    Powered from USB 5v pin

  • Nominal

    5v (operating range: 4.7v-5.3v)
    Damage will occur if 5v input > 6v

  • Supply Current

    Nominal: 50 ma max (not including remote USB device load)

  • Power Consumption

    Nominal: 0.25 watts

  • Grade

    Plenum CMP (UL)

  • Color

    Black

  • Diameter

    0.2" (5mm)

  • Bend Radius

    0.3" (8mm) minimum

  • Connector Pull Strength

    22 lb (10Kg) maximum (never pull on the connector, use a pulling sock)

General

Jump to...
  • Connector Housing

    USB A Male (Host side)

  • Temperature/Humidity

    Storage: -4 to +158 Degree F (-20 to +70 Degree C)
    5% to 90%, non-condensing
    Operating: +32 to +122 Degree F (0 to +50 Degree C)
    10% to 85%, non-condensing

  • Regulatory EMI/EMC

    CE, RoHS
    CE, FCC Class A

  • Dimensions

    1.4 x 0.6 x 0.3" (35.6 x 15.3 x 7.6mm)
    Total length including USB and Strain relief: 2.3" (58.4mm)
    USB A Female (device side)
    1.8 x 0.6 x 0.3" (45.7 x 15.3 x 7.6mm)
    Total length including Strain relief 2.2" (55.9mm)

About Hall Research CUSB3-AP

Find the perfect solution for your high-speed data transfer needs with the CUSB3-AP USB 3.0/3.1 Gen1 Javelin Active Optical Plenum Cable. This 50-foot cable is a proud member of Hall Research's esteemed Javelin family, known for their superior active optical video and USB cables.

Designed to extend USB 3.0 (also compatible with USB 3.1 Gen1) Super-Speed signals, this cable is capable of supporting data rates of up to 5 Gbps. This makes it an ideal choice for transferring large files, such as high-resolution images, 4K videos, or extensive data from USB 3.0 memory devices.

Constructed using a hybrid of fiber and copper, this lightweight cable offers high immunity to EMI and RFI noise, ensuring trouble-free operation. The Plenum (CMP) Rated jacket material complies with modern building codes, making it a safe and reliable choice for any setting.

The CUSB3-AP cable is powered by a 5v USB host connection and sends 5v via its copper wires to the remote device end, eliminating the need for an additional power supply. Its small cable ends can be easily pulled through most conduits, making installation a breeze.

This cable is compatible with virtually all USB 3.0 and 3.1 Gen1 devices, making it a versatile solution for extending 4K videoconferencing cameras, video capture, docking stations, and other high-speed data communications. Please note that the CUSB-AP cables are designed to extend USB 3.0 signals and are not recommended for use with USB 2.0 or 1.1 devices. For those devices, Hall Research offers special hubs with USB 2.0/1.1-to-USB3.0 Transaction Translators.

Experience the durability, flexibility, and reliability of the CUSB3-AP USB 3.0/3.1 Gen1 Javelin Active Optical Plenum Cable, a high-quality product from a reputable brand like Hall Research.

Hall Research CUSB3-AP Features

  • Plenum Rated
  • Data transfer rates of up to 5 Gigabits per second
  • Offers fiber-optic noise immunity
  • No additional power supply required
  • Supports all USB 3.0 devices (USB 2.0 not supported)
  • Thin and flexible with bend radius of 0.3 inch
  • Plug and Play, no driver required

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience rapid data transfer with this 50-foot USB 3.0 cable, up to 5 Gbps bandwidth.
  • This durable USB cable is plenum-rated, ensuring safe in-wall installations for any environment.
  • Extend your USB connections reliably with this active optical cable, perfect for remote devices.
  • Enjoy wide compatibility; this USB 3.0 cable supports both USB 3.0 & 3.1 Gen 1 standards.
  • This 50' USB cable supports a variety of devices, ensuring seamless connectivity for all setups.
  • Built for durability, this USB cable has a minimum bend radius of 0.3", ensuring longevity.

What's in the box:

  • CUSB3-AP USB 3.0/3.1 Gen1 Javelin Active Optical Plenum Cable (50')
  • Hall Research 3 Year Limited Warranty
