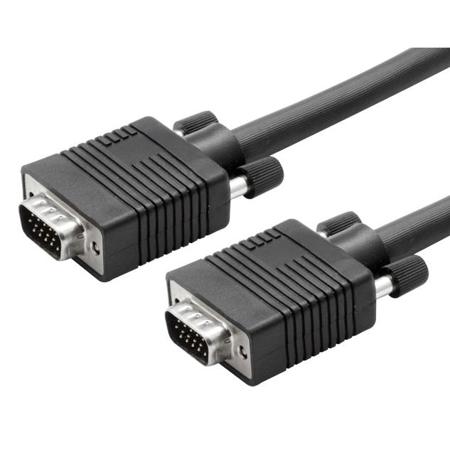

Hall Research 3' Multi-Coaxial Male to Male VGA Extension Cable

SKU: HRCVGAX03MM MFR: CVGA-X-03-MM
$12.54
Earn VIP Reward Points

Key Features

  • Extend your display with this 3 ft VGA extension cable, perfect for monitors & projectors!
  • Experience reliable video connectivity with our male to male VGA cable, 75Ohms impedance.
  • Enjoy crystal-clear images using our triple-coaxial VGA cable, supporting up to 100 MHz!
  • This VGA cable ensures minimal signal loss, attenuation per 100' at 1.0 MHz 0.5 dB.
  • Durable PVC jacket protects this VGA cable, VW1 flame test, minimum bend radius 3.0".
  • Get optimal shielding with our 85% coverage VGA cable, prevents signal interference!
See More Product Details
Special Order?Estimated to Ship: 12/18/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the multi-coaxial technology in this VGA cable?

The multi-coaxial technology in this VGA cable ensures a stable and seamless data transmission between your devices.

Can I use this VGA extension cable for my home theater setup?

Yes, the 3' Multi-Coaxial Male to Male VGA Extension Cable is perfect for setting up a home theater system, connecting to a projector, or extending your workspace with a second monitor.

What does the double shielded design do?

The double shielded design offers superior protection against signal interference, ensuring clear and uninterrupted data transmission.

What is the function of the ferrite bead in this VGA cable?

The ferrite bead enhances the performance of the VGA cable by reducing electromagnetic and radio frequency interference.

Is this VGA cable suitable for professional use?

Absolutely. Its high-quality construction and advanced features make it suitable for both professional and personal use.

Reviews about this item

Review Summary

Hall Research 3' Multi-Coaxial Male to Male VGA Extension Cable Specifications

  • Cable Length

    3' / 0.91m

  • Electricals: Nominal Impedance

    75Ohms (+1- 3Ohms)

  • Electricals: Nominal Capacitance

    17.3 pf/ft

  • Electricals: Nom Velocity of Prop

    78 % that of light

  • Electricals: Nominal Delay

    1.3 n.sec/ft

  • Electricals: Attenuation per 100'

    At 1.0 MHz 0.5 dB
    at 5.0 MHz 1.4 dB
    at 10. MHz 2.0 dB
    at 50. MHz 5.0 dB
    at loo MHz 7.5 dB

  • Flame Test

    Sheath VW1

  • Minimum Bend Radius

    3.0" / 7.62cm

  • Coax Construction

    28 AWG (7x36)

  • No. of coax conductors

    3 ea. (RGB)

  • Non coax construction

    24 AWG (7x32)

  • No. of non-coax conductors

    8

  • Outside Jacket Material

    PVC

  • Outside Diameter

    0.37" / 0.94cm

  • Overall Shield braid

    85% coverage

  • Shield Drain wire

    24 AWG (7x32)

  • Alum Foil/Mylar 100%

    25 u, 100% + 25% overlap

  • Maximum Pulling Tension

    70lbs / 31.75kg

About Hall Research 3' Multi-Coaxial Male to Male VGA Extension Cable

It's the 3' Multi-Coaxial Male to Male VGA Extension Cable, a vital accessory for your electronic devices. This high-quality VGA cable is designed with multi-coaxial technology, ensuring a seamless and stable connection between your devices. The cable features a male to male configuration, making it easy to extend your VGA interface to new locations.

Constructed with a double shielded design, this VGA extension cable offers superior protection against signal interference, ensuring clear and uninterrupted data transmission. The inclusion of a ferrite bead further enhances its performance by reducing electromagnetic and radio frequency interference.

Whether you're setting up a home theater system, connecting your computer to a projector, or extending your workspace with a second monitor, this 3' Multi-Coaxial Male to Male VGA Extension Cable is the reliable solution you need. It's not just a cable; it's a bridge to enhanced visual experiences.

Hall Research 3' Multi-Coaxial Male to Male VGA Extension Cable Features

  • 75Ohms matched impedance, low attenuation coax construction
  • Ferrite Cores at each end for best picture quality and immunity to noise
  • Double shielded
  • 3 coax (for RGB) plus 8 conductors

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your display with this 3 ft VGA extension cable, perfect for monitors & projectors!
  • Experience reliable video connectivity with our male to male VGA cable, 75Ohms impedance.
  • Enjoy crystal-clear images using our triple-coaxial VGA cable, supporting up to 100 MHz!
  • This VGA cable ensures minimal signal loss, attenuation per 100' at 1.0 MHz 0.5 dB.
  • Durable PVC jacket protects this VGA cable, VW1 flame test, minimum bend radius 3.0".
  • Get optimal shielding with our 85% coverage VGA cable, prevents signal interference!

What's in the box:

  • Hall Research 3' Multi-Coaxial Male to Male VGA Extension Cable
  • Hall Research 3 Year Limited Warranty
