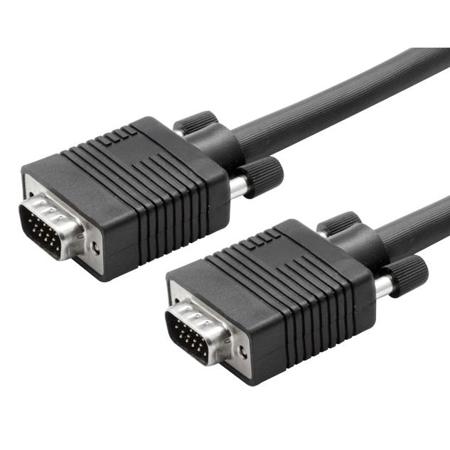

Hall Research 100' Multi-Coaxial Male to Male VGA Extension Cable

SKU: HRCVGAX100MM MFR: CVGA-X-100-MM
$108.68
Earn VIP Reward Points

Key Features

  • Extend your display with this 100ft VGA cable, perfect for presentations and classrooms.
  • Experience reliable video connectivity using our high-quality male to male VGA cable.
  • Enjoy crystal-clear images with our low-loss VGA extension cable, up to 100 feet long.
  • This robust VGA cable supports sharp resolutions, ideal for monitors and projectors.
  • Get superior shielding with our VGA cable, reducing interference for optimal viewing.
  • Durable PVC jacket protects this 100ft VGA cable, ensuring long-lasting performance.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research 100' Multi-Coaxial Male to Male VGA Extension Cable Specifications

  • Cable Length

    100' / 30.48m

  • Electricals: Nominal Impedance

    75Ohms (+1- 3Ohms)

  • Electricals: Nominal Capacitance

    17.3 pf/ft

  • Electricals: Nom Velocity of Prop

    78 % that of light

  • Electricals: Nominal Delay

    1.3 n.sec/ft

  • Electricals: Attenuation per 100'

    At 1.0 MHz 0.5 dB
    at 5.0 MHz 1.4 dB
    at 10. MHz 2.0 dB
    at 50. MHz 5.0 dB
    at loo MHz 7.5 dB

  • Flame Test

    Sheath VW1

  • Minimum Bend Radius

    3.0" / 7.62cm

  • Coax Construction

    28 AWG (7x36)

  • No. of coax conductors

    3 ea. (RGB)

  • Non coax construction

    24 AWG (7x32)

  • No. of non-coax conductors

    8

  • Outside Jacket Material

    PVC

  • Outside Diameter

    0.37" / 0.94cm

  • Overall Shield braid

    85% coverage

  • Shield Drain wire

    24 AWG (7x32)

  • Alum Foil/Mylar 100%

    25 u, 100% + 25% overlap

  • Maximum Pulling Tension

    70lbs / 31.75kg

About Hall Research 100' Multi-Coaxial Male to Male VGA Extension Cable

Because your setup demands both quality and reach, the 100' Multi-Coaxial Male to Male VGA Extension Cable is the ideal solution for extending your video signal with unwavering reliability. This high-quality, durable cable is designed to connect two male VGA interfaces, ensuring a secure and stable connection for your visual data.

Crafted with a robust multi-coaxial design, this VGA extension cable is double-shielded to minimize signal interference, ensuring a clean and clear transmission even over the considerable length of 100 feet (30.5 meters). The inclusion of a ferrite bead at each end of the cable further enhances signal clarity by filtering out noise and preventing signal loss, making this cable perfect for setups that require a long-distance connection without compromising on video quality.

Flexible yet sturdy, this VGA extension cable is built to withstand the rigors of frequent use, making it a dependable choice for both professional and personal environments. Whether you're setting up a conference room, classroom, or home theater system, this affordable VGA extension cable provides the extended reach you need to connect your source device to your display device seamlessly.

Optimize your visual experience with this VGA Extension Cable, where length and gender compatibility come together to offer a straightforward, high-performance solution for your extended connectivity needs.

Hall Research 100' Multi-Coaxial Male to Male VGA Extension Cable Features

  • 75Ohms matched impedance, low attenuation coax construction
  • Ferrite Cores at each end for best picture quality and immunity to noise
  • Double shielded
  • 3 coax (for RGB) plus 8 conductors

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your display with this 100ft VGA cable, perfect for presentations and classrooms.
  • Experience reliable video connectivity using our high-quality male to male VGA cable.
  • Enjoy crystal-clear images with our low-loss VGA extension cable, up to 100 feet long.
  • This robust VGA cable supports sharp resolutions, ideal for monitors and projectors.
  • Get superior shielding with our VGA cable, reducing interference for optimal viewing.
  • Durable PVC jacket protects this 100ft VGA cable, ensuring long-lasting performance.

What's in the box:

  • Hall Research 100' Multi-Coaxial Male to Male VGA Extension Cable
  • Hall Research 3 Year Limited Warranty
