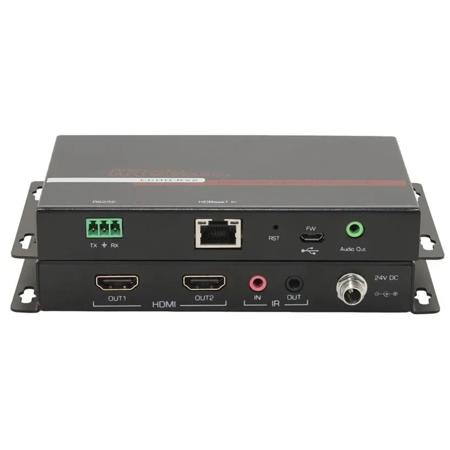

Hall Research ECHO-R HDBaseT Receiver with Analog Audio Extraction

SKU: HRECHORX2 MFR: ECHO-RX2
Earn VIP Reward Points

Key Features

  • Enjoy seamless video format conversion with HDR10 & 3D support for stunning visuals.
  • Extract analog audio easily using the Phoenix Terminal for enhanced sound integration.
  • Experience reliable connection with HDBaseT receiver, ensuring top-notch video quality.
  • Wide-band IR pass-through (38-56 kHz) offers flexible control for your AV setup easily.
  • The Hall Research ECHO-R supports up to 4K@60 4:4:4 resolutions for crystal-clear display.
  • Easily pass RS-232 for control, offering versatile integration with other devices.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research ECHO-R Specifications

  • Video Standards

    HDMI 2.0 video specifications including HDR10, 3D video
    HDCP 2.2, 1.4
    DVI (Single link)

  • Video Connectors

    2x HDMI Outputs

  • Resolutions

    HDTV signal - 480p through 4K@60 4:4:4
    DVI signal VGA (640x480) thru WUXGA (1920x1200)

  • Audio

    All HDMI Embedded audio including: LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio (32-192 kHz sample rate)

  • Other Signals

    RS-232

    1x RX, TX and GND on Terminal Strip
    RS-232 pass-through

  • IR

    Wide-band IR pass-through: 38 - 56 kHz supported

    1x 3.5mm IR Input
    1x 3.5mm IR Output

  • USB

    USB USB 2.0 Micro type B (for firmware update only)

  • Power

    Power Supply
    100 VAC to 240 VAC, 47-63 Hz, External; 24 VDC

    24 VDC 4A

  • Temp/Humidity

    Storage: -40 to +158 Degree F (-40 to +70 Degree C) / 5% to 90%, non-condensing
    Operating: +14 to +131 Degree F (-10 to +55 Degree C) / 5% to 90%, non-condensing

  • Cooling

    Convection

  • Enclosure type

    Metal (Steel)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Estimate)

  • Dimensions (H x W x D)

    0.82 x 6.06 x 3.09" (22.8 x 153.9 x 78.5mm) (All Dimensions Include Mounting Flange Width)

  • UPC Code

    608415712985

About Hall Research ECHO-R

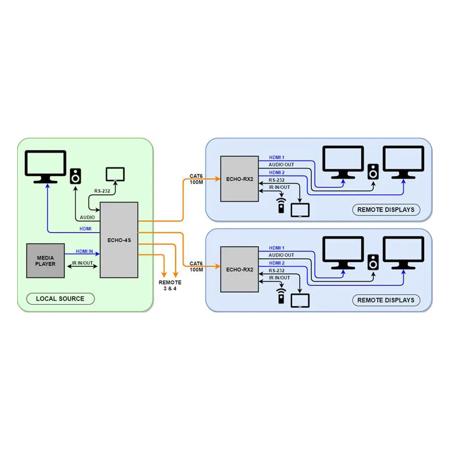

Before you settle for any HDBaseT Receiver, consider the ECHO-R HDBaseT Receiver with Analog Audio Extraction. This advanced and efficient device is part of the ECHO family, a series of high-quality extension products designed to extend a single HDMI 2.0 source to up to eight different locations.

Leveraging the power of HDBaseT technology, this durable receiver can extend HDMI resolutions up to 4K UHD (4K@60 4:4:4) for up to 70 meters, and resolutions up to 1080p for an impressive 100 meters over a single CAT5e or CAT6 cable. This makes it an ideal choice for both commercial and residential installations where high-definition video and audio signals need to be transmitted over long distances, such as large conference rooms, auditoriums, and home theaters.

The ECHO-R HDBaseT Receiver not only supports HDCP 2.2 and 1.4 content protection but also HDR10 high dynamic range video, ensuring the best possible viewing experience. It also extends RS-232 serial data and bi-directional IR for control of remote devices, enhancing its versatility and functionality.

This reliable receiver comes with dual HDMI mirror outputs and analog audio extraction capabilities. It also includes a local HDMI output, EDID routing control, and de-embedded analog audio. The Power over Cable (PoC) feature allows it to power remote receivers, adding to its convenience.

Furthermore, the ECHO-RX2 receiver model boasts a built-in HDMI splitter for connection to a secondary display, RS-232, and bi-directional IR for control, and de-embedded analog audio output. This high-quality HDBaseT Receiver with Analog Audio Extraction is designed to meet your audio and video needs with efficiency and reliability.

Hall Research ECHO-R Features

  • HDBaseT receiver w/dual HDMI outputs
  • Extend UHD 4K@60Hz 4:4:4 up to 70m & 1080p up to 100m
  • HDCP 2.2, HDR10, 3D support
  • Bi-directional RS-232 and IR control
  • Audio extraction
  • EDID management
  • Locking PoC connector

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Enjoy seamless video format conversion with HDR10 & 3D support for stunning visuals.
  • Extract analog audio easily using the Phoenix Terminal for enhanced sound integration.
  • Experience reliable connection with HDBaseT receiver, ensuring top-notch video quality.
  • Wide-band IR pass-through (38-56 kHz) offers flexible control for your AV setup easily.
  • The Hall Research ECHO-R supports up to 4K@60 4:4:4 resolutions for crystal-clear display.
  • Easily pass RS-232 for control, offering versatile integration with other devices.

What's in the box:

  • Hall Research ECHO-R HDBaseT Receiver with Analog Audio Extraction
  • 3-Pin Phoenix Terminal
  • IR TX Cable
  • IR RX Cable
  • User Manual
  • Hall Research 3 Year Limited Warranty
