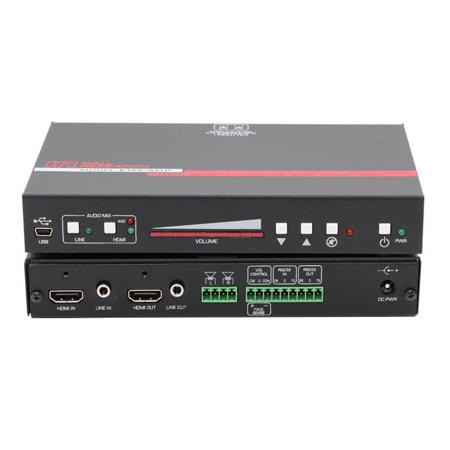

Hall Research EMX-AMP 4K HDMI Audio Extractor with Audio Amplifier and RS-232 Control

SKU: HREMXAMP MFR: EMX-AMP
Earn VIP Reward Points

Key Features

  • Enhance your audio experience with this 4K HDMI audio extractor and amplifier.
  • Enjoy stable streaming with low latency thanks to this device's robust design.
  • Easily extract audio from HDMI sources for integration with external sound systems.
  • Achieve high-resolution audio output with multiple format support via HDMI.
  • Utilize RS-232 control for seamless integration into existing control systems.
  • Perfect for live streaming, providing reliable audio and video signal processing.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$31.99

3 Year

$51.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research EMX-AMP Specifications

  • Video Standards

    DVI (single link)
    HDMI 1.4 video specifications including 12 bit color depth, 3D video and4Kat 30
    HDCP 1.1

  • Video Signal Type

    TMDS

  • Video Connectors

    2x Locking HDMI

  • Video Resolutions

    DVI signal VGA (640x480) through WUXGA (1920x1200)
    HDTV signal 480i through 4K at 30 Hz

  • Audio Formats

    HDMI Embedded Audio including: LPCM (32-192kHz sample rate)

  • DDC

    DDC from HDMI receiver in the EMX-AMP to the source and from HDMI sink to the HDMI transmitter in the AMP. DDC supports EDID management and HDCP handshake

  • CEC

    Pass-Thru

  • RS-232

    2x RS-232 Ports (3 position screw terminal for each)
    RS-232 IN Baud Rate: 9600, N, 8, 1
    RS-232 OUT Baud Rate: Configurable at 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200
    Output factory default is 9600, N, 8, 1

  • USB

    1x Mini-B

  • Encoder

    3 Terminal, 24 Detent, 15 Position Gray Code (Rotary Encoder is optional)

  • Power Supply

    100 VAC to 240 VAC, 47-63 Hz, External; 18 VDC,5A (Model: 511-PSD1850APL06)

  • Temp / Humidity

    Storage: '-40 to 185 deg. F / -40 to 85 deg. C
    10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C
    10% to 90%, non-condensing

  • Typical Consumption

    EMX-AMP
    ON (Video Only no audio output): 500 mADC
    ON (100% Audio volume): 3.25 ADC
    OFF: 100 mADC

  • Cooling

    Convection

  • Enclosure type

    Metal (Steel)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Dimensions (H x W x D)

    1.25 x 7 x 4.3" / 31.75 x 177.80 x 109.22mm (Depth excludes connectors)

  • Weight

    Amplifier 10oz / 283.49g

About Hall Research EMX-AMP

Are you seeking an advanced, high-quality solution for your audio and video needs Look no further than the EMX-AMP 4K HDMI Audio Extractor with Audio Amplifier and RS-232 Control. This sophisticated device, designed by the reputable Hall Research, is an all-in-one solution that efficiently combines an HDMI audio extractor, audio amplifier, and RS-232 control.

This reliable device is equipped with a built-in 50-watt audio amplifier, allowing for a direct connection of 8-ohm speakers. It also features an additional line-level stereo audio input that can be seamlessly mixed with the HDMI audio. The volume can be conveniently controlled using front panel buttons, RS-232 commands, or an external rotary digital encoder.

The EMX-AMP also boasts an independent RS-232 output port, typically used to control the power on/off state of the TV or video projector connected to its output. It offers full EDID management with the ability to learn, download, upload, emulate, or pass-thru the EDID from the connected display.

A user-friendly USB port is featured on the front panel, allowing you to configure the device operation via a free Windows GUI available from the Downloads tab. The EMX-AMP can pass commands from its RS-232 input to the RS-232 output, and it has the ability to store user-defined ON and OFF commands for controlling devices connected to its RS-232 output.

The stored RS-232 commands can be triggered automatically based on detecting HDMI input or manually by user command (RS-232) or contact closure. An IP-enabled version, the EMX-I-AMP, adds a Telnet and WebGUI, giving you the ability to control the device through a PC or smartphone using the same commands as the serial interface.

In summary, the EMX-AMP 4K HDMI Audio Extractor with Audio Amplifier and RS-232 Control is a versatile, efficient, and reliable choice for professional audio and video applications.

Hall Research EMX-AMP Features

  • 4K HDMI audio extractor with EDID management
  • Built-in 50 watt audio amp for direct connection to 8 Ohm speakers (25 watts/channel)
  • Audio input for connecting line-level inputs (e.g. wireless microphones)
  • Control via, front panel, RS-232, digital pot (rotary encoder)
  • HDMI Ducking (when Line input is detected, HDMI sound volume in the mix is automatically lowered)
  • Primary RS-232 port for device control
  • Secondary RS -232 port for auxiliary device control
  • Store separate ON /OFF RS-232 commands for the auxiliary devices
  • Supports HDMI, DVI, HDCP, 3D and Deep color
  • Stereo or Mono output
  • Priority Paging Sensor input (for automatically muting of the audio output)
  • Compact, Rugged, Reliable and Economical

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Enhance your audio experience with this 4K HDMI audio extractor and amplifier.
  • Enjoy stable streaming with low latency thanks to this device's robust design.
  • Easily extract audio from HDMI sources for integration with external sound systems.
  • Achieve high-resolution audio output with multiple format support via HDMI.
  • Utilize RS-232 control for seamless integration into existing control systems.
  • Perfect for live streaming, providing reliable audio and video signal processing.

What's in the box:

  • Hall Research EMX-AMP 4K HDMI Audio Extractor with Audio Amplifier
  • Power Supply
  • Power Cord
  • Type A to Mini-B USB cable
  • 4x Position Screw Terminal Strip
  • 9x Position Screw Terminal Strip
  • Manual
  • Hall Research 3 Year Limited Warranty
