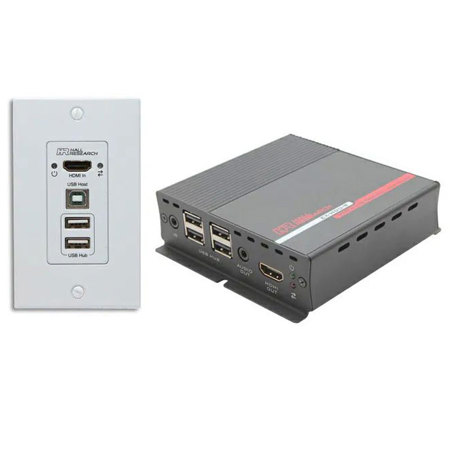

Hall Research EX-HDU-IP Audio, Integrated Control and IP Extender Kit for HDMI and USB Extension on CAT6 Cable

SKU: HREXHDUIP MFR: EX-HDU-IP
Earn VIP Reward Points

Key Features

  • Extend HDMI and USB signals over CAT6 cable with this Hall Research KVM extender kit.
  • Enjoy high-quality video up to 1080p60 with this HDMI KVM extender for clear visuals.
  • Use the integrated USB hub to connect multiple devices with this versatile KVM solution.
  • Control your system remotely with RS232 and IR pass-through via this KVM extender kit.
  • Easily manage audio with the 3.5mm stereo output on this advanced KVM receiver unit.
  • Mounting flanges included to secure your KVM equipment for a stable, reliable setup.
See More Product Details
Special Order?Estimated to Ship: 10/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Hall Research EX-HDU-IP Specifications

  • Video Standards

    DVI (Single Link)
    HDMI 1.4
    HDCP 1.1

  • Signal Type

    TMDS

  • Ports

    Transmitter:
    Input Ports: 1x HDMI, 1x USB 2.0 (Type B)
    Output Ports: 1x RJ45, 2x USB 2.0 (Type A)

    Receiver:
    Input Ports: 1x RJ45, 4x I/O (Relay)
    Output Ports: 1x HDMI, 1x 3.5mm Audio, 1x IR
    RS232 Port: 1x DB9 Male
    4x Type A USB hub port Extension
    1x Mini-B USB for configuration
    IP/LAN Port

  • Receiver Baud Rate

    2400-115200bps

  • Receiver Audio

    HDMI Stereo 2-channel

  • Resolutions

    DVI - VGA (640x480) thru WUXGA (1920x1200)
    HDTV - 480p thru 1080p60
    (no interlaced support)

  • USB Standards

    Compatible with USB 2.0 and all previous USB standards and data rates.

  • Audio Format

    LPCM 2 Channel Audio (32-192kHz sample rate)

  • Cooling

    Convection

  • Enclosure

    Metal (Steel)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Temperature/Humidity

    Storage: -40 to 158 deg. F (-40 to 70 deg. C) / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F (0 to 50 deg. C) / 10% to 90%, non-condensing

  • Power Supply

    100 to 240 VAC, 47-63 Hz, External; 12VDC

  • Typical DC

    12 VDC, 2.0 A Power Supply

  • Current Draw

    Approx. 300-650 mADC depending on Number of connected USB devices

  • Dimensions (HxWxD)

    Transmitter: 2.60 x 1.30 x 1.80" (6.60 x 3.30 x 4.57cm)
    Receiver: 1.18 x 4.13 x 4.57" (3.00 x 10.49 x 11.61cm)
    Depth includes mounting flanges

  • Weight

    Transmitter: 0.75 lbs (0.34kg)
    Receiver: 1.20 lbs (0.54kg)

About Hall Research EX-HDU-IP

The EX-HDU is used to extend HDMI video and USB data on a single Cat6 cable up to 200 ft (60 meters). HDMI audio is extracted and is provided both as analog stereo and multi-channel digital. The EX-HDU can also be used to control other equipment by providing programmable contact closure I/O, RS-232 output, IR output and LAN interface with internal WebGUI and IP control. The EX-HDU extender consists of an EX-HDU-WP single-gang wall plate transmitter and an EX-HDU-R-IP receiver. They connect using standard CAT5e/6 UTP cabling up to 200 feet (60 Meters) long. The wall-plate Sender gets its power from the Receiver via the same UTP cable and does not need a separate power supply.

For convenience, the wall plate features a USB hub with two USB ports for connection of USB devices. The plug-and-play extender is compatible with all PCs, MACs and Android Tablets and does not require driver installation. Simply plug the PC's HDMI and USB ports to the sender and make them available at the remote receiver. The Receiver provides HDMI video output, stereo audio output, 4 USB ports, IR output and a terminal strip that has RS-232 output plus 4 programmable digital I/O ports. A mini-USB port is also provided for configuration upload from a PC for cases where the Receiver is used also as a control system. Receiver with IP connectivity is the model EX-HDU-R-IP. It provides an ETHERNET port for control via IP commands or internal webpage.

Users can upload RS-232 commands to the EX-HDU to control other equipment such as turning a projector on and off. Commands can be triggered automatically by detecting video or manually via the internal WebGUI or by sensing open and close contact events on the I/O ports. For example, a simple toggle switch can be connected remotely to activate RS-232 commands for turning a projector on and off. The I/O ports can be configured to act as INPUTS or OUTPUTS. When an I/O port is configured as OUTPUT, it can trigger relays, for example to lower or raise a motorized projector screen.

Hall Research EX-HDU-IP Features

  • Extends HDMI + USB 2.0 to 200 ft (60 m) on one Cat 6 cable
  • Supports HDTV resolutions to 1080p 60 Hz
  • Wall plate sender has 2-port hub for connection to USB devices to the host PC
  • Receiver provides HDMI, 4 USB ports, RS-232 for display control, contact closure I/O, and Stereo Audio outputs
  • Perfect for Interactive displays, Soft CODECs, and KVM extension
  • Wall plate does not require separate power supply
  • Receiver is available with IP and WebGUI control

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend HDMI and USB signals over CAT6 cable with this Hall Research KVM extender kit.
  • Enjoy high-quality video up to 1080p60 with this HDMI KVM extender for clear visuals.
  • Use the integrated USB hub to connect multiple devices with this versatile KVM solution.
  • Control your system remotely with RS232 and IR pass-through via this KVM extender kit.
  • Easily manage audio with the 3.5mm stereo output on this advanced KVM receiver unit.
  • Mounting flanges included to secure your KVM equipment for a stable, reliable setup.

What's in the box:

  • Hall Research EX-HDU-WP Decora Wallplate Transmitter
  • 2x Screws
  • 4-Position Terminal Strip
  • Type A to B USB Cable
  • EX-HDU-R-IP Receiver
  • 12V DC Universal DC Power Adapter
  • 2x 6-Position Terminal Strip
  • Type A to Mini-B USB Cable
  • User's Manual
  • Hall Research 3 Year Limited Warranty
