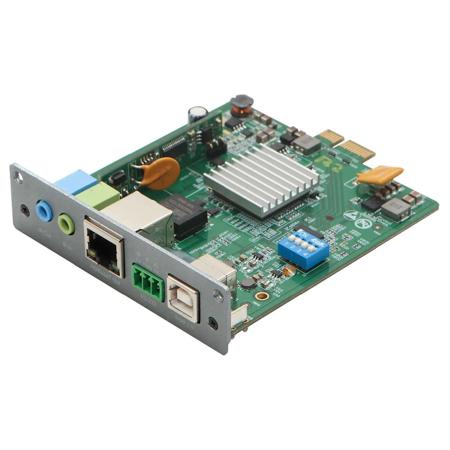

Hall Research EXP-HDBT3-TRX100 HDBaseT Transmitter Expansion Card for EMCEE200 Presentation Switcher

SKU: HREXPBT3TRX1 MFR: EXP HDBT3-TRX100
Earn VIP Reward Points

Key Features

  • Extend your presentations with this HDBaseT Transmitter, offering stable signal transmission.
  • Enjoy high-resolution video up to 4K/60Hz with this transmitter expansion card for EMCEE200.
  • Experience low latency video using this transmitter's HDBaseT connectivity for seamless streams.
  • Set up is easy; this expansion card provides a durable build for long-lasting performance.
  • Control devices remotely via RS-232; this transmitter supports multiple baud rates.
  • Power your devices with POH; this transmitter expansion card supports 802.3af POH standard.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research EXP-HDBT3-TRX100 Specifications

  • Video

    DVI (single link)
    HDMI 1.4 and HDMI 2.0b including 12 bit color depth, 3D video and HDCP 1.4/2.2

  • Resolutions

    DVI signal - VGA (640 x 480) thru WUXGA (1920 x 1200)
    HDTV signal 480p through 4K 60 Hz 4:4:4

  • Connectors

    1x Terminal block 3P RS232
    1x 3.5 mm IR IN
    1x 3.5 mm IR OUT
    1x USB 2.0 Tab B
    1x RJ45 HDBT

  • Audio Formats

    LPCM 2CH Audio (32, 44.1 and 48 KHz sample rate)
    Digital Audio multi-channel 2.0, 5.1, 7.1

  • RS-232 Signals

    1x RX, TX and GND on Terminal Strip
    RS-232 Baud Rate: 115200, N, 8, 1

  • USB

    1x USB-B Host port - USB 2.0/1.1 compatible

  • IR

    1x 3.5mm IR Receiver: Tip= IR signal, Ring = GND , Sleeve= V+
    1x 3.5mm IR Emitter: Tip= IR signal, Sleeve= GND

  • POH Voltage

    48VDC PSE

  • POH Standard

    802.3af POH

  • POH Class

    class 3 13.5W

  • Temp/Humidity

    Storage: -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)/10% to 90% non-condensing
    Operating: +32 to +122 Degree F (0 to +50 Degree C)/10% to 90%, non-condensing

  • Enclosure Type

    Aluminum Faceplate

  • UPC Code

    656750712573

About Hall Research EXP-HDBT3-TRX100

With the EXP-HDBT3-TRX100 HDBaseT Transmitter Expansion Card, you can enhance the functionality of your EMCEE200 Presentation Switcher. This high-quality and durable expansion card is specifically designed to provide an additional mirrored output to the EMCEE200, ensuring seamless integration and compatibility.

Incorporating innovative HDBaseT technology, the TRX100 is capable of transmitting high-definition video and audio signals over long distances. It extends HDMI 2.0, Bi-Directional IR, and USB 2.0, and transmits Power over Ethernet (PoE) over a single CAT6A cable. This reliable and user-friendly expansion card can transmit signals via HDBaseT 3.0 up to a remarkable distance of 90 meters (295 ft), maintaining the integrity of the video quality even when the transmitter and receiver are far apart.

Ideal for professional presentations, the EXP-HDBT3-TRX100 HDBaseT Transmitter Expansion Card is a valuable addition to your EMCEE200 Presentation Switcher, offering enhanced audio and video transmission capabilities.

Hall Research EXP-HDBT3-TRX100 Features

  • For use with EMCEE200 presentation switcher
  • Extends HDMI 2.0, Bidirectional IR, RS-232 and transmits PoE over single CAT-6A cable via HDBaseT 3.0 up to 90m 295'
  • A second HDMI input allows for additional connection of a local source device

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your presentations with this HDBaseT Transmitter, offering stable signal transmission.
  • Enjoy high-resolution video up to 4K/60Hz with this transmitter expansion card for EMCEE200.
  • Experience low latency video using this transmitter's HDBaseT connectivity for seamless streams.
  • Set up is easy; this expansion card provides a durable build for long-lasting performance.
  • Control devices remotely via RS-232; this transmitter supports multiple baud rates.
  • Power your devices with POH; this transmitter expansion card supports 802.3af POH standard.

What's in the box:

  • Hall Research EXP-HDBT3-TRX100 HDBaseT Transmitter Expansion Card
  • Hall Research 3 Year Limited Warranty
