Hall Research EX-VU1 HDMI & USB Single Gang Wall-Plate Extender with Receiver

From professional AV installations to sophisticated home theater systems, the EX-VU1 HDMI & USB Single Gang Wall-Plate Extender with Receiver is an essential solution for extending HDMI video and USB data over a single Cat6 cable for distances up to 100 feet (30 meters). This high-performance extender is expertly engineered to maintain signal integrity and compatibility with a wide range of interactive displays, including the renowned Promethean ActivPanel.

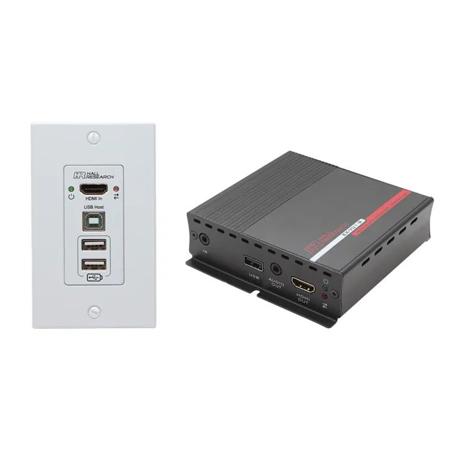

The EX-VU1 system is comprised of two main components: the EX-VU1-WP single-gang wall plate transmitter and the EX-VU1-R (or EX-VU1-R-IP) receiver. These devices are seamlessly connected using standard CAT5e/6 UTP cabling, ensuring a straightforward setup process. The wall-plate transmitter is conveniently powered directly from the receiver through the UTP cable, eliminating the need for an additional power supply and simplifying installation.

For enhanced audio capabilities, the EX-VU1 includes HDMI audio extraction, providing clear L/R stereo output at the receiver end. This feature allows for direct audio playback through your sound system, ensuring that both video and audio signals are delivered with exceptional quality.

The versatility of the EX-VU1 is further demonstrated by its comprehensive control options. It offers programmable contact closure I/O, RS-232 output, and IR output, allowing for the integration of various control systems. An optional LAN interface is available for advanced users, enabling IP control and access to an internal WebGUI for device management.

The wall plate itself is designed with user convenience in mind, featuring two USB charging ports to power devices without the need for additional adapters. The plug-and-play nature of the EX-VU1 means that it is universally compatible with PCs, MACs, and Android Tablets, requiring no driver installation. Simply connect your device's HDMI and USB ports to the transmitter, and access them remotely at the receiver.

The receiver unit provides a robust array of outputs, including HDMI video, stereo audio, and a single USB port. It also features a terminal strip with RS232 for display on/off control, four programmable digital I/O ports, and a mini-USB port for configuration uploads from a PC. This flexibility allows users to upload custom RS232 commands to the EX-VU1 for controlling external equipment, such as powering a display on or off. These commands can be automated based on video detection, manually triggered via the WebGUI, or activated through contact events on the I/O ports.

In scenarios where video presence is crucial, connecting an HDMI source to the wall plate prompts the receiver to issue an "on" command to the display, streamlining the user experience. Additionally, a simple toggle switch can be connected to remotely activate RS-232 commands, providing effortless control over interactive displays.

The EX-VU1 HDMI & USB Single Gang Wall-Plate Extender with Receiver is a comprehensive solution that offers reliability, control, and quality for extending HDMI and USB signals, making it an ideal choice for both commercial and residential applications where distance and control are paramount.
